QM543 Bench-Mounted High-Precision Thickness Gauge

The QM543 is a bench-mounted high-precision thickness gauge with a ±0.001 mm high-precision platform and an easy lift-cable operation, for precise thickness measurement of films, sheets and other materials.

Bench-Mounted
±0.001 mm Resolution
High-Precision Platform
Convenient Lift Cable
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
±0.001mmDisplay Resolution
200×150Platform Size (mm)
12.7/25.4/50.8Range Optional (mm)
Certifications
CE UL ISO 9001 RoHS FCC

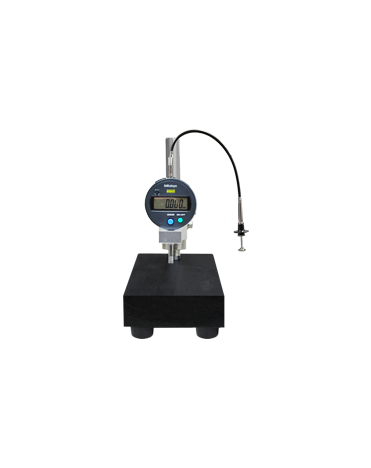

QM543 High-Precision Thickness Gauge

Key Product Features

Precision Measurement - peer-reviewed research confirms the critical role of thickness, moisture and density measurement in materials quality control

Bench Stand

Bench-stand stable measurement

High-Precision Platform

±0.001 mm high-precision platform

High Resolution

Display resolution ±0.001 mm

Optional Measuring Heads

Flat/round contact tips available

Easy Operation

Lift cable for easy raising

Bench-Mounted Thickness Gauge
Precise Thickness Measurement of Films & Sheets

The QM543 bench-mounted thickness gauge uses a bench-stand structure and a high-precision platform (±0.001 mm) to firmly mount the dial indicator on the stand, ensuring consistent measuring position and pressure every time. With an easy lift-cable operation, contact tips are available in flat (O10) and round (O5, O10) options to suit thickness measurement of films, sheets and other materials.

From lithium-battery separators to packaging film - film thickness uniformity directly affects product performance, and inconsistent hand-held pressure causes data scatter. The bench stand ensures consistent pressure and position every time, and the ±0.001 mm resolution meets precision film-thickness measurement needs.

Designed for film thickness measurement - bench stand plus dial indicator; ±0.001 mm precise thickness measurement.

  • ▪±0.001 mm resolution · Dial indicator
  • ▪Bench stand + high-precision platform · Repeatability
  • ▪Flat/round tips optional · Different materials
  • ▪Cable-lift operation · Easy sample change
  • ▪Separator/film/sheet · Thickness measurement

Core Parameters

High-Precision Thickness Gauge
Display Resolution±0.001mm
Gauge Range12.7 / 25.4 / 50.8 mm (optional)
Contact TipFlat (O10), round (O5, O10)
Platform Size200 × 150mm
Product TypeBench-Mounted Thickness Gauge

Product Highlights

  • Bench-Mounted
  • ±0.001 mm Resolution
  • High-Precision Platform
  • Convenient Lift Cable
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide
  • 1-Year Warranty, Lifetime Maintenance

Typical Applications & Applicable Standards

Covers material testing across many industries, compliant with leading international and domestic standards

A

Typical Applications

FilmSheetPaperFoilCoating Thickness
S

Applicable Standards

ISO 5084 (Thickness Measurement Reference)
ASTM D638
ISO 527
GB/T 1040
ASTM D412
ASTM D882
ISO 37

Technical Specifications

QM543 Detailed Technical Specifications

ParameterQM543
Product TypeBench-Mounted Thickness Gauge
Display Resolution±0.001mm
Gauge Range12.7 / 25.4 / 50.8 mm (optional)
Tip TypeFlat (O10), round (O5, O10)
Stand Platform Size200 × 150mm
Operation MethodLift-cable convenient raising
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

Resolution
The smallest thickness change the instrument can resolve and display; ±0.001 mm means a thousandth-of-mm reading
Bench-Mounted
The dial indicator is fixed on the stand, eliminating hand-held pressure fluctuation
Flat/Round Contact Tips
Flat suits sheets; round suits curved or soft-film surfaces
Platform
High-precision reference surface on which the specimen rests; flatness determines measurement repeatability

±0.001mm

Thousandth-mm resolution; fine thickness changes are discernible

Bench Stand

Consistent measuring pressure and position

Platform 200x150

Stable reference surface

Multiple Tip Options

Flat/round for multiple materials

Easy Operation

Cable lift reduces raising effort

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.
