Elmendorf Tear Precise, Reliable Testing

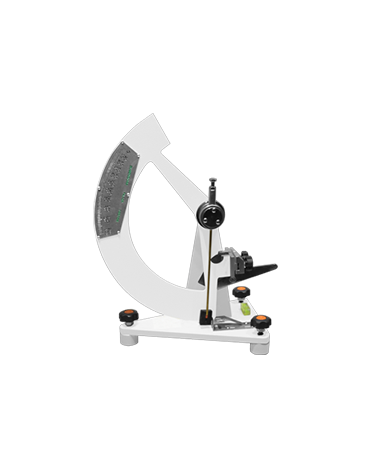

QM137 Elmendorf Tearing Tester

The QM137 measures the tear strength of paper, paperboard, textiles and leather, quantifying tear work by the pendulum energy-loss method - a quality-control instrument for paper packaging. Designed and made by QMESYS in Korea, compliant with international standards and exported to 90+ countries.

The pendulum is released at the standard 70° angle and the tear energy loss is recorded instantly; dual ranges of 0~3200 g / 0~6400 g are selected by material, with good repeatability.

Specimens 66×100 mm with quick one-handed clamping; a light, compact bench-top design compliant with ASTM D1424 / D1922 / ISO 1974 tear methods.

Select the range by material
Light & Compact
Versatile Sampling Tooling
One-Touch Clamp
Complies with ASTM D 1424, D 1922 and ISO 1974
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
70° Swing Angle
66×100mm Specimen Size
Dual Range 0~3200/6400g
Certifications
CE UL ISO 9001 RoHS FCC
QM137 Elmendorf tearing tester

Key Product Features

Bursting & tearing - authoritative research confirming the key role of burst/tear strength evaluation for paper, film and paperboard.

Pendulum Energy Method

The energy lost while tearing the specimen from a set angle is recorded instantly to measure tear strength.

Range by Material

Select the energy range by specimen material; 0~3200 g / 0~6400 g dual ranges cover different materials.

70° Swing Angle

The pendulum is released at the standard 70° angle; tear-energy measurement follows international methods.

Light & Compact

A light, compact bench-top size that is easy to place on a lab bench and convenient to move.

One-Hand Clamp + Versatile Tooling

Quick one-handed clamping; versatile sample tooling adapts to different specimens.

Elmendorf Tear
Tear Resistance of Paper & Film

The QM137 Elmendorf tearing tester records the energy loss the instant a pendulum released from 70° tears the specimen, measuring the tear strength of paper, paperboard, textiles, leather and film. Measurement range 0~3200 g / 0~6400 g, specimen size 66×100 mm, in a light, compact design.

From packaging paper to Li-ion separators, from textiles to film labels - a material's tear resistance directly affects product reliability and durability in use. The Elmendorf method is the internationally recognized standard for tear-strength testing.

Designed for tear-resistance evaluation of film and paper - the Elmendorf pendulum method for precise tear-energy measurement.

  • ▪Elmendorf pendulum method · international standard
  • ▪0~3200 g / 6400 g · dual range optional
  • ▪Paper / textile / leather / film · multi-material
  • ▪70° swing angle · standard release
  • ▪Light & compact · one-hand clamp

Core Parameters

QM137
Product Type Elmendorf Tearing Tester
Measuring Range 0~3200g / 0~6400g
Specimen Size 66×100mm
Swing Angle 70°
Suitable For Paper / paperboard / textile / leather
Overall Dimensions 500×200×300mm

Product Highlights

  • Select the range by material
  • Light & Compact
  • Versatile Sampling Tooling
  • One-Touch Clamp
  • Complies with ASTM D 1424, D 1922 and ISO 1974
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

Tear-strength measurement of paper, paperboard, textiles, leather and more, compliant with international tear-test standards.

A

Typical Applications

Paper TearPaperboard TearTextile TearLeather TearPackaging Film TearTear ToughnessPendulum MethodPaper QC
S

Applicable Standards

ASTM D 1424 (Elmendorf tear)
ASTM D 1922 (film tear)
ISO 1974 (paper tear)
ASTM D638
ISO 527
GB/T 1040
ASTM D412

QM137 Technical Specifications
