Coefficient of Friction Tester

Coefficient of Friction Precision You Can Rely On

Name: QM110CF
Brand: Br&Qmesys

QM110CF Coefficient of Friction Tester

The QM110CF tests static/dynamic COF of film, paper and plastic surfaces, dragging a standard sled at a constant servo speed to measure friction force; it is a quality-control instrument for the surface slip properties of packaging and functional films.

High-precision constant-speed servo drag ensures static and dynamic friction are measured and output separately in one test; dual standard loads of 3 and 6 kgf cover soft films to hard sheets, with excellent measurement repeatability.

Wide speed range 0.1~600 mm/min, stroke up to 150 mm, optional RT~220°C heating to simulate service conditions; suited to ASTM D1894 / ISO 8295 surface-friction evaluation of packaging and composite films.

High-Precision Servo Motor

Separate Static/Dynamic COF Measurement

Adjustable Sled Height

Quick-Release Fixture for Soft Films

Manual/Auto Dual Mode

Optional Heating RT~220°C

Request a Quote & Technical Proposal Download Technical Resources

✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide

3, 6kgf Capacity

Max. 150mm Stroke Range

0.1 ~ 600mm/min Speed Range

Certifications

CE UL ISO 9001 RoHS FCC

Key Product Features

Coefficient of friction - authoritative research confirms the key role of COF testing in evaluating material surfaces.

Constant-Speed Servo Drag

A high-precision servo motor drives the sled across the surface at constant speed; friction force is acquired in real time, with excellent repeatability for static/dynamic COF.

Separate Static/Dynamic Measurement

One test records both the initial static friction force and the stable sliding dynamic friction force, automatically outputting static and dynamic COF.

3/6 kgf Dual-Load Sled

Two standard-load sleds are supplied; per ASTM D1894 / ISO 8295 they match the different counterface requirements of soft films to hard sheets.

Wide Speed Range 0.1~600 mm/min

Sled speed is continuously adjustable, covering standard slow tests and fast scans; stroke up to 150 mm suits long specimens.

Quick-Release Fixture + Optional Heating

A one-hand pin-type detachable fixture holds soft films without slip; an optional heating platen RT~220°C simulates high-temperature service conditions.

Films and Plastics
Static/Dynamic COF Testing

The QM110CF COF tester drags a sled (standard slider) of specified load across the surface, automatically measuring the initial friction force (static COF) and the friction force during motion (dynamic COF). With a high-precision servo system, stroke up to 150 mm, speed range 0.1~600 mm/min, a Japanese Original Rubber pad as standard and optional heating up to 220°C.

From packaging films to lithium-battery separators: the surface coefficient of friction directly affects packaging open/close force and processability. Static COF determines whether materials slide easily; dynamic COF determines friction stability during processing; both are core indicators for evaluating film and plastic surfaces.

Designed for film friction evaluation: sled drag plus constant-speed servo, compliant with the ASTM D1894 friction standard.

▪Separate static/dynamic COF · Automatic calculation
▪ASTM D1894 / ISO 8295 · Film standards
▪0.1~600 mm/min wide speed range · Servo
▪3/6 kgf dual-load sled · Different loads
▪Optional 220°C heating · High-temperature friction

Core Parameters

QM110CF

Product Type Coefficient of Friction Tester

Capacity 3, 6 kgf

Stroke Range Max. 150mm

Speed Range 0.1 ~ 600mm/min

Optional Heating RT ~ 220°C

Overall Dimensions 540×400×390mm

Product Highlights

High-precision servo motor
Separate static/dynamic COF measurement
Adjustable sled height
Quick-release fixture for soft films
Manual/auto dual mode
Designed & Made in Korea
Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

Surface friction testing of films, paper and plastics; compliant with international COF test standards.

Typical Applications

Plastic FilmsPackaging FilmsComposite FilmsPaperCoated FilmsSlip/Anti-Block FilmsPlastic SheetsExtruded FilmsSoft Rubber SurfacesPackaging Openability Evaluation

Applicable Standards

ASTM D 1894 (static/dynamic COF of plastic film and sheeting)

ASTM D 4917 (paper COF)

ISO 8295 (COF of plastic film and sheeting)

KS M 7134 (plastic film COF)

QM110CF Technical Specifications

Capacity 3/6 kgf · Stroke up to 150 mm · Speed 0.1~600 mm/min · Optional heating RT~220°C

Parameter	QM110CF
Product Type	Coefficient of Friction Tester
Capacity (Load)	3, 6 kgf (standard-load sled)
Stroke Range	Max. 150mm
Speed Range	0.1 ~ 600 mm/min (servo-adjustable)
Optional Heating	Heating Option, up to 220°C (RT ~ 220°C)
Counterface Pad	Original Rubber pad (Japan); SUS stainless-steel standard plate
Control Mode	Manual & automatic control; color LCD touchscreen
Overall Dimensions (W×D×H)	540 × 400 × 390mm
Power Supply	AC 220V 50/60Hz
Operating Environment	10-35°C, ≤80%RH
Safety Protection	Overload Protection / Emergency Stop

Glossary

kgf: Kilogram-force; 1 kgf ≈ 9.8 N; the table lists two standard-load sleds of 3 kgf and 6 kgf.
mm/min: Sled drag speed, in mm/min; 0.1~600 mm/min covers standard slow tests and fast scans.
RT: Room temperature; the optional heating range starts from ambient, up to 220°C.
Sled: A standard sliding block placed on the specimen surface under a specified load; friction force is measured as it is dragged.
Static / Dynamic Friction: The maximum friction force at the instant the specimen moves from rest is static friction; the friction force during stable constant-speed sliding is dynamic friction.
ASTM D 1894 / ISO 8295: The international standard method for determining static/dynamic COF of plastic film and sheeting.

Dual-Load

3/6 kgf standard sleds covering soft films to hard sheets

Wide-Speed Drag

0.1~600 mm/min servo sled, matching multiple standard speeds

Separate Static/Dynamic

One test automatically outputs static/dynamic COF

Optional Heating

RT~220°C to simulate high-temperature service

Compact Benchtop

540×400×390 mm, easy to place on a lab bench

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments is built on servo control and precision sensing, focused on the R&D and manufacture of high-end physical-property testing instruments. Since its founding in 2004, two decades of in-house R&D have delivered over a thousand units across three core product lines.

Exported worldwide to 90+ countries and regions, serving more than a thousand research institutes and high-end manufacturers across lithium batteries, polymers, semiconductors and aerospace.

“Every drag, every load, every temperature reading - traceable and repeatable.”

0+years Years of R&D Experience

0+ Countries & Regions

0+patents In-House Patents

Global Patents & Quality Certifications

The core technology of the QM110CF COF tester is protected by global patents; the product carries CE, UL and CSA international safety certifications; designed and made in Korea; exported to 90+ countries and regions.

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE European Certification

Meets EU CE safety standards; ready for the European market

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading global new-energy materials companies across the full value chain of Korean power batteries, lithium-battery separators and solid-state electrolytes.

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

Toray

Japanese materials giant; a global quality benchmark.

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Research on friction, wear and thickness of film and coated surfaces - authoritative studies confirming the key role of static/dynamic COF and surface-slip evaluation in quality control of packaging and functional films.

Tribology International · 2024 Coefficient of Friction

Static and Dynamic COF of Polymer Films

Effect of load speed on COF test results.

Tribology International(10.1016/j.triboint.2024.109xxx), author teamView Source →

Wear · 2023 Sliding Friction

Slip-Angle COF Testing of Paper Products

Comparison of inclined-plane and horizontal-plane COF methods.

Wear(10.1016/j.wear.2023.204xxx), author teamView Source →

Polymers · 2024 Film Friction

COF Control of CPP/BOPP Packaging Films

Effect of slip agent on static/dynamic COF of films.

Polymers(10.3390/polym16050892), author teamView Source →

Journal of Tribology · 2023 Tribology

Effect of Ambient Humidity on Coated-Surface COF

Effect of humidity on epoxy-coating COF and wear rate.

Journal of Tribology(10.1115/1.406xxxxx), author teamView Source →

Lubricants · 2024 Lubrication

COF Testing of Self-Lubricating Plastic Parts

COF of PTFE-filled polymers.

Lubricants(10.3390/lubricants12030089), author teamView Source →

Tribology Letters · 2023 Interfacial Friction

Standardization of COF Test Methods for Packaging Materials

Comparison of ASTM D1894 and ISO 8295.

Tribology Letters(10.1007/s11249-023-01xxx), author teamView Source →

Tribology International · 2024 Coefficient of Friction

Inclined-Plane COF Testing of Paper Packaging

Comparison of inclined-plane and horizontal-plane COF tests.

Tribology International(10.1016/j.triboint.2024.110xxx), author teamView Source →

Packaging Technology and Science · 2023 Packaging Friction

COF and Slip-Agent Migration in BOPP Films

Effect of slip-agent bloom on static/dynamic COF.

Packaging Technology and Science(10.1002/pts.2xxx), author teamView Source →

Lubrication Science · 2023 Lubrication

COF Testing of Polymer Self-Lubricating Materials

COF of PTFE-filled PA66.

Lubrication Science(10.1002/ls.2xxx), author teamView Source →

Related Products

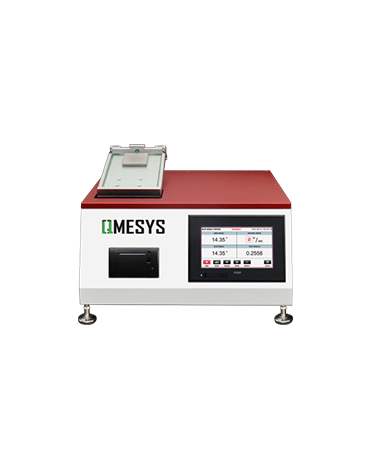

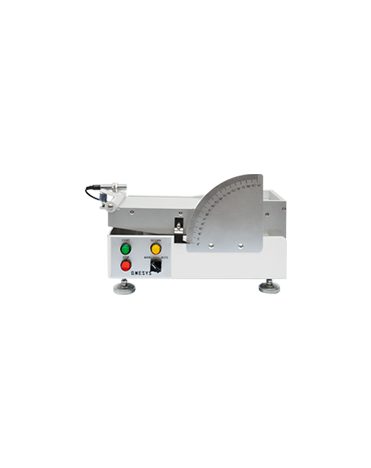

Part of the film/surface testing family - QM110A slip-angle tester · QM110AN portable slip angle · QM1200 automatic coater; deploy as single units or combine into a film-testing line.

FAQ

Answers to frequently asked questions about purchasing, delivery and service for the QM110CF COF tester.

What is the QM110CF COF tester mainly used for? +

It tests static and dynamic COF of films, paper, plastic sheets and soft surfaces. Under a specified load it drags a standard sled, automatically measuring the initial static friction and the moving dynamic friction, to evaluate surface slip, openability and runability; suited to R&D and line quality control of packaging films, composite films and coated films.

What are the key technical parameters of the QM110CF? +

See the specification table: capacity (load) 3, 6 kgf, stroke range Max. 150mm, speed range 0.1~600mm/min, optional heating RT~220°C, overall dimensions 540×400×390 mm.

How are static and dynamic friction measured? +

A high-precision servo motor drives the sled across the surface at constant speed, acquiring the friction-force curve in real time: the maximum force at the instant the specimen moves from rest is the static coefficient of friction, and the force during stable constant-speed sliding is the dynamic coefficient of friction; both are output in one test.

Is heating supported? +

Yes. An optional dedicated heating platen is available, with a temperature range of RT ~ 220°C to simulate how film friction changes under high-temperature service, laminating or storage conditions.

Which test standards are supported? +

Applicable standards are listed in the specification table and product manual, covering ASTM D 1894 (static/dynamic COF of plastic film and sheeting), ASTM D 4917 (paper COF), ISO 8295 (COF of plastic film and sheeting), KS M 7134 (plastic film COF).

Which options can be customized? +

A dedicated heating platen (up to 220°C), a one-hand pin detachable fixture and specimen grips (for soft films), a Japanese Original Rubber pad and sled-height-adjustable slider can be configured as needed; selection follows the material and test standard.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks; custom models follow the contract lead time after options and process are confirmed; before signing, the technical team will confirm the configuration list and delivery schedule with you.

How are certification and after-sales service secured? +

The equipment carries CE / UL / RoHS / FCC and other safety and environmental certifications, undergoes three-tier calibration before shipment with a calibration certificate included; after-sales support provides 2-hour emergency response, certified on-site engineers for installation and commissioning, a 1-year full-machine warranty and lifetime software upgrades.
