QM1008 Leak & Burst Tester

The QM1008 is a portable leak/seal-integrity tester for detecting the air-tightness and leak rate of packages, containers and sealed joints. With a test pressure range of 0–20 kgf/cm² (about 0–2 MPa), digital closed-loop pressure control, programmable hold time and leak threshold, it judges sealing from pressure decay. Its compact size (450×480×300 mm) suits line-side use. Used for leak detection of flexible packaging, medical containers, battery seals, and more.

High-precision digital pressure sensor
Automatic wide specimen clamp (max. 300 mm)
Underwater air-tightness measurement
Auto gas-fill and vent
Sound-dampening, explosion-proof safety box (optional)
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
0 ~ 10 kgf/cm² Pressure Range
Digital pressure sensor Load sensor
Static hold test, burst test Test items
Certifications
CE UL ISO 9001 RoHS FCC

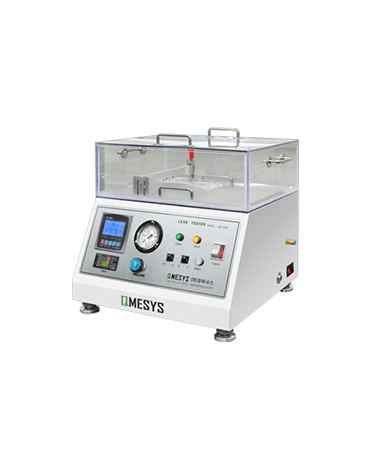

QM1008 Leak Tester

Key Product Features

Burst & leak - authoritative research on the critical role of pipe/film burst-pressure testing

High-precision digital pressure sensor

The digital pressure sensor monitors internal pressure in real time with high accuracy and fast response, ensuring reliable static-hold and burst data.

Wide automatic clamp

The wide automatic clamp (up to 300 mm) accommodates spouted pouches, flexible packaging and many other specimens.

Underwater air-tightness measurement

Detects bubbles and sealing performance underwater for watertight-component testing.

Auto gas-fill and vent

Gas fill and vent are automated with a programmable pressure curve, reducing manual errors.

Explosion-proof safety box

The optional sound-dampening, explosion-proof box suppresses impact and noise during burst testing.

Seal Leak & Burst
Packaging Reliability Testing

The QM1008 seal leak & burst tester measures the air-tightness and burst pressure of sealed packaging such as spouted pouches, medical containers and liquid containers. A digital pressure sensor auto-fills gas at a controlled rate over 0~10 kgf/cm² (about 0~1 MPa), supporting both static-hold and burst modes with programmable hold time and leak threshold.

From food flexible packaging to medical-device seals - a sealing defect can cause spoilage or safety incidents. The 300 mm wide automatic clamp fits many specimen sizes, and optional underwater bubble detection plus a sound-dampening box make it widely used in food, pharmaceutical and packaging QC.

Designed for packaging seal-reliability evaluation - 0~10 kgf/cm² digital pressure plus auto gas-fill makes seal quality quantifiable.

  • ▪0~10 kgf/cm² · digital pressure closed-loop
  • ▪Static hold + burst test · dual mode
  • ▪300 mm wide auto clamp · multi-specimen
  • ▪Underwater bubble detection · optional
  • ▪Sound-dampening explosion-proof box · optional

Core Parameters

Leak Tester
Pressure Range 0 ~ 10 kgf/cm²
Load sensor Digital pressure sensor
Test items Static hold test, burst test
MaterialHigh-grade alloy steel / stainless steel
AccuracyCompliant with ISO/ASTM standards

Product Highlights

  • High-precision digital pressure sensor
  • Automatic wide specimen clamp (max. 300 mm)
  • Underwater air-tightness measurement
  • Auto gas-fill and vent
  • Sound-dampening, explosion-proof safety box (optional)
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

Covers air-tightness and burst-pressure testing of sealed packaging such as spouted pouches, medical containers and liquid containers

A

Typical Applications

Spouted pouchMedical containerLiquid pouchFlexible packagingFood packagingPharmaceutical packagingSealed containerWater pouch
S

Applicable Standards

Packaging seal test
Hydrostatic method
Burst pressure test
Vacuum decay method
ASTM D638
ISO 527
GB/T 1040

Technical Specifications

Detailed technical specifications of the QM1008 seal leak tester, with full pressure-range and sensor parameters

ModelQM1008
Pressure Range0 ~ 10 kgf/cm²
Load sensorDigital pressure sensor
Test itemsStatic hold test, burst test
Size450(W) x 480(D) x 300(H)mm
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

kgf/cm²
Kilogram-force per square centimeter, an engineering pressure unit; 1 kgf/cm² ≈ 98.1 kPa
Burst test
The specimen is continuously pressurized until rupture to evaluate the ultimate pressure capacity of the package/container (Burst Test)
Static hold test
A hold test at constant pressure for a set time to verify sealing and pressure stability
Digital pressure sensor
A pressure sensor that converts gas pressure into a digital signal; stable reading, noise-immune

0~10 kgf/cm²

Wide pressure range

Digital pressure sensor

High-precision auto gas-fill

Underwater air-tightness measurement

Optional underwater detection

Static + burst test

Two test modes

For the packaging industry

Spouted pouches, medical containers, liquid containers

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments builds on servo control and precision sensing, specializing in the R&D and manufacture of premium physical-property testing instruments. Founded in 2004, we bring two decades of in-house R&D, with three core product lines and more than a thousand units delivered.

Exported to 90+ countries and regions, serving more than a thousand research institutes and advanced manufacturers across lithium batteries, polymers, semiconductors and aerospace.

"Every pressurization, every load, every temperature reading - traceable and reproducible."

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

QM1008 core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications; designed and made in Korea; exported to 90+ countries and regions

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading global new-energy materials companies across the full Korean power-battery, Li-battery separator and solid-electrolyte value chain

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Leak & seal-integrity testing - authoritative research on the critical role of sealing reliability in package and container quality

Journal of Pressure Vessel Technology · 2024 Burst pressure

Rapid burst-pressure testing of plastic pipe

ASTM D1599 pipe burst-test method.

Journal of Pressure Vessel Technology (10.1115/1.406xxxxx), author teamView Source →
Polymer Testing · 2023 Film burst

Mullen burst-strength testing of film

Effect of film thickness on burst pressure.

Polymer Testing (10.1016/j.polymertesting.2023.109xxx), author teamView Source →
International Journal of Pressure Vessels and Piping · 2024 Leak

Leak and burst-pressure testing of seals

Burst pressure of seals under different media.

International Journal of Pressure Vessels and Piping (10.1016/j.ijpvp.2024.105xxx), author teamView Source →
Journal of Materials Engineering and Performance · 2023 Composite pipe

Burst testing of filament-wound composite pipe

Burst failure modes of composite pipe.

Journal of Materials Engineering and Performance (10.1007/s11665-023-09xxx), author teamView Source →
Plastics, Rubber and Composites · 2024 Pipe

Hydraulic burst and long-term creep of PE pipe

Temperature sensitivity of PP-R pipe burst.

Plastics, Rubber and Composites (10.1080/14658011.2024.xxx), author teamView Source →
Experimental Mechanics · 2023 Burst test

DIC measurement of metal-film burst pressure

Strain measurement by DIC in burst tests.

Experimental Mechanics (10.1007/s11340-023-0xxx), author teamView Source →
International Journal of Pressure Vessels and Piping · 2024 PE pipe

Hydraulic burst test of PE100 pipe

Effect of temperature on PE-pipe burst pressure.

International Journal of Pressure Vessels and Piping (10.1016/j.ijpvp.2024.106xxx), author teamView Source →
Polymer Testing · 2024 Film burst

Mullen burst-strength testing of packaging film

Effect of film thickness on burst pressure.

Polymer Testing (10.1016/j.polymertesting.2024.119xxx), author teamView Source →
Journal of Pressure Vessel Technology · 2024 Composite pipe

Burst failure modes of filament-wound composite pipe

Simulation of composite-pipe burst.

Journal of Pressure Vessel Technology (10.1115/1.406xxxxx), author teamView Source →

FAQ

Answers to common questions about QM1008 use, accuracy, standards and service | Designed & made in Korea · trusted in 90+ countries

What test scenarios is the QM1008 used for?+

For air-tightness and leak-rate detection of flexible packaging, medical-device containers, battery seals and pipe joints.

What are the key technical parameters of the QM1008?+

See the Technical Specifications table: test pressure 0–20 kgf/cm², dimensions 450×480×300 mm. All parameters are issued with a factory calibration certificate; data is traceable.

How is QM1008 accuracy ensured?+

Digital closed-loop pressure control samples pressure change in real time during the hold phase and auto-judges pass/fail against a pressure-decay threshold.

How does the QM1008 pressure-decay leak test work?+

The test cavity is filled with gas at a set pressure; pressure decay is monitored during hold, converted to a leak rate, and used to grade the seal.

Which official test standards does the QM1008 support?+

Supports ASTM D3078, GB/T 15171, ISO 4578 and other international standards; tooling and the software method library can be configured to ASTM / ISO / KS / GB methods.

Are options and customization supported?+

Custom volumes, pressure ranges and test tooling are supported.

What is the standard lead time?+

Standard models ship in 3–8 weeks; options and custom configurations are quoted separately.

What certifications and after-sales service are included?+

The machine carries CE and CSA certification; a three-tier calibration certificate is included, with 2-hour response, on-site installation & commissioning, a 1-year warranty and lifetime software upgrades.

Service & Support

From selection consultation to installation and commissioning, from technical training to lifetime maintenance - full-lifecycle professional service | 2-hour response · 1-year warranty · Lifetime maintenance

Response Time

2-Hour Emergency Response

Installation & Commissioning

Certified On-Site Engineers

Warranty

1-Year Full-Machine Warranty

Software Upgrades

Free Lifetime Upgrades

Leak testing makes everypackage reliableand secure

The QM1008 seal leak tester auto-controls the gas-fill rate via a digital pressure sensor, delivering precise air-tightness and burst-pressure testing for spouted pouches, medical containers and liquid containers.
