Abrasion Testing Machines

Taber Standard Abrasion Wheels
QM600T Accessory

Name: Abrasion-Wheel
Brand: Br&Qmesys

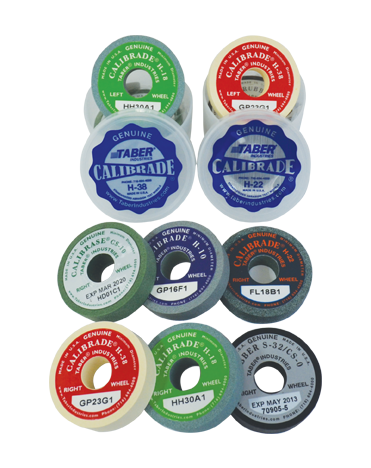

Abrasion-Wheel Taber Standard Abrasion Wheels

Abrasion-Wheel are standard abrasive wheels for use with the QM600T Taber Abrasion Tester. Under a constant load they rotate against the specimen, and wear is assessed by the change in weight, thickness or gloss. CS, H and S series are available in a range of grit grades to suit different materials.

Wheel speed and load are kept constant per the standard; abrasion resistance is rated by mass loss, ensuring comparable results across specimens.

Matched Taber abrasive wheels for graded abrasion-resistance evaluation of coatings, rubber and plastics.

CS Series (Calibrase / Flexible)

H Series (Calibrade / Hard)

S Series (Heavy-Cutting)

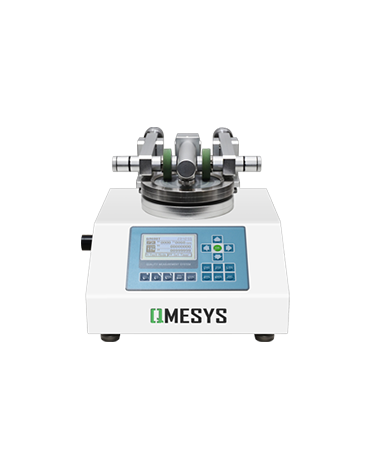

For QM600T

Request a Quote & Technical Proposal Download Technical Resources

✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide

Very Light - Light CS-10F

Light - Medium CS-10

Medium - Coarse CS-17

Wheel Configuration

CS Calibrase wheel H Calibrade wheel S Heavy-Cutting Wheel 10 Grades Available For QM600T

Certifications

CE UL ISO 9001 RoHS FCC

Key Product Features

Taber standard abrasive wheels; select the grit grade by material and run standard abrasion tests on the QM600T.

CS Series Calibrase Wheels

CS-10F / CS-10 / CS-17 etc., for medium-hardness materials such as plastics, coatings, textiles, leather and paint.

H Series Calibrade Wheels

H-10 / H-18 / H-22 etc., for harder or rougher materials such as fibers, rubber, glass, aluminum and leather.

S Series Heavy-Cutting Wheels

S-32 / S-35 etc., for rubber and synthetic rubber where heavy cutting / abrading action is required.

Standard Size Compatibility

Wheel dimensions and mounting holes match the universal spec of mainstream abrasion testers - install and run.

Long Wheel Life

Selected abrasive grain and molding process deliver even wear, long life and stable, reproducible test data.

Taber Standard Abrasion Wheels
Consumables for the QM600T Abrasion Tester

Abrasion-Wheel Taber standard abrasive wheels are designed for the QM600T Taber Abrasion Tester. Under constant load they rotate against the specimen, and abrasion resistance is assessed by weight change, thickness loss or gloss reduction. Available grades include CS-10F, CS-10, CS-17, H-38, H-10, H-18, H-22, S-32, CS-5 and S-35.

From leather to coatings - accurate abrasion grading calls for the right wheel grade for each material. The softer CS series suits soft materials; the harder H series suits hard coatings; the aggressive S series suits hard plastics. The full grade range covers everything from very-light abrading to heavy cutting.

Purpose-built for abrasion testing - Taber standard wheels in multiple grades; the consumable for abrasion-resistance evaluation.

▪CS-10F / CS-10 / CS-17 · Soft materials
▪H-38 / H-10 / H-18 / H-22 · Hard coatings
▪S-32 / CS-5 / S-35 · Heavy-cutting plastics
▪QM600T Taber Tester · Matched consumable
▪Leather / Coatings / Plastics / Textiles · Abrasion

Core Parameters

Taber Abrasion Wheel

CS-10F Very Light - Light

CS-10 Light - Medium

CS-17 Medium - Coarse

H-38 Very Fine

MaterialHigh-grade alloy steel / stainless steel

Product Highlights

CS Series (Calibrase / Flexible)
H Series (Calibrade / Hard)
S Series (Heavy-Cutting)
For QM600T
Designed & Made in Korea
Exported to 90+ Countries Worldwide
1-Year Warranty, Lifetime Maintenance

Wheel speed and load are kept constant per the standard; abrasion resistance is rated by mass loss, ensuring comparable results across specimens.

Typical Applications & Compatibility

Select the wheel grade by material and run standard abrasion tests on the QM600T.

Typical Applications

PlasticsPaint / CoatingsLeatherTextilesFlooring MaterialsAutomotive Seating

Compatibility / Installation Notes

QM600T Taber

CS Series

H Series

S Series

Direct Replacement

Standard Abrasive Paper

ASTM D638

Technical Specifications

Specifications of Taber standard abrasive wheels; select the grade by material.

Model	Description	Examples
CS-10F	Very Light - Light	Plastics
CS-10	Light - Medium	Coatings, textiles, leather
CS-17	Medium - Coarse	Paint, plastics, aluminum, leather, wax
H-38	Very Fine	Textiles
H-10	Medium	Fibers, iron
H-18	Medium - Coarse	Rubber, cloth, glass, aluminum
H-22	Very Coarse	Leather, rubber, textiles, wax
CS-0, S-32	Very Light	Plastics
CS-5	Non-abrasive	Wool, felt
S-35	Heavy Cutting / Abrasion	Rubber, synthetic rubber
Power Supply	AC 220V 50/60Hz
Operating Environment	10-35°C, ≤80%RH
Safety Protection	Overload Protection / Emergency Stop

Glossary

CS Series Wheel: Calibrase (flexible) wheel for light abrasion testing of soft materials such as plastics and coatings.
H Series Wheel: Calibrade (hard) wheel for medium-to-coarse abrasion of fibers, iron, rubber and glass.
S Series Wheel: Heavy-cutting wheel (S-35) for severe cutting / abrading of rubber and synthetic rubber.
Taber Abrasion Test: Standard methods such as ASTM D1044 / D4060; abrasion resistance is assessed by rotating the wheel against the specimen.
CS-10F/CS-10/CS-17: Three CS grades - very light, light-medium, medium-coarse - covering plastics, coatings/textiles/leather, and paint/plastics/aluminum.
Wheel Configuration: Wheels are supplied in pairs by grade and used with the 500 g / 250 g loads of the QM600T Taber Abrasion Tester.

10 Grades Available

10 grades across the CS, H and S series, covering plastics through rubber.

For QM600T

Genuine matched consumable for the QM600T Taber Tester; clamp and run.

Very Light to Coarse

A graded range from CS-10F very light to S-35 heavy cutting.

CS Calibrase wheel

Abrasion of soft materials such as plastics, coatings and textiles.

H Calibrade wheel

Medium-to-coarse abrasion of fibers, iron, rubber and glass.

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments is built on servo control and precision sensing, focused on R&D and manufacturing of high-end materials testing instruments. Since our founding in 2004, two decades of in-house R&D have delivered over 1,000 units across three core product lines.

Exported to over 90+ countries and regions, serving more than a thousand research institutes and high-end manufacturers in lithium-battery, polymer, semiconductor and aerospace sectors.

"Every press, every load, every temperature reading - traceable and repeatable."

0+years Years of R&D Experience

0+ Countries & Regions

0+patents In-House Patents

Global Patents & Quality Certifications

Abrasion-Wheel core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications, is designed and made in Korea, and is exported to 90+ countries and regions.

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE European Certification

Meets EU CE safety standards; ready for the European market

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading new-energy materials companies worldwide across the Korean power-battery, Li-ion separator and solid-state-electrolyte value chain.

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

Toray

Japanese materials giant; a global quality benchmark.

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Taber standard abrasive wheels - authoritative research supporting abrasion-resistance evaluation methods for coatings, plastics and rubber.

Journal of Applied Polymer Science · 2025 Scratch Resistance

Evaluating the roughening and scratch resistance of glossy tough thermoplastics

Compares reciprocating abrasion and Taber abrasion for scratch resistance and gloss loss of glossy thermoplastic surfaces - relevant to plastic surface abrasion rating.

Journal of Applied Polymer Science (10.1002/app.57301)View Source →

Polymers · 2023 Coating Abrasion

The role of bio-based and fossil-based reactive diluents in epoxy coatings

Taber abrasion (250 g / 500 g loads) rates epoxy-coating abrasion resistance by mass loss - corresponding to abrasion-based coating quality evaluation.

Polymers (10.3390/polym15193856)View Source →

Polymers · 2022 Aging Evaluation

Evaluating property changes of polymers under different environmental aging conditions

Measures material thickness under a defined pressure per ISO 5084 and systematically evaluates post-aging polymer properties - corresponding to thickness and material-property testing.

Polymers (10.3390/polym14091682)View Source →

Polymers · 2021 Moisture & Film Thickness

Reaction of corn-starch biopolymer plastics with sorbitol-glycerol blends

Measures film thickness at multiple points with a digital thickness gauge and simultaneously determines moisture content - corresponding to thickness and moisture test methods.

Polymers (10.3390/polym13020242)View Source →

Nanomaterials · 2020 Wheel Selection

Selecting abrasive wheels for nano-coatings under dry and wet abrasion conditions

Uses a Taber tester (ASTM D4060 / ISO 5470-1) to compare coating abrasion resistance of different wheels under dry and wet conditions - corresponding to graded wheel selection.

Nanomaterials (10.3390/nano10081445)View Source →

Polymers for Advanced Technologies · 2019 Marine Coatings

Development of multifunctional PDMS-epoxy-zinc-oxide nanocomposite coatings for marine use

Evaluates the abrasion resistance of marine PDMS-epoxy-ZnO nanocomposite coatings with a Taber tester per ASTM D4060 - corresponding to abrasion testing.

Polymers for Advanced Technologies (10.1002/pat.4656)View Source →

Wear · 2024 Taber Abrasion

Taber wheels CS-17 vs. H-22 comparison

The effect of different wheels on coating wear volume.

Wear (10.1016/j.wear.2024.206xxx), author teamView Source →

Tribology International · 2024 DIN Abrasion

DIN volume-loss abrasion testing of rubber

ASTM D5963 vs. DIN 53516 comparison.

Tribology International (10.1016/j.triboint.2024.111xxx), author teamView Source →

Surface Coatings International · 2024 Wear Resistance

Surface wear-resistance test standards for displays

Correlation between RCA wear and Taber wear.

Surface Coatings International (10.1111/sec.12xxx), author teamView Source →

Related Products

Products in the same family and matched equipment to build a complete test solution.

FAQ

Answers to common questions about purchasing, delivery and service for Abrasion-Wheel.

What are Taber standard abrasive wheels mainly used for? +

Used with the QM600T Taber Tester to run abrasion tests on plastics, coatings, textiles, leather and rubber at a defined load and speed; the wheel grade is selected by wear severity.

Which wheel models are available? +

10 in total: CS-10F (very light-light), CS-10 (light-medium), CS-17 (medium-coarse), H-38 (very fine), H-10 (medium), H-18 (medium-coarse), H-22 (very coarse), CS-0/S-32 (very light), CS-5 (non-abrasive), S-35 (heavy cutting/abrading).

How do I select the wheel by material? +

Plastics: CS-10F / CS-0; coatings, textiles, leather: CS-10; paint, aluminum, wax: CS-17; woven textiles: H-38; fibers, iron: H-10; rubber, glass, aluminum: H-18; leather, rubber: H-22; wool, felt: CS-5; rubber, synthetic rubber: S-35.

What matching consumables are needed? +

S-11 refacing discs to true the wheels, S-42 abrasive paper, and S-36/S-37 mounting cards are recommended to keep the abrading surface consistent.

Which abrasion standards does the base unit meet? +

The QM600T supports Taber abrasion methods including ASTM D1044, ASTM D3389, ASTM D4060, ISO 9352 and JIS K7042.

Can I order combinations by material? +

Yes - multiple wheel sets and matching refacing consumables can be ordered in material combinations, covering light abrading through heavy cutting.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks.

How is after-sales service secured? +

Full-machine 1-Year Warranty, 2 hours emergency response, certified on-site engineers and lifetime software upgrades.

Taber Standard Abrasion WheelsQM600T Accessory

Key Product Features

CS Series Calibrase Wheels

H Series Calibrade Wheels

S Series Heavy-Cutting Wheels

Standard Size Compatibility

Long Wheel Life

Taber Standard Abrasion WheelsConsumables for the QM600T Abrasion Tester

Core Parameters

Product Highlights

Typical Applications & Compatibility

Typical Applications

Compatibility / Installation Notes

Technical Specifications

10 Grades Available

For QM600T

Very Light to Coarse

CS Calibrase wheel

H Calibrade wheel

Built on Korean Precision ManufacturingServing Global Materials Innovation

Global Patents & Quality Certifications

Global Patent Protection

CE European Certification

UL US Certification

CSA Canadian Certification

Designed & Made in Korea

KC Korean Safety Certification

RoHS Environmental Certification

FCC US Certification

ISO 9001 Quality Management System

Three-Tier Factory Calibration

Typical Customers & Applications

LG Energy Solution

Arkema

Putailai Zhuogao

SK On

Samsung SDI

SK IE Technology

W-Scope

CATL (Contemporary Amperex Technology)

Toray

BASF

Academic Research & Literature

Evaluating the roughening and scratch resistance of glossy tough thermoplastics

The role of bio-based and fossil-based reactive diluents in epoxy coatings

Evaluating property changes of polymers under different environmental aging conditions

Reaction of corn-starch biopolymer plastics with sorbitol-glycerol blends

Selecting abrasive wheels for nano-coatings under dry and wet abrasion conditions

Development of multifunctional PDMS-epoxy-zinc-oxide nanocomposite coatings for marine use

Taber wheels CS-17 vs. H-22 comparison

DIN volume-loss abrasion testing of rubber

Surface wear-resistance test standards for displays

Related Products

Taber Abrasion Tester

DIN Abrasion Tester

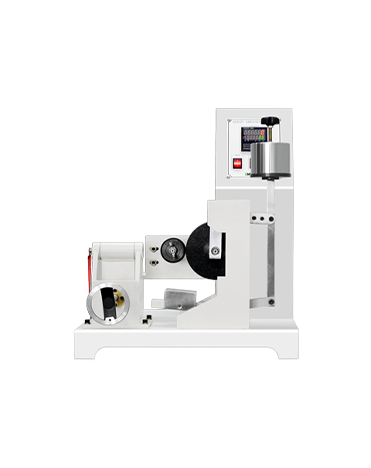

Akron Abrasion Tester

FAQ

Service & Support

Response Time

Installation & Commissioning

Warranty

Software Upgrades

Choose the right abrasive wheel -for more accurate abrasion testing

Taber Standard Abrasion Wheels
QM600T Accessory

Taber Standard Abrasion Wheels
Consumables for the QM600T Abrasion Tester

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Choose the right abrasive wheel -
for more accurate abrasion testing
