Notch Maker
Impact Testing Machines

Automatic, Precise Specimen Preparation Precise, Reliable Testing

QM700NA Standard Notch Automatic, Precise Specimen Preparation

The QM700NA is an automatic notch maker for preparing standard plastic impact specimens. Blade speed, specimen feed speed, cutting direction and number of cuts can be set by material properties to precisely machine V/U notches compliant with ASTM and ISO standards.

Automatic Cutting
Cutter Speed 5~3000 rpm
LM Guide Precision ±0.003 mm
Japanese-Made Carbide Cutter
Auto Return and Safety Door
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
5 ~ 3000 rpm Cutter Speed
± 0.003 mm Guide Resolution
Automatic Type Cutting Method
Certifications
CE UL ISO 9001 RoHS FCC

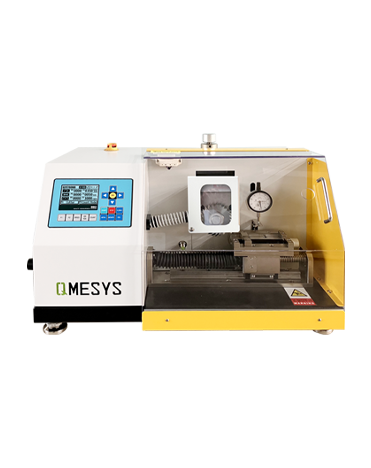

QM700NA Automatic Notch Maker

Key Product Features

The QM700NA is an automatic notch maker for preparing standard plastic impact specimens; blade speed, feed speed, cutting direction and number of cuts can be set by material properties.

High-Precision Guide

LM linear guide, resolution ±0.003 mm; uniform notches

Automatic Cutting

BLDC system control, speed 5~3000 rpm adjustable

Genuine Cutter

Japanese-imported carbide blades, V/U interchangeable

Auto Return

Automatic retract and stop after cutting; safety-door interlock

Vacuum Extraction

Automatic vacuum extraction keeps specimens clean

Automatic Notch Preparation
Batch Preparation of Impact Specimens

The QM700NA automatic notch maker prepares standard plastic impact specimens. Blade speed 5~3000 rpm, feed speed, cutting direction and number of cuts are settable. A high-precision LM guide (±0.003 mm) and Japanese-made carbide blades ensure notch-size consistency; automatic retract/stop and vacuum chip extraction keep batch notch geometry uniform.

From batch QC to R&D experiments: notch geometry precision directly affects impact-test data. Automatic cutting plus vacuum extraction makes notch dimensions identical on every specimen; high batch-preparation efficiency and repeatable data make it a standard professional-lab setup.

Designed for batch notch preparation: automatic cutting plus vacuum extraction; reproducible impact-specimen notch precision.

  • ▪5~3000 rpm adjustable · For different materials
  • ▪LM guide ±0.003 mm · High precision
  • ▪Automatic cutting + retract · Batch preparation
  • ▪Vacuum extraction · Clean specimens
  • ▪Izod/Charpy notches · Standards compliant

Core Parameters

Automatic Notch Maker
Cutter Speed 5 ~ 3000 rpm
Cutting Method Automatic Type
Guide Precision ± 0.003 mm
Cutter Material Japanese-Made Carbide
Applicable StandardsASTM D256, JIS K7110, ISO 179/180/294

Product Highlights

  • Automatic cutting
  • Cutter speed 5~3000 rpm
  • LM guide precision ±0.003 mm
  • Japanese-made carbide cutter
  • Auto return and safety door
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

Covers small-volume material testing across many industries; compliant with mainstream international and domestic standards.

A

Typical Applications

Plastic Impact SpecimensIzod Notched BarsCharpy Notched BarsPolymer LabsMaterials Testing CentersUniversity Research
S

Applicable Standards

ASTM D256
JIS K7110
ISO 179
ISO 180
ISO 294

Technical Specifications

Automatic precision notch machining; providing standard notches for Izod/Charpy impact specimens.

ParameterSpecification
Cutter Speed5 ~ 3000 rpm
Cutting ToolJapanese-made carbide blade
Cutting MethodAutomatic Type
Guide SystemLM guide (resolution ±0.003 mm)
Applicable StandardsASTM D256, JIS K7110, ISO 179/180/294
Overall Dimensions680(W) × 425(D) × 430(H) mm
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

Auto Notch Machine
A preparation device that automatically completes V-notch milling at set speed and feed.
5~3000rpm
Notch-cutter speed continuously adjustable; the best cutting parameters are chosen by material hardness and thickness.
LM-Guidance
Linear-guide slider system with ±0.003 mm movement resolution for precise notch-depth feed.
Auto Return/Stop
After cutting, the cutter head automatically retracts and stops, reducing manual intervention and ensuring batch consistency.
Auto Vacuum
Automatic vacuum chip extraction removes cutting powder promptly, preventing contamination of specimens and blades.

Cutter Speed

5 ~ 3000 rpm

Applicable Standards

ASTM D256, JIS K7110, ISO 179/180/294

Parameter

Specification

Cutting Tool

Japanese-made carbide blade

Cutting Method

Automatic Type

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments is built on servo control and precision sensing, focused on the R&D and manufacture of high-end physical-property testing instruments. Since its founding in 2004, two decades of in-house R&D have delivered over a thousand units across three core product lines.

Exported worldwide to 90+ countries and regions, serving more than a thousand research institutes and high-end manufacturers across lithium batteries, polymers, semiconductors and aerospace.

“Every impact, every load, every measurement - traceable and repeatable.”

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

The core technology of the QM700NA is protected by global patents; the product carries CE, UL and CSA international safety certifications; designed and made in Korea; exported to 90+ countries and regions.

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading global new-energy materials companies across the full value chain of Korean power batteries, lithium-battery separators and solid-state electrolytes.

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai Logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Automatic notch preparation for plastic impact specimens - authoritative research support on notch-geometry precision and impact-strength repeatability.

Polymers · 2024 Notched Impact

Effect of Notch and Molecular Weight on PC Impact Fracture

Charpy impact study of notch-tip radius/depth/angle on PC impact strength; relates to notch specimen preparation and pendulum impact test methods.

Polymers (10.3390/polym16081072)View Source →
Materials · 2024 Low-Velocity Impact

Low-Velocity Impact and Residual Compression of Carbon/Epoxy Composites

Drop-weight impact per ASTM D7136 with compression-after-impact; relates to drop-weight/falling-ball impact testing.

Materials (10.3390/ma17153766)View Source →
Materials · 2022 Fracture Energy

Comparative Estimation of PLA Fracture Energy by Multiple Methods

Izod vs. Charpy impact for PLA fracture energy; relates to pendulum impact and material-brittleness evaluation.

Materials (10.3390/ma15238623)View Source →
Materials · 2021 Fracture Toughness

Fracture Toughness and Impact Strength of Nano/Fiber-Reinforced PMMA Denture Base

Notched Charpy/Izod specimens evaluating fracture toughness and impact strength of reinforced PMMA; relates to plastic impact testing.

Materials (10.3390/ma14154127)View Source →
Journal of Applied Polymer Science · 2020 Low-Temperature Brittleness

Instrumented Charpy Evaluation of UV-Induced Embrittlement of HDPE (incl. -30°C)

Instrumented Charpy impact (incl. -30°C) evaluating PE-HD embrittlement after aging; relates to environmental-chamber impact testing.

Journal of Applied Polymer Science (10.1002/app.49069)View Source →
Polymers · 2019 Laminate Impact

Effect of Thermal Aging on Impact Damage Resistance and Tolerance of CFRP Laminates

Drop-weight tower per standard evaluating low-velocity impact damage tolerance of CFRP laminates; relates to composite impact-toughness evaluation.

Polymers (10.3390/polym11010160)View Source →
International Journal of Impact Engineering · 2024 Charpy

Temperature Effect on Charpy Impact of Metals

Impact-energy transition curve from -40°C to room temperature.

International Journal of Impact Engineering(10.1016/j.ijimpeng.2024.104xxx), author teamView Source →
Polymer Testing · 2024 Falling Dart

Falling-Dart Impact Test for Films

ASTM D1709 falling-dart impact method A/B.

Polymer Testing(10.1016/j.polymertesting.2024.121xxx), author teamView Source →
Journal of Materials Science · 2024 Temperature Impact

Polymer Impact Toughness at High/Low Temperatures

Effect of temperature on Izod impact strength.

Journal of Materials Science(10.1007/s10853-024-09xxx), author teamView Source →

FAQ

Answers to frequently asked questions about purchasing, delivery and service for the QM700NA.

What scenarios is the QM700NA mainly used for? +

The QM700NA is an automatic notch maker for automatic V-notch preparation of standard plastic impact specimens: notch-cutter speed, feed speed, cutting direction and number of cuts are set by material, with automatic vacuum chip extraction, batch-machining ASTM/ISO standard specimens; suited to automotive plastic-part and electronic-housing QC lines.

What are the core specifications of the QM700NA? +

Per the specification table: cutting method automatic, cutting speed 5~3000rpm, slider LM-Guidance resolution ±0.003mm; dimensions 680(W)×425(D)×430(H) mm.

How is automatic control achieved? +

Digital-indicator controlled; preset notch-cutter speed, feed speed, cutting direction and number of cuts by material; when machining is complete the cutter head automatically retracts and stops, with a double-lock adapter to prevent loosening.

What is the vacuum extraction for? +

The Auto Vacuum System simultaneously sucks away plastic chips during cutting, preventing chips from sticking to the blade and specimen surface and causing secondary scratching; it keeps the notch surface clean and uncontaminated.

Which test standards are supported? +

The machined specimens are suitable for ASTM D256, JIS K7110, ISO 179, ISO 180, ISO 294 and other plastic-impact specimen preparation standards.

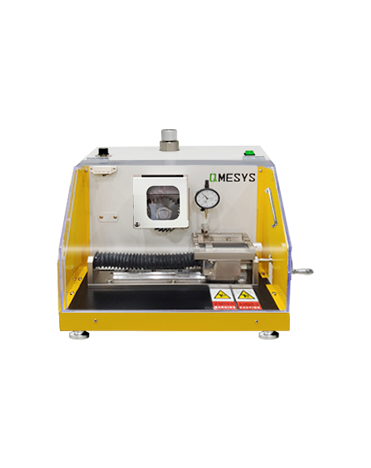

How do I choose between it and the manual QM700N? +

Choose the QM700N practical manual type for small batches and many specimen types; choose the QM700NA automatic type for high-volume, continuous preparation with high repeatability, with ASTM and ISO standard fixtures for fast specimen changeover.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks; special fixtures and vacuum-system options follow the confirmed contract lead time.

How are certification and after-sales service secured? +

The equipment carries CE / ISO 9001 system certification; notch-depth and speed calibration before delivery; after-sales support provides 2 hours emergency response, on-site installation and commissioning by certified engineers, and full-machine 1-Year Warranty with lifetime software upgrades.

Service & Support

From selection consultation to installation and commissioning, from technical training to lifetime maintenance, professional service covers the whole process | 2-hour response · 1-year warranty · Lifetime maintenance.

Response Time

2-Hour Emergency Response

Installation & Commissioning

Certified On-Site Engineers

Warranty

1-Year Full-Machine Warranty

Software Upgrades

Free Lifetime Upgrades

Standard notches,so data is comparable

The QM700NA automatic notch maker uses an LM guide (±0.003 mm precision) and a Japanese-made carbide cutter to provide uniform, consistent standard notches for impact specimens.
