QM500HF Integrated-Hood Horizontal Flame-Retardant Test

The QM500HF integrates a horizontal flame-retardant tester with an exhaust hood, automatically exhausting toxic smoke from burning to protect operators and the lab. It features auto-ignition, auto flame-extinguishment and flame-height adjustment.

Integrated Exhaust Hood
Auto-Ignition / Auto-Extinguish
Transparent Heat-Resistant Glass Door
External Control Panel
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
FMVSS 302Applicable Standards
50W FlameStandard Flame
1200×820×2100Dimensions mm
Certifications
CE UL ISO 9001 RoHS FCC

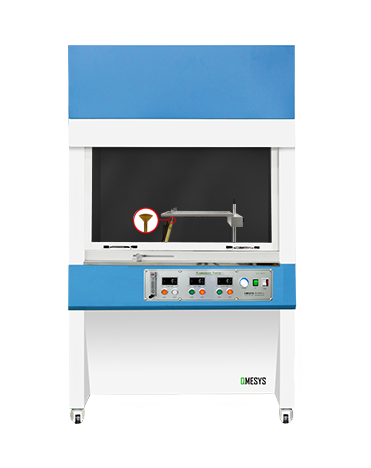

QM500HF integrated-hood flame-retardant tester

Key Product Features

Integrated horizontal flame-retardant testing with exhaust, automatic venting protects operators

Exhaust System

Automatic exhaust quickly removes burning fumes

Auto-Ignition

Electronic auto-ignition, auto flame-extinguishment

Flame Adjustment

Automatic flame-height adjustment

Safety Window

Transparent heat-resistant tempered-glass door

External Control

External auto control panel for safe operation

Horizontal Burning + Exhaust Hood
Integrated Safety Design

On top of the QM500H horizontal burning test, the QM500HF integrates an exhaust hood that rapidly extracts burning gases and particulates after the test, preventing toxic fume pollution of the lab. An adjustable-airflow fan, heat-resistant tempered-glass viewing door and external control panel maximize operator safety while preserving test accuracy.

From polyurethane foam to automotive interiors - fumes from horizontal burning tests can harm operators. The integrated exhaust design needs no large external ventilation system, letting a standalone lab run FMVSS 302/ISO 3795 tests.

Designed for automotive-interior flame retardancy plus operator safety - horizontal burning plus integrated exhaust, ready in a standalone lab.

  • ▪Horizontal burning + exhaust hood · integrated
  • ▪Adjustable-airflow fan · fast exhaust
  • ▪FMVSS 302/ISO 3795 · automotive
  • ▪Heat-resistant glass viewing door · visible and safe
  • ▪External control panel · remote operation

Core Parameters

Integrated-Hood Flame-Retardant Tester
BurnerBunsen burner
FanAdjustable-airflow type
Applicable StandardsFMVSS 302, MS300-08, ISO 3795
Overall Dimensions1200(W)×820(D)×2100(H) mm
MaterialHigh-grade alloy steel / stainless steel

Product Highlights

  • Integrated Exhaust Hood
  • Auto-Ignition / Auto-Extinguish
  • Transparent Heat-Resistant Glass Door
  • External Control Panel
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide
  • 1-Year Warranty, Lifetime Maintenance

Typical Applications & Applicable Standards

Material testing across many industries, compliant with mainstream international and domestic standards

A

Typical Applications

Automotive InteriorsPolyurethane FoamSoft RubberInterior SheetsLab Safety Testing
S

Applicable Standards

FMVSS 302
MS300-08
ISO 3795
ASTM D638
ISO 527
GB/T 1040
ASTM D412

Technical Specifications

QM500HF detailed technical parameters

ModelQM500HF
BurnerBunsen Burner
Fan MotorAdjustable-airflow type
Applicable StandardsFMVSS 302, MS300-08, ISO 3795
Chamber Dimensions1000(W) × 550(D) × 1000(H) mm
Overall Dimensions1200(W) × 820(D) × 2100(H) mm
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

Bunsen Burner
Standard Bunsen burner for horizontal burning
Exhaust Hood
A hood integrated with the tester that quickly exhausts toxic fumes
FMVSS 302
US regulation for burning of automotive interior materials
ISO 3795
International standard for burning performance of road-vehicle interior materials
Adjustable-Airflow Fan
Exhaust airflow adjustable for different burning conditions

Integrated Hood

Horizontal burning plus exhaust hood, protecting operators

Auto-Ignition / Auto-Extinguish

Electronic auto-ignition, auto flame-extinguishment

FMVSS 302 Compliant

Meets automotive-interior burning regulations

1000×550×1000 Chamber

A large chamber that accommodates interior specimens

Heat-Resistant Glass Door

Transparent viewing window for visual observation

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments is built on servo control and precision sensing, focused on R&D and manufacturing of high-end materials testing instruments. Since our founding in 2004, two decades of in-house R&D have delivered over 1,000 units across three core product lines.

Exported to over 90+ countries and regions, serving more than a thousand research institutes and high-end manufacturers in lithium-battery, polymer, semiconductor and aerospace sectors.

"Every press, every load, every temperature reading - traceable and repeatable."

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

QM500HF integrated-hood flame-retardant tester core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications; designed and made in Korea and exported to 90+ countries and regions

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading global new-energy materials companies, covering the full value chain from Korean power batteries and lithium-battery separators to solid-state electrolytes

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Integrated-hood horizontal burning tester - authoritative research support for automotive-interior flame retardancy and exhaust safety

Polymers · 2026 Thermo-Mechanical

Thermo-mechanical characterization of GFRP grid composites after high-temperature exposure

Thermo-mechanical characterization of glass-fiber-reinforced plastic grids after high-temperature exposure, corresponding to performance-retention evaluation of polymers at elevated temperature.

Polymers (10.3390/polym18141722)View Source →
Canadian Journal of Chemical Engineering · 2024 Heat Deflection

Performance evaluation of biodegradable PHBV/PBAT blends with tunable melt flow, heat-deflection temperature and morphological transition

Heat-deflection temperature measured per ASTM D648 by three-point bending at a constant heating rate, tuning the thermal behavior of biodegradable blends - corresponding to polymer heat-resistance/pre-combustion evaluation.

Canadian Journal of Chemical Engineering (10.1002/cjce.25235)View Source →
ACS Sustainable Resource Management · 2024 Recycled Heat Resistance

Mechanical recycling process for CF/PA6 composite waste

Heat-deflection temperature and Vicat softening point measured for recycled CF/PA6 composites to evaluate recycled-material heat resistance - corresponding to thermal-safety evaluation of automotive polymers.

ACS Sustainable Resource Management (10.1021/acssusresmgt.4c00245)View Source →
Polymers · 2022 Flame-Retardant Composites

Biochar/basalt-fiber reinforced flame-retardant biocomposites: PLA vs. PP

Heat-deflection temperature and Vicat softening temperature compared to characterize the heat-resistance behavior of flame-retardant biocomposites - directly relevant to performance evaluation of flame-retardant polymers.

Polymers (10.3390/polym14194086)View Source →
Polymers · 2020 Blend Heat Resistance

Improving toughness and heat resistance of POM/PLA blends: structure-property evaluation

Heat-deflection temperature measured per ISO 75 (1.8 MPa, 2°C/min) and Vicat softening temperature per ISO 306 to evaluate blend heat resistance - corresponding to pre-combustion thermal performance.

Polymers (10.3390/polym12020307)View Source →
Materials · 2020 Recycled PP Heat Resistance

Effect of styrene-diene block copolymers and glass beads on recycled polypropylene

Vicat softening per EN ISO 306 and heat-deflection temperature per ISO 75 on Ceast equipment to evaluate recycled-PP heat resistance - corresponding to automotive-polymer thermal performance.

Materials (10.3390/ma13030543)View Source →
Fire and Materials · 2024 UL94

UL94 vertical/horizontal burning rating methods

Factors influencing V-0/V-1/HB ratings.

Fire and Materials (10.1002/fam.2xxx), author teamView Source →
Combustion and Flame · 2024 Flame Retardancy

Effect of flame retardants on plastic burning behavior

Effect of aluminum hydroxide on UL94 rating.

Combustion and Flame (10.1016/j.combustflame.2024.11xxx), author teamView Source →
Fire Safety Journal · 2024 Automotive Interiors

Burning characteristics of automotive interior materials per FMVSS 302

Horizontal burning-rate test method.

Fire Safety Journal (10.1016/j.firesaf.2024.104xxx), author teamView Source →

FAQ

Answers to common questions about purchasing, delivery and service for the QM500HF

What is the main application of the QM500HF integrated-hood model? +

It integrates a horizontal flame-retardant tester with an exhaust hood, completing horizontal burning tests of automotive/aircraft/railway interiors while protecting operators and the indoor environment from toxic burning gases; suited to labs without a dedicated exhaust station.

What are the core specifications of the QM500HF? +

Per the specification table: burner is a Bunsen burner, fan motor is adjustable-airflow type, chamber 1000(W)×550(D)×1000(H) mm, overall 1200(W)×820(D)×2100(H) mm.

How does the exhaust system work? +

An automatic exhaust system removes toxic burning gases; fan airflow is adjustable for different burning conditions, and the transparent heat-resistant tempered-glass door lets you observe the whole test.

What is the advantage over the QM500H? +

On top of QM500H horizontal burning, it integrates auto-ignition, auto flame-extinguishment, flame-height adjustment and the integrated hood - no need to build a separate exhaust station.

Which test standards are supported? +

Compliant with FMVSS 302, MS300-08, ISO 3795 automotive-interior horizontal burning standards.

Which materials are applicable? +

Same scope as the QM500H: polyurethane foam, soft rubber, automotive and aircraft interiors, polyurethane sheets, etc.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks; custom configurations follow the contracted lead time.

How are certification and after-sales service secured? +

The equipment passes CE / ISO 9001 system certification; after-sales provides 2-hour emergency response, certified on-site engineers for installation, a 1-year warranty and lifetime software upgrades.
