Air-Vent Aging Oven
Materials Testing Instrument

Air-Vent Thermal Aging Oven Precision, Reliable Testing

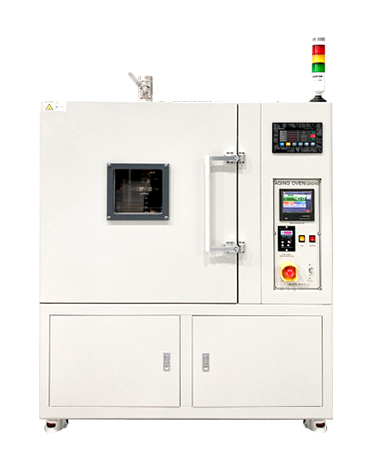

QM240S Air-Vent Thermal Aging Oven

The QM240S air-vent thermal aging oven is built to ISO 188 for hot-air aging of plastics and rubber, evaluating property changes under sustained heat exposure.

To prevent deformation and abnormal degradation from gases and organic compounds released during aging, the oven exhausts and refreshes air periodically, keeping the air speed reaching specimens uniform (0.5 m/s ± 0.25).

Range RT~400 °C; color LCD touchscreen plus digital PID control with saved data; fitted with a speed-adjustable detachable rotating rack (3~8 rpm).

ISO 188 air vent
RT ~ 400°C
Air speed 0.5 m/s ± 0.25
Rotating rack 3~8 rpm
Digital air-speed sensor
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
RT ~ 400°C Temperature Range
0.5 m/s ±0.25 Vent air speed
3 ~ 8 rpm Rack speed
Certifications
CE UL ISO 9001 RoHS FCC
QM240S Air-Vent Thermal Aging Oven

Key Product Features

ISO 188 vent · RT~400 °C · 0.5 m/s ± 0.25 · digital sensor, air-vent aging

ISO 188 air vent

Periodically renews fresh air per ISO 188 to prevent secondary contamination by aging gases.

Uniform air speed

Keeps air speed reaching specimens uniform, for stable temperature and reproducible data.

Digital air-speed sensor

A digital air-speed sensor monitors vent air speed in real time.

Rotating-rack aging

A speed-adjustable detachable rack at 3~8 rpm heats specimens evenly.

Programmable

Programmable vent cycles and savable test methods, operated via color LCD.

Air-Vent Thermal Aging Oven
ISO 188 Standard Model

The QM240S air-vent aging oven is built to ISO 188 for hot-air aging of plastics and rubber and measuring property changes under sustained exposure. It exhausts periodically and keeps reaching air speed uniform (0.5 m/s ± 0.25) to avoid secondary contamination. Range RT~400 °C; color LCD with digital PID; detachable rack at 3~8 rpm.

From rubber seals to plastic parts - gases released during aging can skew results; the air-vent design exhausts them periodically to ensure accurate, repeatable aging. ISO 188 is the international standard for rubber hot-air aging.

Designed for standardized aging - air vent plus uniform air speed, ISO 188 rubber-aging compliant.

  • ▪ISO 188 air-vent · standard model
  • ▪Wide range RT~400 °C · PID control
  • ▪Uniform 0.5 m/s ± 0.25 · digital sensor
  • ▪Rack 3~8 rpm · even aging
  • ▪Rubber/plastic · standardized aging

Core Parameters

Air-Vent Thermal Aging Oven
Product Type Air-Vent Thermal Aging Oven (ISO 188)
Temperature Range RT ~ 400°C
Vent air speed 0.5 m/s ± 0.25 (ISO 188 Type-2)
Rack speed 3 ~ 8 rpm
Vent controlProgrammable vent cycles; horizontal zone-damper adjustment

Product Highlights

  • ISO 188 air vent
  • RT ~ 400°C
  • Air speed 0.5 m/s ± 0.25
  • Rotating rack 3~8 rpm
  • Digital air-speed sensor
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

Air-vent hot-air aging of plastics/rubber; periodic exhaust per ISO 188

A

Typical Applications

Plastic hot-air agingRubber air-vent agingComposite heat exposureProperty-change measurementISO 188 testMaterial-life evaluation
S

Applicable Standards

ISO 188 (hot-air aging test method for vulcanized/thermoplastic rubber)

QM240S Technical Specifications

RT~400 °C · ISO 188 vent · 0.5 m/s ± 0.25 · 3~8 rpm rack

ParameterQM240S
Product TypeAir-Vent Thermal Aging Oven
StandardISO 188 (Type-2)
Temperature RangeRT ~ 400°C
Vent air speed0.5 m/s ± 0.25 (digital air-speed sensor)
Rack speed3 ~ 8 rpm (speed-adjustable detachable rotating rack)
Control methodDigital PID, color LCD touchscreen, data storage
Vent controlProgrammable vent cycles; horizontal zone-damper adjustment
Overall Dimensions (W×D×H)1220 × 820 × 1504 mm
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

ISO 188
Standard hot-air aging method for vulcanized/thermoplastic rubber
Air vent (replacement)
Periodically exhausts aging gases and supplies fresh air to prevent secondary degradation
Air speed
Air-flow speed at the specimen surface; 0.5 m/s ± 0.25 ensures even aging
rpm
Rack revolutions per minute, adjustable 3~8 rpm
PID
Proportional-integral-derivative closed-loop control
Thermal aging
Property degradation under long-term heat/oxygen

Wide-range venting

RT~400 °C hot-air aging

Periodic venting

ISO 188 exhaust prevents contamination

Air-speed monitoring

Digital air-speed sensor with real-time display

Rotating rack

3~8 rpm for even specimen heating

Programmable

Programmable vent cycles, savable data

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments builds on precision control and sensing, specializing in physical-property and environmental-test instruments. Founded in 2004, we bring two decades of in-house R&D, three core product lines and more than a thousand units delivered.

Exported to 90+ countries and regions, serving more than a thousand research institutes and advanced manufacturers across polymers, rubber, automotive, electronics and aerospace.

"Every temperature, every load, every measurement - traceable and reproducible."

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

QM240S core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications; designed and made in Korea; exported to 90+ countries and regions

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading global new-energy materials companies across the full Korean power-battery, Li-battery separator and solid-electrolyte value chain

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Hot-air aging and venting conditions - authoritative research on heat-resistance evolution of plastics/rubber under ISO 188 vent aging

Polymers · 2026 High-temperature exposure

Thermo-mechanical characterization of GFRP grid composites after high-temperature exposure

Thermo-mechanical characterization of GFRP grids after high-temperature exposure, including heat deflection and stiffness retention - corresponding to long-term oven exposure.

Polymers (10.3390/polym18141722), MDPI research teamView Source →
Canadian J. Chemical Engineering · 2024 HDT / melt flow

Melt flow, heat-deflection temperature and morphology of biodegradable PHBV/PBAT blends

HDT measured by constant-rate three-point bending per ASTM D648, controlling blend heat-deflection behavior - corresponding to thermal-aging and HDT methods.

Canadian J. Chemical Engineering (10.1002/cjce.25235), Wiley research teamView Source →
ACS Sustainable Resource Management · 2024 Recycled-material heat resistance

Mechanical recycling of CF/PA6 composite waste: HDT and Vicat softening evaluation

HDT and Vicat softening of recycled CF/PA6 measured to evaluate heat resistance - corresponding to post-oven heat-resistance verification.

ACS Sustainable Resource Management (10.1021/acssusresmgt.4c00245), ACS research teamView Source →
Polymers · 2022 Heat-resistance behavior

Biochar/basalt-fiber flame-retardant biocomposites: HDT comparison of PLA and PP

HDT and Vicat softening compared to characterize heat-resistance differences of flame-retardant biocomposites - corresponding to plastic heat-aging evaluation.

Polymers (10.3390/polym14194086), MDPI research teamView Source →
Polymers · 2020 HDT / Vicat

Toughness and heat resistance of POM/PLA blends: structure-property evaluation

HDT per ISO 75 (1.8 MPa, 2 °C/min) and Vicat per ISO 306 evaluate blend heat resistance - corresponding to oven temperature-accuracy verification.

Polymers (10.3390/polym12020307), MDPI research teamView Source →
Materials · 2020 Vicat / HDT

Effect of styrene-diene block copolymers and glass beads on recycled PP

Vicat per EN ISO 306 and HDT per ISO 75 on a Ceast HDT-Vicat device - corresponding to post-aging heat-resistance evaluation.

Materials (10.3390/ma13030543), MDPI research teamView Source →
Polymer Degradation and Stability · 2024 Thermal aging

Life prediction of PP thermo-oxidative aging

Application of the Arrhenius model to thermal aging.

Polymer Degradation and Stability (10.1016/j.polymdegradstab.2024.113xxx), author teamView Source →
Journal of Applied Polymer Science · 2024 Melt index

Temperature optimization for PET melt-index testing

MFR test at 260 °C / 2.16 kg.

Journal of Applied Polymer Science (10.1002/app.202401xxx), author teamView Source →
Polymer Testing · 2024 Water bath

Verification of constant-temperature bath uniformity

GB/T 1035 bath-temperature calibration method.

Polymer Testing (10.1016/j.polymertesting.2024.122xxx), author teamView Source →

FAQ

Answers to common questions about QM240S purchasing, delivery and service

What is the QM240S mainly used for? +

For hot-air aging of plastics and rubber, evaluating property changes (tensile strength, elongation) under sustained exposure; runs per ISO 188 air-vent aging.

What are the key technical parameters? +

Refer to the specifications: temperature range RT~400°C, vent air speed 0.5m/s±0.25 (ISO 188 Type-2), rack speed 3~8rpm.

How does the air-vent method ensure aging conditions? +

Periodic exhaust and fresh-air replenishment per ISO 188 removes aging gases/organic compounds; a digital sensor monitors reaching air speed in real time to keep it uniform and prevent secondary reactions and specimen contamination.

How is it heated and controlled? +

Digital PID control via color LCD; programmable vent cycles with saved methods/data; overheat prevention with auto cooling.

Which test standards are supported? +

Per ISO 188 (hot-air aging of vulcanized/thermoplastic rubber, Type-2).

Which options are supported? +

Rack speed, zone-damper adjustment (Type-2), test-cycle programs and temperature upper limit can be configured.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks; custom configurations are delivered per the contracted lead time once options are confirmed; our technical team confirms the configuration list and schedule before signing.

How are certification and after-sales service secured? +

The unit carries CE, UL and ISO 9001 certifications and undergoes three-tier calibration with a certificate before shipment; after-sales includes 2-hour emergency response, on-site commissioning by certified engineers, a 1-year warranty and lifetime software upgrades.
