Testing-Machine Workbench
Universal Testing Machine (UTM)

Dedicated UTM Workbench Precise, Reliable Testing

QM100TB Dedicated Workbench for Universal Testing Machines

QM100TB A dedicated workbench (accessory) for universal testing machines, providing a stable load-bearing surface and storage for grips and accessories.

The body is S45C steel with heat treatment and powder coating for rigidity and stability; Footmaster casters at the base combine mobility with leveling. Designed and made by QMESYS in Korea to international standards, exported to 90+ countries.

800x540x700 mm, with a double-door cabinet and one shelf for grips and specimens, installed alongside QM100T/TM/TC and other main frames.

Lockable casters for easy installation and repositioning
Large double-door storage for specimens and accessories
S45C with heat-treated powder coating, sturdy and durable
One shelf for organized test consumables
4 Footmaster casters, mobile yet lockable
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
S45C with heat-treated powder coating Material
Double-Door Door Type
1 Ea Shelf
Compatible Models
QM100/100E QM100P/100S QM100T Series QM100TC high/low temperature Load capacity 500 kg
Certifications
CE UL ISO 9001 RoHS FCC

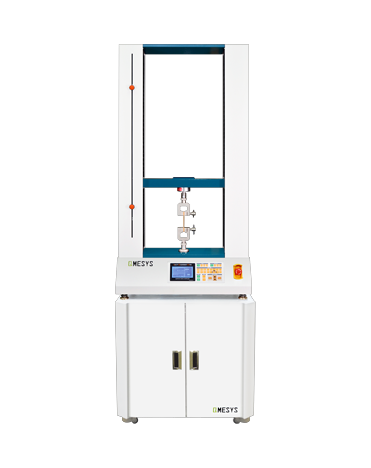

QM100TB universal testing machine

Key Product Features

Dedicated UTM workbench: stable support, double-door storage, mobile

S45C Steel

S45C body plus heat-treated powder coating for rigid, stable support of the instrument.

Double-Door Storage

Double-door cabinet plus one shelf for grips and accessories.

Mobile Casters

4 Footmaster casters (with wheels) for easy instrument repositioning.

Dedicated Size

800x540x700 mm, matched to the main frame.

Accessory

An optional workbench for universal testing machines.

Universal Testing Machines (UTM)
Dedicated Workbench

The QM100TB dedicated workbench for universal testing machines uses an S45C steel body with heat treatment and powder coating for rigidity and a flat support surface. It measures 800(W)x540(D)x700(H) mm, with a double-door cabinet and one shelf for grips, specimens and accessories, and Footmaster wheeled casters at the base for easy repositioning.

A UTM needs a stable bench for test accuracy, yet nearby storage for common grips and accessories. This dedicated bench matches the UTM footprint, with a rigid steel frame, storage cabinet and casters - keeping the lab tidy and efficient.

Designed as a UTM companion - rigid steel workbench plus storage cabinet for a complete lab solution.

  • ▪S45C steel · heat-treated powder coating
  • ▪800x540x700 mm · dedicated size
  • ▪Double-door cabinet + shelf · grip/accessory storage
  • ▪Footmaster casters · lockable and mobile
  • ▪UTM companion · lab workbench

Core Parameters

Dedicated Workbench · QM100TB
Material S45C with heat-treated powder coating
Size 800(W)×540(D)×700(H)mm
Door Type Double-Door
Shelf 1 Ea
Casters Footmaster 4 ea (with wheels)

Product Highlights

  • Lockable casters for easy installation and repositioning
  • Large double-door storage for specimens and accessories
  • S45C with heat-treated powder coating, sturdy and durable
  • One shelf for organized test consumables
  • 4 Footmaster casters, mobile yet lockable
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

A support and storage companion workbench for universal testing machines

A

Typical Applications

Tester CompanionEquipment SupportGrip StorageLab WorkbenchMobile Casters
S

Applicable Standards

Supplied with the machine; installed with the UTM main frame

QM100TB Technical Specifications

Dedicated UTM workbench · fits QM100 series UTMs

ParameterQM100TB
Product TypeDedicated workbench for UTM (accessory)
MaterialS45C with heat-treated powder coating
Dimensions (W×D×H)800 × 540 × 700 mm
Door TypeDouble-Door
Shelf1 Ea
CastersFootmaster 4 ea (with wheels)
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

S45C
High-quality carbon structural steel; heat treatment gives excellent rigidity and strength
Powder Coating
Sprayed surface finish; rust-resistant, wear-resistant and easy to clean
Footmaster
Brand casters/leveling wheels combining mobility with leveling
Ea
Piece count (Each); here the number of shelves/casters

S45C Steel

Stable support

Double-Door Storage

Grip/accessory storage

Casters

Easy to move

Matched size

Matches the main frame

Powder Coating

Rust- and wear-resistant

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments, built on servo control and precision sensing as its technical core, focuses on the R&D and manufacturing of high-end materials physical-property testing instruments. Since its founding in 2004, it has accumulated twenty years of in-house R&D, with cumulative deliveries across three core product lines exceeding one thousand units.

Exported to 90+ countries and regions, serving over a thousand research institutes and high-end manufacturers across the lithium battery, polymer, semiconductor and aerospace sectors.

"Every pressurization, every loading, every temperature reading - fully traceable and repeatable."

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

QM100TB core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications, is designed and made in Korea, and is exported to 90+ countries and regions.

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading new-energy materials companies worldwide, across the full value chain of Korean power batteries, lithium-battery separators and solid-state electrolytes.

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Material-lab equipment companions and workbench support - completing the test layout and sample/grip storage alongside UTMs.

Advanced Composite Materials · 2026 Fatigue Bending

Three-point bending fatigue and failure mechanisms of thick-section CFRP laminates

Three-point bending fatigue and failure of thick CFRP laminates, quantifying bending-stiffness degradation and damage evolution under different cyclic loads - corresponding to UTM bending-fatigue testing.

Advanced Composite Materials (10.1080/09243046.2026.2656583)View Source →
Composites Communications · 2025 Flexural Testing

Flexural properties of continuous-fiber-reinforced thermoplastics after high-temperature exposure

Three-point bending of continuous-fiber-reinforced thermoplastics after high-temperature exposure, measuring bending strength and modulus retention - corresponding to UTM flexure tests.

Composites Communications (10.1016/j.coco.2025.102279)View Source →
Adv. Mater. Sci. Eng. · 2022 Process Parameters

Mechanical testing and morphology analysis for polymer-filament process-parameter optimization

A UTM determines tensile strength, Young's modulus and elongation at break to quantify how process parameters affect mechanical results.

Adv. Mater. Sci. Eng. (10.1155/2022/8259804)View Source →
Polymers · 2022 Compression Cycling

Cyclic compression of three elastomers (TPV, LSR and two EPDMs)

Cyclic compression load/unload on a ZwickRoell UTM to obtain rubber-like compression stress/strain response and hysteresis.

Polymers (10.3390/polym14071316)View Source →
Polymers · 2020 HDPE Tension

Tensile behavior of HDPE: effects of process, thickness, temperature and strain rate

ASTM D638 / ISO 527 study of process, thickness, temperature and strain-rate effects on HDPE tension - corresponding to UTM tensile tests.

Polymers (10.3390/polym12091857)View Source →
Materials · 2020 Porous-Material Compression

Compressive response of porous polymer materials

ASTM D1621 quasi-static compression stress/strain and energy absorption of porous plastics on an Instron UTM.

Materials (10.3390/ma13020457)View Source →
Journal of Testing and Evaluation · 2024 Tensile Testing

Effect of tensile test speed on plastic results

Comparison of tensile strength at 5 vs 50 mm/min.

Journal of Testing and Evaluation (10.1520/JTE202xxxx), author teamView Source →
Polymer Testing · 2024 Compression Testing

Compressive stress/strain curves of foam

ASTM D1621 compression test method.

Polymer Testing (10.1016/j.polymertesting.2024.120xxx), author teamView Source →
Experimental Mechanics · 2024 Fatigue

Waveform selection for servo fatigue testers

Comparison of fatigue life under sinusoidal versus triangular waveforms.

Experimental Mechanics (10.1007/s11340-024.0xxx), author teamView Source →

FAQ

Answers to common questions about QM100TB purchasing, delivery and service.

What scenarios is the QM100TB mainly used for? +

The QM100TB is a dedicated workbench (accessory) for universal testing machines, providing a stable support surface and using the double-door cabinet and shelf to store grips, specimens and accessories.

What are the core technical parameters of the QM100TB? +

Per the specification table: material S45C with heat-treated powder coating, dimensions 800×540×700mm, double-door cabinet + 1 shelf, 4 Footmaster casters.

How is force accuracy and speed control ensured? +

The body is S45C steel with heat treatment and powder coating for rigidity; Footmaster casters at the base combine mobility with leveling.

Which main frames is it paired with? +

As an optional UTM workbench, it installs with QM100T/QM100TM/QM100TC main frames, with dimensions matched to the main-frame base.

Which test standards are supported? +

Supplied as a companion accessory installed with the tester main frame; it has no independent test standard.

Which options can be customized? +

Shelf count, caster type and surface finish can be selected per lab layout.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks; custom models follow the contracted lead time agreed after options and process are confirmed - our engineering team confirms the configuration list and delivery schedule with you before signing.

How are certification and after-sales service secured? +

Every unit is three-tier calibrated before shipment with a calibration certificate; after-sales service includes 2-Hour Emergency Response, on-site installation and commissioning by certified engineers, a full-machine 1-Year Warranty and lifetime software upgrades.

Service & Support

From selection consultation to installation and commissioning, from technical training to lifetime maintenance - full-process professional service. | 2-hour response · 1-year warranty · lifetime maintenance

Response Time

2-Hour Emergency Response

Installation & Commissioning

Certified On-Site Engineers

Warranty

1-Year Full-Machine Warranty

Software Upgrades

Free Lifetime Upgrades

Stable support,neatly organized

With an S45C steel top, double-door storage and mobile casters, the QM100TB dedicated workbench provides stable support and grip storage for UTM labs.
