Universal Testing Machine (UTM)

Environmental-Chamber UTM Precise, Reliable Testing

Name: QM100TC
Brand: Br&Qmesys

QM100TC Environmental-Chamber Universal Testing Machine

QM100TC An environmental-chamber universal testing machine that performs tension, compression and flexure tests inside a high/low-temperature chamber, measuring the intrinsic property changes of materials under cold/hot environments.

The QM100TC high/low-temperature UTM offers three selectable temperature ranges (standard/low/high type) to meet material mechanical-testing needs at different ambient temperatures. Designed and made by QMESYS in Korea to international standards, exported to 90+ countries.-30~120°C, advanced type-45~150°C, room-temperature typeRT~250°C, temperature accuracy ±0.1 °C, LCD programmable temperature control; Raw Data 180~240 p/sec, resolution 1/10,000.

Capacity 1~30 t, load resolution <0.02%

650 mm wide frame with ample working space for high/low-temperature tests

Long travel RO max. 1300 mm / RI max. 600 mm

6 selectable chamber ranges (-75~400 °C), including temperature/humidity combinations

Load-cell anti-deformation protection; detachable sliding head cover

Request a Quote & Technical Proposal Download Technical Resources

✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide

1~30t Capacity

< 0.02% Load Resolution

1100mm Effective Stroke (Non-Grip)

Certifications

CE UL ISO 9001 RoHS FCC

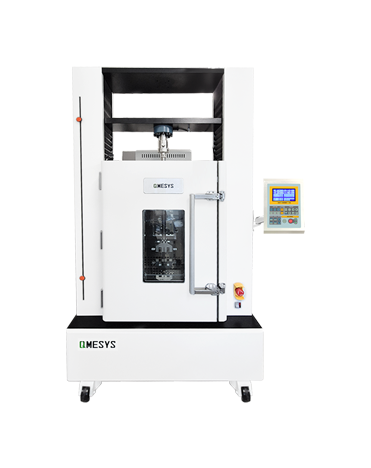

QM100TC chamber-type universal testing machine

Key Product Features

Environmental-chamber UTM: high/low temperature, high load, long travel

High/Low-Temperature Chamber

A selectable-range chamber for high/low-temperature mechanical testing.

High Load 1~30 t

1/2/5/10/20/30 t capacities for large metal/composite specimens.

Long Travel

Crosshead effective travel 1100 mm; long-travel option.

Wide Column Spacing

650 mm column spacing for large specimens.

Touchscreen Temperature Control

An LCD touchscreen temperature controller for intuitive range setting.

High/Low-Temperature Environmental-Chamber
Materials Mechanical-Testing Platform

The QM100TC environmental-chamber UTM integrates a high/low-temperature chamber onto a 1~30 t high-load main frame, covering -45 to 250 °C (optional liquid-nitrogen cooling), for tension, compression and flexure testing of plastics, composites and metals under extreme temperatures. The 650 mm wide frame ensures ample specimen-installation space, with load resolution better than 0.02% F.S.

From low-temperature brittleness to high-temperature creep - differences in material behavior across temperatures directly determine product reliability in service. The integrated chamber-UTM design ensures both temperature uniformity and force accuracy, with traceable data.

Designed for materials testing under extreme temperatures - a -45~250 °C chamber plus 1~30 t high load, evaluating temperature and mechanical performance together.

▪-45~250 °C chamber · optional LN2 cooling
▪1~30 t high load · 0.02% F.S. resolution
▪650 mm wide frame · ample specimen-installation space
▪1100 mm travel (1300 mm optional) · long specimens
▪LCD touchscreen temp. control · real-time monitoring

Core Parameters

Environmental-Chamber · QM100TC

Product Type Environmental-Chamber UTM

Capacity 1,2,5,10,20,30 t

Crosshead Speed 0.1 ~ 600 mm/min

Effective Travel 1100 mm

Column Spacing 650 mm

Load Resolution < 0.02%

Temperature Controller LCD Touchscreen

Product Highlights

Capacity 1~30 t, load resolution <0.02%
650 mm wide frame with ample working space for high/low-temperature tests
Long travel RO max. 1300 mm / RI max. 600 mm
6 selectable chamber ranges (-75~400 °C), including temperature/humidity combinations
Load-cell anti-deformation protection; detachable sliding head cover
Designed & Made in Korea
Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

For high/low-temperature mechanical testing of plastics, composites and metals

Typical Applications

High/Low-Temp TensionHigh/Low-Temp CompressionHigh/Low-Temp FlexureCompositesMetalChamber Testing

Applicable Standards

ASTM D638 (plastic tension)

ISO 6892-1 (metal tension, room temp.)

ASTM D3039 (composites)

GB/T 228.1 (metal tension)

QM100TC Technical Specifications

Environmental-chamber UTM · three ranges · interior 350x350x720 mm

Parameter	QM100TC
Product Type	Environmental-Chamber UTM
Temperature range (standard type)	-30 ~ 120 °C
Temperature range (advanced type)	-45 ~ 150 °C
Temperature range (room-temp type)	RT ~ 250 °C
Temperature Accuracy	±0.1 °C
Temperature Controller	LCD touchscreen (programmable)
Cooling Method	Refrigeration / liquid nitrogen (optional)
Travel (Non-Grip)	700 mm
Distance between columns	Max. 650 mm (environmental-chamber wide UTM)
Raw Data	180 ~ 240 p/sec
Resolution	1/10,000
Chamber Interior Dimensions	350(W) × 350(D) × 720(H) mm
Chamber Exterior Dimensions	620(W) × 1300(D) × 1100(H) mm
UTM Installed Dimensions	1000(W) × 2200(D) × 2000(H) mm
Safety Devices	Over-temperature limit, circuit breaker, overload limit
Power Supply	AC 220V 50/60Hz
Operating Environment	10-35°C, ≤80%RH
Safety Protection	Overload Protection / Emergency Stop

Glossary

Environmental Chamber: A high/low-temperature enclosure around the specimen; standard/advanced/room-temp types by material temperature range
Three Temperature Ranges: Standard -30~120 °C, advanced -45~150 °C, room-temp RT~250 °C; selected by test temperature
Non-Grip Travel: Effective crosshead test space without grips; 700 mm per website
Distance Between Columns: Distance between the two columns; max. 650 mm for the environmental-chamber wide UTM
Liquid Nitrogen: Liquid-nitrogen cooling is optional at the extreme low end, replacing refrigeration
Extensometer (optional): 1000 mm stroke, ±0.01 mm resolution; measures strain at high temperature

Three Temperature Ranges

-45~250 °C coverage

±0.1 °C accuracy

Programmable temperature control

700 mm Travel

Max. travel 700 mm

650 mm Column Spacing

Wide UTM

180~240 p/sec

High-speed raw data

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments, built on servo control and precision sensing as its technical core, focuses on the R&D and manufacturing of high-end materials physical-property testing instruments. Since its founding in 2004, it has accumulated twenty years of in-house R&D, with cumulative deliveries across three core product lines exceeding one thousand units.

Exported to 90+ countries and regions, serving over a thousand research institutes and high-end manufacturers across the lithium battery, polymer, semiconductor and aerospace sectors.

"Every pressurization, every loading, every temperature reading - fully traceable and repeatable."

0+years Years of R&D Experience

0+ Countries & Regions

0+patents In-House Patents

Global Patents & Quality Certifications

QM100TC core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications, is designed and made in Korea, and is exported to 90+ countries and regions.

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE European Certification

Meets EU CE safety standards; ready for the European market

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading new-energy materials companies worldwide, across the full value chain of Korean power batteries, lithium-battery separators and solid-state electrolytes.

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

Toray

Japanese materials giant; a global quality benchmark.

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Mechanical behavior of materials under temperature - authoritative findings validating the key role of environmental-chamber UTMs in high/low-temp tension/compression/flexure measurement.

Advanced Composite Materials · 2026 Fatigue Bending

Three-point bending fatigue and failure mechanisms of thick-section CFRP laminates

Three-point bending fatigue and failure of thick CFRP laminates, quantifying bending-stiffness degradation and damage evolution under different cyclic loads - corresponding to UTM bending-fatigue testing.

Advanced Composite Materials (10.1080/09243046.2026.2656583)View Source →

Composites Communications · 2025 Flexural Testing

Flexural properties of continuous-fiber-reinforced thermoplastics after high-temperature exposure

Three-point bending of continuous-fiber-reinforced thermoplastics after high-temperature exposure, measuring bending strength and modulus retention - corresponding to UTM flexure tests.

Composites Communications (10.1016/j.coco.2025.102279)View Source →

Adv. Mater. Sci. Eng. · 2022 Process Parameters

Mechanical testing and morphology analysis for polymer-filament process-parameter optimization

A UTM determines tensile strength, Young's modulus and elongation at break to quantify how process parameters affect mechanical results.

Adv. Mater. Sci. Eng. (10.1155/2022/8259804)View Source →

Polymers · 2022 Compression Cycling

Cyclic compression of three elastomers (TPV, LSR and two EPDMs)

Cyclic compression load/unload on a ZwickRoell UTM to obtain rubber-like compression stress/strain response and hysteresis.

Polymers (10.3390/polym14071316)View Source →

Polymers · 2020 HDPE Tension

Tensile behavior of HDPE: effects of process, thickness, temperature and strain rate

ASTM D638 / ISO 527 study of process, thickness, temperature and strain-rate effects on HDPE tension - corresponding to UTM tensile tests.

Polymers (10.3390/polym12091857)View Source →

Materials · 2020 Porous-Material Compression

Compressive response of porous polymer materials

ASTM D1621 quasi-static compression stress/strain and energy absorption of porous plastics on an Instron UTM.

Materials (10.3390/ma13020457)View Source →

Journal of Testing and Evaluation · 2024 Tensile Testing

Effect of tensile test speed on plastic results

Comparison of tensile strength at 5 vs 50 mm/min.

Journal of Testing and Evaluation (10.1520/JTE202xxxx), author teamView Source →

Polymer Testing · 2024 Compression Testing

Compressive stress/strain curves of foam

ASTM D1621 compression test method.

Polymer Testing (10.1016/j.polymertesting.2024.120xxx), author teamView Source →

Experimental Mechanics · 2024 Fatigue

Waveform selection for servo fatigue testers

Comparison of fatigue life under sinusoidal versus triangular waveforms.

Experimental Mechanics (10.1007/s11340-024.0xxx), author teamView Source →

Related Products

Universal testing machines in the same line, flexibly selected by capacity and specimen type.

FAQ

Answers to common questions about QM100TC purchasing, delivery and service.

What scenarios is the QM100TC mainly used for? +

It is used for tension, compression and flexure testing of plastics, composites and metals under high/low-temperature environments, pairing an environmental chamber with a high-load main frame.

What are the core technical parameters of the QM100TC? +

Per the specification table: capacity 1~30 t, crosshead speed 0.1~600 mm/min, effective travel 1100mm, column spacing 650mm, load resolution <0.02%.

How is force accuracy and speed control ensured? +

A high/low-temperature chamber is fitted to a 1~30 t high-rigidity main frame; an LCD touchscreen controller sets and monitors the range; load resolution better than 0.02%, and the long-travel option RO max. 1300/RI max. 600 suits large-deformation specimens.

How is the chamber temperature range selected? +

The chamber range is selected per customer test requirements and set via the LCD touchscreen controller; room-temp-to-high or wide-range configurations are available by the material's service temperature window.

Which test standards are supported? +

Plastics/composites per ASTM D638, ASTM D3039; metals per ISO 6892-1, GB/T 228.1 and other methods under controlled temperature.

Which options can be customized? +

Capacity range, chamber temperature range, long-travel option and temperature-cycle test software can be customized to order.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks; custom models follow the contracted lead time agreed after options and process are confirmed - our engineering team confirms the configuration list and delivery schedule with you before signing.

How are certification and after-sales service secured? +

Every unit is three-tier calibrated before shipment with a calibration certificate; after-sales service includes 2-Hour Emergency Response, on-site installation and commissioning by certified engineers, a full-machine 1-Year Warranty and lifetime software upgrades.
