Universal Testing Machine (UTM)
Universal Testing Machine (UTM)

Benchtop High-Travel UTM Precise, Reliable Testing

QM100TM Benchtop High-Travel Universal Testing Machine

QM100TM A dedicated benchtop universal testing machine for plastics and composites, for tension/flexure testing of high-elongation, high-elasticity plastics and composites.

A high-rigidity semi-monocoque frame with high-precision speed closed-loop (0.1~600 mm/min) and load resolution better than ... Designed and made by QMESYS in Korea to international standards, exported to 90+ countries.0.02%, raw data 150~240 p/sec, stable measurement of high-elongation specimens.

Largest-in-class column spacing450mm, 950 mm effective travel, One-touch quick-change grips, and a 750x450x1550 mm benchtop body that sets up right on the bench.

Benchtop design, 100~1000 kgf capacity for plastics, rubber, polyurethane and composites
450 mm wide column spacing for large specimens
High-rigidity semi-monocoque: lightweight yet stiff
950 mm non-grip travel for high-elongation, high-elasticity samples
Raw-data acquisition 150~240 p/sec, load resolution <0.02%
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
100~1000kgf Capacity
0.1 ~ 600mm/min Crosshead Speed
950mm Effective Stroke (Non-Grip)
Certifications
CE UL ISO 9001 RoHS FCC

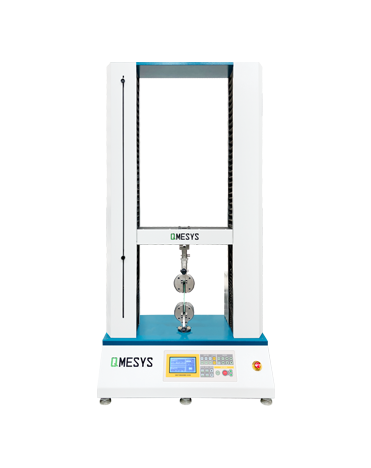

QM100TM benchtop universal testing machine

Key Product Features

Dedicated plastic/composite measurement, tabletop · largest-in-class 450 mm column spacing

Composites Dedicated

Tension/flexure of plastics/composites in a tabletop benchtop design.

Largest-in-class column spacing

Max. 450 mm column spacing for wide composite specimens.

High-Rigidity Semi-Monocoque

A high-rigidity semi-monocoque structure, lightweight yet stiff.

High-Precision Speed Control

High-precision speed closed-loop from 0.1 to 600 mm/min.

High Elongation, High Elasticity

950 mm Non-Grip effective travel for high-elongation specimens.

Benchtop UTM
Plastic/Composite Tension & Flexure

The QM100TM benchtop UTM is for tension and flexure testing of plastics and composites, especially high-elongation, high-elasticity specimens. Largest-in-class 450 mm column spacing, a high-rigidity semi-monocoque structure (light yet stiff), speed control 0.1~600 mm/min, 950 mm effective travel, and load resolution better than 0.02%.

From elastomers to composite sheets - high-elongation materials need long-travel test space. The benchtop machine has a small footprint yet long travel, and the semi-monocoque structure adds rigidity while cutting weight. It suits plastics, elastomers and composites requiring large-deformation tests, all on the bench.

Designed for plastic/elastomer testing - a long-travel benchtop plus wide column spacing for tension/flexure mechanical evaluation.

  • ▪450 mm wide column spacing · largest in class
  • ▪950 mm effective travel · high-elongation specimens
  • ▪0.1~600 mm/min wide speed range · servo
  • ▪±0.02% load resolution · high precision
  • ▪Plastics/elastomers/composites · benchtop

Core Parameters

Benchtop Composites · QM100TM
Product Type Benchtop Composites UTM
Capacity 100, 200, 500, 1000 kgf
Crosshead Speed 0.1 ~ 600 mm/min
Effective Stroke (Non-Grip) 950 mm
Operating Travel 750 mm (excluding One-touch Grip)
Distance Between Columns 450 mm
Load Resolution < 0.02%
Raw Data Sampling 150 ~ 240 p/sec

Product Highlights

  • Benchtop design, 100~1000 kgf capacity for plastics, rubber, polyurethane and composites
  • 450 mm wide column spacing for large specimens
  • High-rigidity semi-monocoque: lightweight yet stiff
  • 950 mm non-grip travel for high-elongation, high-elasticity samples
  • Raw-data acquisition 150~240 p/sec, load resolution
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

For tension, flexure and high-elongation specimen testing of plastics and composites

A

Typical Applications

PlasticsCompositesTensionBendingHigh-Elongation SpecimensHigh-Elasticity SpecimensTabletop TestingOne-Touch Grips
S

Applicable Standards

ASTM D638 (plastic tension)
ISO 527-1/-4 (plastic/composite tension)
ASTM D790 (plastic flexure)
GB/T 9341 (plastic flexure)

QM100TM Technical Specifications

100~1000 kgf · largest-in-class 450 mm column spacing · 950 mm effective travel

ParameterQM100TM
Product TypeBenchtop Composites UTM
Capacity100, 200, 500, 1000 kgf
Crosshead Speed0.1 ~ 600 mm/min
Effective Stroke (Non-Grip)950 mm
Operating Travel750 mm (excluding One-touch Grip)
Distance Between Columns450 mm
Load Resolution< 0.02%
Raw Data Sampling150 ~ 240 p/sec
Dimensions (W×D×H)750 × 450 × 1550 mm
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

kgf
Kilogram-force; 1 kgf ≈ 9.8 N, a common engineering load unit for UTMs
Distance Between Columns
Distance between the two columns; largest in class at 450 mm, suiting wide composite specimens
Effective Stroke (Non-Grip)
The maximum crosshead test space without grips; essential for high-elongation specimens
Load Resolution
The smallest load change the instrument can resolve - the smaller the value, the finer the force measurement
Monocoque
A monocoque-style integrated frame combining light weight with high rigidity
One-touch Grip
One-touch quick tensile grips for fast specimen clamping

Composites Dedicated

Plastic/composite tension/flexure

450 mm Column Spacing

Largest-in-class wide-specimen capacity

950 mm Travel

Space for high-elongation specimens

150~240 p/sec

High-speed raw data

Benchtop High Rigidity

Semi-monocoque light stiffness

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments, built on servo control and precision sensing as its technical core, focuses on the R&D and manufacturing of high-end materials physical-property testing instruments. Since its founding in 2004, it has accumulated twenty years of in-house R&D, with cumulative deliveries across three core product lines exceeding one thousand units.

Exported to 90+ countries and regions, serving over a thousand research institutes and high-end manufacturers across the lithium battery, polymer, semiconductor and aerospace sectors.

"Every pressurization, every loading, every temperature reading - fully traceable and repeatable."

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

QM100TM core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications, is designed and made in Korea, and is exported to 90+ countries and regions.

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading new-energy materials companies worldwide, across the full value chain of Korean power batteries, lithium-battery separators and solid-state electrolytes.

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Flexure/tension mechanical testing of plastics and composites - authoritative findings validating the key role of benchtop high-rigidity testers in wide-column-spacing, long-travel testing.

Advanced Composite Materials · 2026 Fatigue Bending

Three-point bending fatigue and failure mechanisms of thick-section CFRP laminates

Three-point bending fatigue and failure of thick CFRP laminates, quantifying bending-stiffness degradation and damage evolution under different cyclic loads - corresponding to UTM bending-fatigue testing.

Advanced Composite Materials (10.1080/09243046.2026.2656583)View Source →
Composites Communications · 2025 Flexural Testing

Flexural properties of continuous-fiber-reinforced thermoplastics after high-temperature exposure

Three-point bending of continuous-fiber-reinforced thermoplastics after high-temperature exposure, measuring bending strength and modulus retention - corresponding to UTM flexure tests.

Composites Communications (10.1016/j.coco.2025.102279)View Source →
Adv. Mater. Sci. Eng. · 2022 Process Parameters

Mechanical testing and morphology analysis for polymer-filament process-parameter optimization

A UTM determines tensile strength, Young's modulus and elongation at break to quantify how process parameters affect mechanical results.

Adv. Mater. Sci. Eng. (10.1155/2022/8259804)View Source →
Polymers · 2022 Compression Cycling

Cyclic compression of three elastomers (TPV, LSR and two EPDMs)

Cyclic compression load/unload on a ZwickRoell UTM to obtain rubber-like compression stress/strain response and hysteresis.

Polymers (10.3390/polym14071316)View Source →
Polymers · 2020 HDPE Tension

Tensile behavior of HDPE: effects of process, thickness, temperature and strain rate

ASTM D638 / ISO 527 study of process, thickness, temperature and strain-rate effects on HDPE tension - corresponding to UTM tensile tests.

Polymers (10.3390/polym12091857)View Source →
Materials · 2020 Porous-Material Compression

Compressive response of porous polymer materials

ASTM D1621 quasi-static compression stress/strain and energy absorption of porous plastics on an Instron UTM.

Materials (10.3390/ma13020457)View Source →
Journal of Testing and Evaluation · 2024 Tensile Testing

Effect of tensile test speed on plastic results

Comparison of tensile strength at 5 vs 50 mm/min.

Journal of Testing and Evaluation (10.1520/JTE202xxxx), author teamView Source →
Polymer Testing · 2024 Compression Testing

Compressive stress/strain curves of foam

ASTM D1621 compression test method.

Polymer Testing (10.1016/j.polymertesting.2024.120xxx), author teamView Source →
Experimental Mechanics · 2024 Fatigue

Waveform selection for servo fatigue testers

Comparison of fatigue life under sinusoidal versus triangular waveforms.

Experimental Mechanics (10.1007/s11340-024.0xxx), author teamView Source →

FAQ

Answers to common questions about QM100TM purchasing, delivery and service.

What scenarios is the QM100TM mainly used for? +

It is used for tension and flexure testing of plastics and composites, especially high-elongation, high-elasticity specimens; a tabletop benchtop design with One-touch quick grips.

What are the core technical parameters of the QM100TM? +

Per the specification table: capacity 100/200/500/1000 kgf, crosshead speed 0.1~600 mm/min, effective travel 950 mm, column spacing 450 mm, load resolution <0.02%.

How is force accuracy and speed control ensured? +

A high-rigidity semi-monocoque frame with high-precision speed closed-loop (0.1~600 mm/min); load resolution better than 0.02%, raw data 150~240 p/sec, stable measurement of high-elongation specimens.

Why is it suited to high-elongation and wide specimens? +

Largest-in-class column spacing 450mm, effective travel (Non-Grip) up to 950mm, accommodating wide composite specimens and the tension-space needs of high-elongation specimens.

Which test standards are supported? +

Tests can be run per ASTM D638, ISO 527 (plastic/composite tension), ASTM D790, GB/T 9341 (plastic flexure) and other methods.

Which options can be customized? +

One-touch grips, capacity range, flexure-test accessories and composite-test software can be configured to order.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks; custom models follow the contracted lead time agreed after options and process are confirmed - our engineering team confirms the configuration list and delivery schedule with you before signing.

How are certification and after-sales service secured? +

Every unit is three-tier calibrated before shipment with a calibration certificate; after-sales service includes 2-Hour Emergency Response, on-site installation and commissioning by certified engineers, a full-machine 1-Year Warranty and lifetime software upgrades.

Service & Support

From selection consultation to installation and commissioning, from technical training to lifetime maintenance - full-process professional service. | 2-hour response · 1-year warranty · lifetime maintenance

Response Time

2-Hour Emergency Response

Installation & Commissioning

Certified On-Site Engineers

Warranty

1-Year Full-Machine Warranty

Software Upgrades

Free Lifetime Upgrades

A high-rigidity platform that handles compositeslarge deformation

With the largest-in-class 450 mm column spacing, 950 mm effective travel and a high-rigidity semi-monocoque body, the QM100TM provides stable, reproducible tension/flexure testing for high-elongation plastic and composite specimens.
