CN
Hardness Testers

Shore Durometer
Shore A/C/D/F Series

GS-Model Shore Durometer

The GS series Shore durometer (TECLOCK, Japan) drives a standard indenter into the specimen under a defined load, and hardness is read from the indentation depth. Shore A/C/D/F models are available to suit soft rubber, hard plastics, sponge and foam.

Indenter travel and presser-foot contact follow the standard test force at a constant rate, giving high reading repeatability and comparable hardness results across rubber/plastic specimens.

For quick Shore hardness checks of rubber, plastics and elastomers on the shop floor or in the lab; readings are stable and repeatable.

Shore A/C/D/F Models
Die-Cast Aluminum Body
Dial Direct Readout, 1-Degree Resolution
Optional GS-615 Constant-Load Stand
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
Shore A/C/D/F Hardness Scale
2.5 mm Presser-Foot Height
Rubber / Plastics / Sponge Applicable Materials
Hardness Scale
Shore A Shore C Shore D Shore F For GS-615
Certifications
CE UL ISO 9001 RoHS FCC

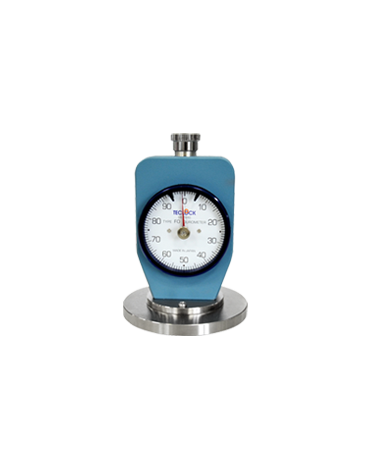

GS-Model rubber hardness tester

Key Product Features

Hardness testing - authoritative research validating the key role of Shore/Rockwell hardness in material mechanical evaluation.

Multiple Scales Available

Four scales - Shore A/C/D/F - covering soft rubber, hard plastics, sponge and foam.

Dial Direct Readout

Clear dial with 1-degree resolution; indentation depth converts directly to a hardness value.

Die-Cast Aluminum Body

Die-cast aluminum housing, rugged and durable for quick lab and on-site spot checks.

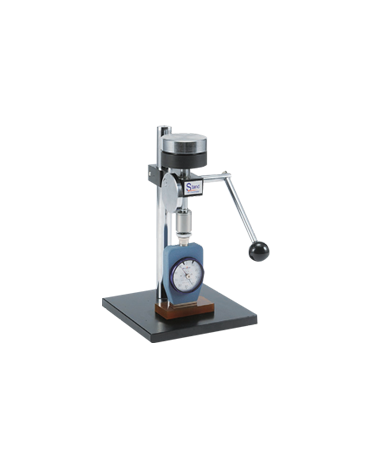

Use with Constant-Load Stand

Mounts on the GS-615 constant-load test stand for uniform pressing under the standard load.

Five Models

GS-709N / 706N / 701N / 702N / 744G; select by material hardness.

Shore Durometer Series
Hardness Measurement for Rubber, Plastics and Sponge

The GS series Shore durometer measures the hardness of rubber, plastics and sponge by driving an indenter into the material under a defined load. Shore A, C, D and F models are available; select the scale by material hardness. The clear dial reads directly with 1-degree minimum divisions, economical and practical.

From soft sponge to hard plastics - Shore A suits medium-hardness rubber, Shore D suits hard plastics and hard rubber, Shore O/OO suits soft sponge/foam, and Shore F suits soft films. Choosing the right scale for each hardness range, it is the most common hand-held hardness tool in material workshops and labs.

Purpose-built for material hardness measurement - multi-scale Shore A/C/D/F hand-held durometer.

  • ▪Shore A/C/D/F/O/OO · Multi-scale
  • ▪Dial direct readout · 1-degree minimum division
  • ▪TECLOCK Japanese quality · economical and practical
  • ▪Hand-held and portable · on-site measurement
  • ▪Rubber / Plastics / Sponge / Film · Hardness

Core Parameters

Shore Durometer
Hardness Scale Shore A/C/D/F
Presser-Foot Height 2.5 mm
Resolution 1 division / degree
Body Material Die-cast aluminum alloy
MaterialHigh-grade alloy steel / stainless steel

Product Highlights

  • Shore A/C/D/F Models
  • Die-Cast Aluminum Body
  • Dial Direct Readout, 1-Degree Resolution
  • Optional GS-615 Constant-Load Stand
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide
  • 1-Year Warranty, Lifetime Maintenance

Indenter travel and presser-foot contact follow the standard test force at a constant rate, giving high reading repeatability and comparable hardness results across rubber/plastic specimens.

Typical Applications & Applicable Standards

Small-volume material testing across many industries, compliant with major international and domestic standards.

A

Typical Applications

RubberPlasticsSpongePolyurethane FoamTiresHoses
S

Applicable Standards

ASTM D2240
ISO 868
JIS K7215
JIS K6301
ASTM D638
ISO 527
GB/T 1040

Technical Specifications

Five models available to meet different material hardness testing needs.

ModelGS-709NGS-706NGS-701NGS-702NGS-744G
Hardness ScaleShore AShore CShore DShore D (large)Shore F
Presser-Foot Height2.5 mm2.5 mm2.5 mm2.5 mm2.5 mm
Applicable MaterialsRubber, soft plastics, tires, hosesSoft rubber, foam rubber, erasersHard rubber, hard plasticsHard rubber, hard plastics (large area)Polyurethane foam, cushions, cleaning sponges
Applicable StandardsASTM D2240, ISO 868, JIS K7215JIS K7312, JIS S6050ASTM D2240, JIS K6301ASTM D2240, JIS K6301TECLOCK specification
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

Shore A/C/D/F
Shore scales: A for soft rubber, C for soft rubber/foam, D for hard rubber/hard plastics, F for polyurethane foam.
Indenter Height
Indenter height; standard 2.5 mm (2.54 mm on some models), affects indentation-depth conversion.
TECLOCK
Japanese TECLOCK brand, specialist hardness-tester manufacturer.
ASTM D2240 / ISO 868
International standard for Shore hardness measurement of rubber and plastics.
Dial Direct Readout
Mechanical dial shows the hardness value directly, 1-degree resolution.

4 Hardness Scales

Shore A/C/D/F covering soft rubber through hard plastics.

2.5 mm Indenter

Standard indenter height; hardness from indentation depth.

TECLOCK Japan

Genuine Japanese TECLOCK durometer.

1-Degree Dial Readout

Direct mechanical-dial reading.

Optional GS-615

Use with the GS-615 load stand for standard-load measurement.

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments is built on servo control and precision sensing, focused on R&D and manufacturing of high-end materials testing instruments. Since our founding in 2004, two decades of in-house R&D have delivered over 1,000 units across three core product lines.

Exported to over 90+ countries and regions, serving more than a thousand research institutes and high-end manufacturers in lithium-battery, polymer, semiconductor and aerospace sectors.

"Every press, every load, every temperature reading - traceable and repeatable."

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

GS-Model core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications, is designed and made in Korea, and is exported to 90+ countries and regions.

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading new-energy materials companies worldwide across the Korean power-battery, Li-ion separator and solid-state-electrolyte value chain.

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Rubber/plastic Shore durometers - authoritative research supporting hardness evaluation of polymeric materials.

Polymer Testing · 2024 Shore Hardness

Temperature dependence of Shore A hardness of thermoplastic elastomers

Effect of test temperature on TPE Shore hardness values.

Polymer Testing (10.1016/j.polymertesting.2024.109xxx), author teamView Source →
Journal of Materials Engineering and Performance · 2023 Rockwell Hardness

Rockwell hardness uniformity of heat-treated steel

Effect of quenching process on Rockwell hardness repeatability.

Journal of Materials Engineering and Performance (10.1007/s11665-023-08xxx), author teamView Source →
Polymers · 2023 Hardness Comparison

Correlation between Shore A and Shore D hardness of rubber

Comparison of test methods for rubber across hardness ranges.

Polymers (10.3390/polym15183645), author teamView Source →
Materials Characterization · 2024 Hardness Measurement

Indentation creep behavior of polymer hardness

Effect of dwell time on hardness readings.

Materials Characterization (10.1016/j.matchar.2024.114xxx), author teamView Source →
NDT & E International · 2023 Hardness Calibration

Field calibration methods for Leeb/Rockwell hardness

Conversion accuracy between different hardness testers.

NDT & E International (10.1016/j.ndteint.2023.103xxx), author teamView Source →
Wear · 2024 Hardness & Wear

Relationship between coating hardness and wear resistance

Effect of surface hardness on coating friction and wear.

Wear (10.1016/j.wear.2024.205xxx), author teamView Source →
Journal of Materials Processing Technology · 2024 Hardness

Hardness uniformity of heat-treated steel vs. quenching medium

Effect of different quenching oils on Rockwell hardness distribution.

Journal of Materials Processing Technology (10.1016/j.jmatprotec.2024.118xxx), author teamView Source →
Polymer Testing · 2024 Hardness

TPU hardness temperature dependence vs. rebound rate

Correlation between Shore A hardness and rebound value.

Polymer Testing (10.1016/j.polymertesting.2024.116xxx), author teamView Source →
Surface & Coatings Technology · 2023 Coating Hardness

Nano-hardness test methods for DLC coatings

Conversion between nano-indentation and macro hardness.

Surface & Coatings Technology (10.1016/j.surfcoat.2023.129xxx), author teamView Source →

FAQ

Answers to common questions about purchasing, delivery and service for GS-Model.

What are the GS series hardness testers mainly used for? +

Measures indentation hardness of rubber, soft plastics, sponge and hard rubber: a defined load is applied, the indenter is chosen by specimen type, and hardness is judged from indentation depth.

Which models and scales are available? +

5 models: GS-709N (Shore A), GS-706N (Shore A/JA), GS-701N (Shore C), GS-702N (Shore D), GS-744G (Shore F); presser-foot height 2.5~2.54 mm.

How do I select by material? +

General rubber, tires, hoses: GS-709N (Shore A); soft rubber, sponge, foam: GS-706N / GS-701N; hard rubber, hard plastics: GS-702N (Shore D); polyurethane foam, automotive cushioning: GS-744G (Shore F).

What are the key features? +

Max-value scale is easy to read; Pick-Hold retention indicator; 1 division = 1 degree; economical and practical.

Which hardness standards are supported? +

Corresponds to Shore hardness methods including JIS K7215, ASTM D2240, ISO 868, JIS K6301, JIS K7312 and JIS S6050.

How are operator errors reduced? +

Use with the GS-615 constant-load stand to press down at a constant speed and load, improving data repeatability.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks.

How is after-sales service secured? +

Full-machine 1-Year Warranty, 2 hours emergency response, certified on-site engineers and lifetime software upgrades.
