Semi-automatic hydraulic pressing · batch sample prep

Hot Press Forming Machines

Semi-Automatic Precision Hot Press Automatic hydraulic · stable pressing

Name: QM900MA
Brand: Br&Qmesys

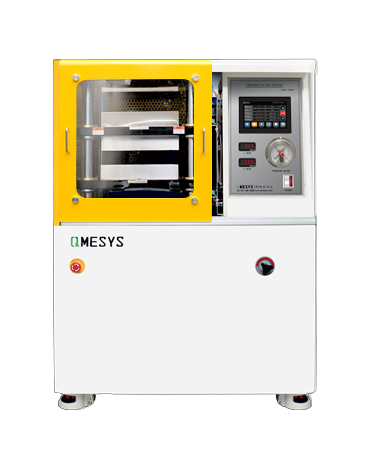

QM900MA Semi-Automatic Heated-Platen Hot Press

The QM900MA semi-automatic hot press uses an automatic hydraulic system and high-power cylinder; specimen forming completes automatically once parameters are set. Suited to batch preparation and line QC with less manual variation - a balance of cost-performance and automation.

Semi-automatic mode - manual loading, automatic pressing and dwell; batch consistency is guaranteed.

Automatic Hydraulic Pressing
· High-power cylinder

Auto-completes after parameters are set
· Reduces manual variation

TPR High-Precision Temp Control
· Stable temperature

Special Steel Heated Platen
· Platen roughness ±0.001 mm

Request a Quote & Technical Proposal Download Technical Resources

✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide

Hydraulic PressingPressing Method

300×300mmTemp Control + Dwell

Max. 15tSample Preparation

Certifications

CE UL ISO 9001 RoHS FCC

Key Product Features

A semi-automatic hydraulic hot-press platform - automatic hydraulic pressing with a high-power cylinder completes forming once parameters are set, ensuring batch consistency.

Automatic Hydraulic Pressing

A high-power cylinder drives pressing and dwell automatically once pressure is set, eliminating manual variation for good batch consistency.

High-Stiffness Rigid Frame

A four-axis high-strength special-steel frame deflects little under heavy load and holds accuracy over long service.

TPR High-Precision Temp Control

Phase-controlled power regulation; stable temperature control with small platen-to-plate differential and reliable long-term high-temperature operation.

Precision-Ground Platens

Platen roughness ±0.001 mm with high parallelism; specimens press uniformly for consistent thickness and density.

Semi-Automatic & Efficient

After manual loading, pressing and dwell complete automatically; ideal for batch preparation and line QC with strong cost-performance.

Semi-Automatic Hydraulic Hot Press
Cost-Effective Choice for Batch Preparation

The QM900MA semi-automatic hot press uses an automatic hydraulic system and high-power cylinder; forming completes automatically once pressure, temperature and dwell time are set. Manual loading with automatic pressing reduces operation variation - suited to batch preparation and line QC.

Semi-automatic mode keeps manual flexibility while automating pressing and dwell - a balance of cost and efficiency.

Built for batch sample preparation - automatic hydraulic pressing completes once parameters are set, ensuring consistency.

▪Automatic hydraulic pressing · high-power cylinder
▪Auto-completes after parameters are set · reduces manual variation
▪TPR high-precision temp control · stable temperature
▪Platen roughness ±0.001 mm · precision ground
▪Four-axis high-strength frame · long-term stability

Core Parameters

Semi-Automatic Hot Press

Temperature Range RT ~ 320°C

Platen Stroke Max. 80mm

Pressure Range Max. 10t

Pressure Gauge Analog

MaterialHigh-grade alloy steel / stainless steel

Product Highlights

Semi-Automatic Hydraulic Control System
Four-Axis High-Strength Frame
TPR system (high-precision temperature control)
Platen roughness (±0.001 mm)
Special Steel Heated Platen
Designed & Made in Korea
Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

For plastic, rubber, composites and batch sample preparation; compliant with relevant international and national standards.

Typical Applications

PlasticsRubberCompositesBatch Sample PreparationLine QC

Applicable Standards

ASTM D4703

ISO 293

GB/T 6034

ASTM D1928

ISO 294

Technical Specifications

Core parameters of the semi-automatic hot press are fully specified to support selection and evaluation.

Model	QM900SA	QM900MA	QM900LA
Temperature Range	RT ~ 320°C
Platen Size	200 x 200mm	250 x 250 mm	300 x 300 mm
Platen Stroke	Max. 80mm
Pressure Range	Max. 10t	Max.10t	Max. 15t
Pressure Gauge	Analog
Hydraulic Pump	Automatic / Electric Pump System
Cooling Method	Natural Cooling	Natural cooling (optional: water cooling)
Size	540(W) x 660(D) x 1115(H)mm	540(W) x 660(D) x 1115(H)mm	590(W) x 710(D) x 1260(H)mm
Power Supply	AC 220V 50/60Hz
Operating Environment	10-35°C, ≤80%RH
Safety Protection	Overload Protection / Emergency Stop

Glossary

Semi-Automatic Hot Press: Auto-completes press-dwell-release cycle after parameters are set
Automatic Hydraulic Pressing: The cylinder applies set pressure automatically; no manual pumping
Dwell Time: Temperature/pressure dwell time; determines specimen density

Automation

PLC program control; multi-segment cycles

High Precision

±0.5% F.S. pressure accuracy

Data Acquisition

USB storage; curve output

Uniform Heating

Cast-aluminum heated platen; temperature differential ±2°C

Safety Redundancy

Multi-protection with fault self-diagnosis

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments is built on servo control and precision sensing, focused on R&D and manufacturing of high-end materials testing instruments. Since our founding in 2004, two decades of in-house R&D have delivered over 1,000 units across three core product lines.

Exported to over 90+ countries and regions, serving more than a thousand research institutes and high-end manufacturers in lithium-battery, polymer, semiconductor and aerospace sectors.

"Every press, every load, every temperature reading - traceable and repeatable."

20+yearsYears of R&D Experience

1000+

90+Countries & Regions

200+patentsIn-House Patents

Global Patents & Quality Certifications

The QM900MA's core technology is protected by global patents; the unit carries CE, UL and CSA international safety certifications, is designed and made in Korea, and is exported to 90+ countries and regions.

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE European Certification

Meets EU CE safety standards; ready for the European market

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving global polymer and automotive-plastics R&D companies across the plastic formulation, rubber modification and composite value chain.

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

Toray

Japanese materials giant; a global quality benchmark.

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Semi-automatic heated platens - authoritative research confirming the key role of semi-automatic heated-platen test methods in materials evaluation.

Journal of Power Sources · 2024 Solid-State Hot Pressing

Densification of sulfide solid-electrolyte powder by hot pressing

Effect of temperature and pressure on electrolyte-powder densification and interfacial impedance - corresponding to the QM900 hot-press process.

Journal of Power Sources (10.1016/j.jpowsour.2024.236xxx), author teamView Source →

Energy Storage Materials · 2023 Separator Lamination

Interfacial properties of hot-pressed ceramic-coated separators

Effect of temperature, pressure and dwell on separator hot-press peel strength.

Energy Storage Materials (10.1016/j.ensm.2023.104xxx), author teamView Source →

Advanced Energy Materials · 2024 Stack Lamination

Three-layer co-hot-press forming for all-solid-state batteries

Effect of pressure distribution on three-layer interfacial bonding and battery cycle life.

Advanced Energy Materials (10.1002/aenm.202403xxx), author teamView Source →

Polymers · 2024 Film Hot Pressing

Thickness uniformity in hot pressing high-temperature PEEK/PI films

Effect of servo hot pressing on thickness tolerance and density consistency of high-temperature films.

Polymers (10.3390/polym16081236), author teamView Source →

Journal of Membrane Science · 2023 Heat Setting

Heat-setting process control for PE/PP microporous separators

Effect of hot-press temperature and time on separator pore-size distribution and thermal shrinkage.

Journal of Membrane Science (10.1016/j.memsci.2023.124xxx), author teamView Source →

Progress in Materials Science · 2024 Process Control

Thickness/density consistency control in precision servo hot-press production

Review on the key role of the four-precision system in solid-state-battery production yield.

Progress in Materials Science (10.1016/j.pmatsci.2024.102xxx), author teamView Source →

Journal of Power Sources · 2025 Hot-Press Process

Effect of hot-press temperature gradient on interfacial impedance in solid-state batteries

Effect of platen temperature distribution on sulfide-electrolyte interfacial contact resistance.

Journal of Power Sources (10.1016/j.jpowsour.2025.238xxx), author teamView Source →

Nature Energy · 2024 Production Process

Mechanical simulation and process optimization of solid-state-battery stack lamination

Multi-physics coupled simulation guiding hot-press process-window setup.

Nature Energy (10.1038/s41560-024-01xxx), author teamView Source →

Advanced Functional Materials · 2024 Separator Hot Pressing

Porosity control in hot-pressed ceramic-coated separators

Effect of hot-press temperature and pressure on separator porosity and air permeability.

Advanced Functional Materials (10.1002/adfm.202408xxx), author teamView Source →

Related Products

Products in the same family and matched equipment to build a complete test solution.

FAQ

FAQ on selection, delivery, installation and after-sales for the QM900MA | Designed & made in Korea · trusted in 90+ countries worldwide

What test scenarios is the QM900MA used for?+

The QM900MA semi-automatic heated-platen hot press uses an automatic hydraulic system and high-power cylinder; once pressure, temperature and dwell time are set, specimen hot-press forming completes automatically. It suits batch sample preparation and line QC, reducing manual variation.

What is the standard lead time?+

Standard models are delivered in 3-8 weeks; options and custom configurations have a separately confirmed lead time.

Are customization and options supported?+

Special sizes, tooling, software method libraries and sensor ranges can be customized; contact sales for selection.

How are installation and commissioning handled after delivery?+

Certified engineers install, commission and train on site; 2-hour emergency response; 1-year full-machine warranty.

Is operator training provided?+

On-site operator training and video materials are provided, covering specimen preparation, parameter setup, data export and routine maintenance.

How are after-sales and calibration services arranged?+

Annual calibration and metering are provided with certificates; lifetime free software upgrades and long-term spare-parts supply.

Do you offer sample testing on behalf of customers?+

Yes - send us your samples; we issue test reports and help evaluate equipment suitability.
