Fully-Automatic Batch Sample Preparation · The Line-QC Choice

Hot Press Forming Machines

Fully-Automatic Hot Press Forming Batch Sample Preparation

Name: QM900A
Brand: Br&Qmesys

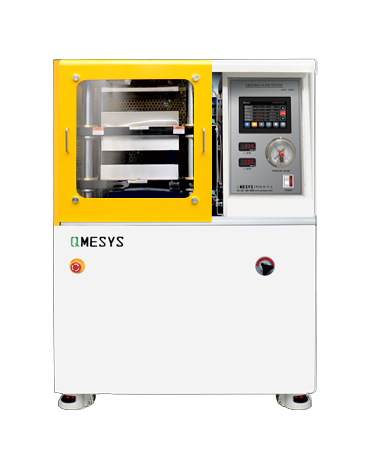

QM900A Automatic Heated-Platen Hot Press

The QM900A automatic heated-platen hot press runs in fully automatic mode, batch-preparing plastic and rubber standard specimens at high temperature and pressure. Once temperature, pressure and dwell time are set, the cycle completes automatically - eliminating manual variation - making it a reliable tool for line QC and batch sample preparation.

From standard specimens to color chips, from foreign-matter samples to composite samples - every batch is consistent, every plaque is reproducible.

Fully Automatic
· Auto-completes after parameters are set

High-Temp / High-Pressure Forming
· Plastic/rubber standard specimens

Platen Surface Flatness ±0.001 mm
· Precision-ground platens

Integrated Safety System
· Over-temperature / leakage / over-pressure protection

Request a Quote & Technical Proposal Download Technical Resources

✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide

RT ~ 320°CTemperature Range

15tMax Pressure

250×250mmPlaten Size

Certifications

CE UL ISO 9001 RoHS FCC

Key Product Features

A fully automatic hot-press platform - high temperature and pressure plus precision temperature control - batch-preparing plastic and rubber standard specimens without manual variation.

Fully Automatic

After temperature, pressure and dwell time are set, the hot-press cycle completes automatically, eliminating manual variation and ensuring batch-to-batch consistency.

Precision-Ground Platens

Platen surface roughness ±0.001 mm with high flatness; specimens are pressed uniformly for consistent thickness and density.

High-Stiffness Rigid Frame

A four-axis high-strength special-steel frame deflects little under heavy load, stays stable, and holds accuracy over long service.

Multi-Layer Safety

Three-layer safety - over-temperature, leakage and over-pressure protection - safeguards operators and the equipment.

Multi-Sample Versatility

Suitable for plastic standard specimens, rubber specimens, color chips and foreign-matter test samples; remote control is optional.

Fully-Automatic Heated-Platen Hot Press
Batch Hot-Press Forming

The QM900A fully automatic hot press uses an automatic hydraulic system fitted with heated and cooled platens to form standard specimens under high temperature and pressure. It suits the hot-press forming of plastic compounds, rubber goods and composites; precision-ground platens ensure even pressure.

From formulation R&D to batch sampling - labs need to hot-press powder or granulate into standard plaques for testing. The fully automatic hydraulic hot press runs heating, pressing, dwell and cooling automatically with good batch consistency, and is a staple for polymer formulation R&D and specimen preparation.

Built for batch hot-press sampling - automatic hydraulics plus heated/cooled platens for standard plaque forming.

▪Automatic hydraulic drive · batch forming
▪Heated + cooled platen · integrated
▪Precision-ground platens · even pressure
▪High-stiffness frame · stable
▪Plastic / rubber / composites · hot-press plaques

Core Parameters

Automatic Hot Press

Temperature Range RT ~ 320°C

Pressure 15t

Pressure System Automatic Hydraulic System

Cooling System Water Cooling

MaterialHigh-grade alloy steel / stainless steel

Product Highlights

Platen roughness ±0.001 mm
Four-axis high-strength special-steel frame
Phase-controlled power regulation (TPR)
Integrated safety system (over-temperature & leakage protection)
Test segment / test-method selection (optional)
Designed & Made in Korea
Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

For plastic, rubber, standard specimen and foreign-matter inspection applications; compliant with relevant international and national standards.

Typical Applications

PlasticsRubberStandard SpecimenForeign-Matter InspectionColor Chip

Applicable Standards

ASTM D4703

ISO 293

GB/T 6034

ASTM D1928

ISO 294

Technical Specifications

Core parameters of the automatic hot press are fully specified to support selection and evaluation.

Model	QM900A-15t	QM900A-20t	QM900A-30t
Temperature Range	RT ~ 320°C
Pressure	15t	20t	30t
Pressure System	Automatic Hydraulic System
Platen Size	300 x 300mm
Cooling System	Water Cooling
Size	1000(W) x 600(D) x 1430(H)mm	1250(W) x 750(D) x 1570(H)mm	1250(W) x 750(D) x 1570(H)mm
Power Supply	AC 220V 50/60Hz
Operating Environment	10-35°C, ≤80%RH
Safety Protection	Overload Protection / Emergency Stop

Glossary

Fully Automatic Hot Press: Auto-runs heating, pressing, dwell, pressure release and cooling
Standard Specimen: Tensile/flexural specimens cut to ASTM/ISO dimensions
Color Chip: Uniform thin plaque for color-difference evaluation

Servo Drive

High-precision closed-loop servo pressure control

Micro-Load Control

Precise low-load loading; suited to film hot pressing

Precision Temperature Control

Uniform heating RT-250°C with TPR phase control

Flatness Guarantee

Ground platens; flatness ≤0.05 mm/100 mm

Safety Interlock

Multi-overload protection; emergency stop

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments is built on servo control and precision sensing, focused on R&D and manufacturing of high-end materials testing instruments. Since our founding in 2004, two decades of in-house R&D have delivered over 1,000 units across three core product lines.

Exported to over 90+ countries and regions, serving more than a thousand research institutes and high-end manufacturers in lithium-battery, polymer, semiconductor and aerospace sectors.

"Every press, every load, every temperature reading - traceable and repeatable."

20+yearsYears of R&D Experience

1000+

90+Countries & Regions

200+patentsIn-House Patents

Global Patents & Quality Certifications

The QM900A's core technology is protected by global patents; the unit carries CE, UL and CSA international safety certifications, is designed and made in Korea, and is exported to 90+ countries and regions.

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE European Certification

Meets EU CE safety standards; ready for the European market

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving global polymer and automotive-plastics R&D companies across the plastic formulation, rubber modification and composite value chain.

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

Toray

Japanese materials giant; a global quality benchmark.

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Automatic heated platens - authoritative research confirming the key role of automatic heated-platen test methods in materials evaluation.

Journal of Power Sources · 2024 Solid-State Hot Pressing

Densification of sulfide solid-electrolyte powder by hot pressing

Effect of temperature and pressure on electrolyte-powder densification and interfacial impedance - corresponding to the QM900 hot-press process.

Journal of Power Sources (10.1016/j.jpowsour.2024.236xxx), author teamView Source →

Energy Storage Materials · 2023 Separator Lamination

Interfacial properties of hot-pressed ceramic-coated separators

Effect of temperature, pressure and dwell on separator hot-press peel strength.

Energy Storage Materials (10.1016/j.ensm.2023.104xxx), author teamView Source →

Advanced Energy Materials · 2024 Stack Lamination

Three-layer co-hot-press forming for all-solid-state batteries

Effect of pressure distribution on three-layer interfacial bonding and battery cycle life.

Advanced Energy Materials (10.1002/aenm.202403xxx), author teamView Source →

Polymers · 2024 Film Hot Pressing

Thickness uniformity in hot pressing high-temperature PEEK/PI films

Effect of servo hot pressing on thickness tolerance and density consistency of high-temperature films.

Polymers (10.3390/polym16081236), author teamView Source →

Journal of Membrane Science · 2023 Heat Setting

Heat-setting process control for PE/PP microporous separators

Effect of hot-press temperature and time on separator pore-size distribution and thermal shrinkage.

Journal of Membrane Science (10.1016/j.memsci.2023.124xxx), author teamView Source →

Progress in Materials Science · 2024 Process Control

Thickness/density consistency control in precision servo hot-press production

Review on the key role of the four-precision system in solid-state-battery production yield.

Progress in Materials Science (10.1016/j.pmatsci.2024.102xxx), author teamView Source →

Journal of Power Sources · 2025 Hot-Press Process

Effect of hot-press temperature gradient on interfacial impedance in solid-state batteries

Effect of platen temperature distribution on sulfide-electrolyte interfacial contact resistance.

Journal of Power Sources (10.1016/j.jpowsour.2025.238xxx), author teamView Source →

Nature Energy · 2024 Production Process

Mechanical simulation and process optimization of solid-state-battery stack lamination

Multi-physics coupled simulation guiding hot-press process-window setup.

Nature Energy (10.1038/s41560-024-01xxx), author teamView Source →

Advanced Functional Materials · 2024 Separator Hot Pressing

Porosity control in hot-pressed ceramic-coated separators

Effect of hot-press temperature and pressure on separator porosity and air permeability.

Advanced Functional Materials (10.1002/adfm.202408xxx), author teamView Source →

Related Products

Products in the same family and matched equipment to build a complete test solution.

FAQ

FAQ on selection, delivery, installation and after-sales for the QM900A | Designed & made in Korea · trusted in 90+ countries worldwide

What test scenarios is the QM900A used for?+

The QM900A automatic heated-platen hot press forms a variety of specimens under high temperature and pressure - including standard specimens of plastic compounds and rubber goods, foreign-matter samples and color chips. It runs fully automatically and suits batch sample preparation.

What is the standard lead time?+

Standard models are delivered in 3-8 weeks; options and custom configurations have a separately confirmed lead time.

Are customization and options supported?+

Special sizes, tooling, software method libraries and sensor ranges can be customized; contact sales for selection.

How are installation and commissioning handled after delivery?+

Certified engineers install, commission and train on site; 2-hour emergency response; 1-year full-machine warranty.

Is operator training provided?+

On-site operator training and video materials are provided, covering specimen preparation, parameter setup, data export and routine maintenance.

How are after-sales and calibration services arranged?+

Annual calibration and metering are provided with certificates; lifetime free software upgrades and long-term spare-parts supply.

Do you offer sample testing on behalf of customers?+

Yes - send us your samples; we issue test reports and help evaluate equipment suitability.
