Packaging heat-seal quality evaluation · custom molds

Hot Press Forming Machines

Heat-Seal Performance Test Programmable · Custom Molds

Name: QM940F
Brand: Br&Qmesys

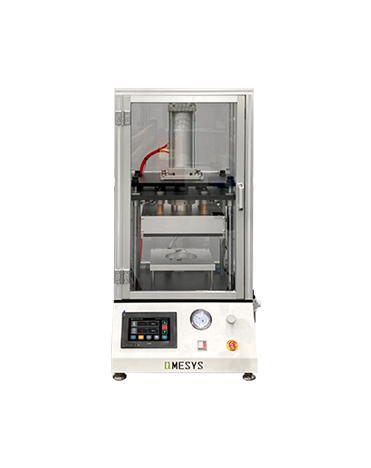

QM940F Heat-Seal Tester

The QM940F evaluates seal performance and condition by the product's shape after heat sealing. Exchangeable custom heated molds with programmable pressure, temperature and time support heat-seal quality evaluation for different package types - an essential tool for packaging-material R&D and QC.

From flexible packaging to irregular containers - custom molds and programmable heat-seal parameters for quantitative seal-quality evaluation.

Teflon-Coated Heated Platen
· Anti-stick seal

Programmable Pressure / Temperature / Time
· Process-parameter reproduction

Custom Heated Molds
· Fits different packages

Test-Method Storage
· One-key recall

Request a Quote & Technical Proposal Download Technical Resources

✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide

RT~250°CTemperature Range

±0.1°CTemperature Accuracy

350kgf/cm²Max Pressure

Certifications

CE UL ISO 9001 RoHS FCC

Key Product Features

A programmable heat-seal platform - full pressure/temperature/time programming with custom molds for seal evaluation across package types.

Teflon-Coated Heated Platen

Teflon coating prevents sticking; small platen-to-platen differential and stable long-term high-temperature operation ensure consistent seal quality.

TPR Temperature-Control System

The phase-controlled power system precisely controls heating temperature with smooth ramp and small fluctuation.

Three Programmable Parameters

Pressure, temperature and time - the three key process parameters - are centrally programmed for intuitive operation and reproducible processes.

Method Storage/Recall

Test methods and parameters can be saved and recalled; batch testing needs no re-setup, and data is traceable.

Custom Heated Molds

Heated molds are customized to the container design and package shape, suiting flexible packaging, irregular containers and other seal forms.

Packaging Heat-Seal Test
Quantitative Seal-Quality Evaluation

The QM940F evaluates seal performance and condition by the product's shape after heat sealing. Exchangeable custom heated molds with fully programmable pressure/temperature/time support heat-seal quality evaluation for different package types.

From flexible packaging to irregular containers - custom molds and programmable heat-seal parameters make seal quality quantifiable and reproducible.

Built for packaging seal-quality evaluation - three programmable parameters and custom molds for all package types.

▪Teflon-coated heated platen · anti-stick seal
▪Programmable pressure/temperature/time · process reproduction
▪Custom heated molds · fit different packages
▪Test-method storage · one-key recall
▪TPR temp control · stable temperature

Core Parameters

Heat-Seal Tester

Temperature Range RT ~ 250°C

Temperature Accuracy ± 0.1°C at 150°C

Pressure Range Max. 350kgf/cm²

MaterialHigh-grade alloy steel / stainless steel

AccuracyCompliant with ISO/ASTM standards

Product Highlights

Fitted with a high-pressure pneumatic cylinder and Teflon-coated heated platen
Adjustable TPR Power System
Easily controls pressure, temperature and time
Standard test-method memory function
Fixtures customized to container design and shape
Designed & Made in Korea
Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

For packaging, film sealing, food packaging and pharmaceutical packaging; compliant with relevant international and national standards.

Typical Applications

PackagingFilm SealingFood PackagingPharmaceutical Packaging

Applicable Standards

ASTM F2029

ASTM F88

GB/T 23510

GB/T 23511

Technical Specifications

Core parameters of the heat-seal tester are fully specified to support selection and evaluation.

Model	QM940F
Temperature Range	RT ~ 250°C
Temperature Accuracy	± 0.1°C at 150°C
Pressure Range	Max. 350kgf/cm²
Size	530(W) x 545(D) x 1110(H)mm
Power Supply	AC 220V 50/60Hz
Operating Environment	10-35°C, ≤80%RH
Safety Protection	Overload Protection / Emergency Stop

Glossary

Heat Sealing: Two films are fused and sealed by heat and pressure
Seal Strength: Seal Peel Force
Heat-Seal Parameters: Three Elements: Temperature, Pressure, Time

Precision Heating

Uniform temperature field; suited to film tests

Digital Temperature Control

PID auto-tuning; ±1°C accuracy

Compact Design

Benchtop; suited to materials R&D

Safety Protection

Heat-insulating housing; emergency stop

Flexible Configuration

Optional vacuum platen and remote control

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments is built on servo control and precision sensing, focused on R&D and manufacturing of high-end materials testing instruments. Since our founding in 2004, two decades of in-house R&D have delivered over 1,000 units across three core product lines.

Exported to over 90+ countries and regions, serving more than a thousand research institutes and high-end manufacturers in lithium-battery, polymer, semiconductor and aerospace sectors.

"Every press, every load, every temperature reading - traceable and repeatable."

20+yearsYears of R&D Experience

1000+

90+Countries & Regions

200+patentsIn-House Patents

Global Patents & Quality Certifications

The QM940F's core technology is protected by global patents; the unit carries CE, UL and CSA international safety certifications, is designed and made in Korea, and is exported to 90+ countries and regions.

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE European Certification

Meets EU CE safety standards; ready for the European market

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving global polymer and automotive-plastics R&D companies across the plastic formulation, rubber modification and composite value chain.

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

Toray

Japanese materials giant; a global quality benchmark.

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Heat sealing - authoritative research confirming the key role of heat-seal test methods in materials evaluation.

Journal of Power Sources · 2024 Solid-State Hot Pressing

Densification of sulfide solid-electrolyte powder by hot pressing

Effect of temperature and pressure on electrolyte-powder densification and interfacial impedance - corresponding to the QM900 hot-press process.

Journal of Power Sources (10.1016/j.jpowsour.2024.236xxx), author teamView Source →

Energy Storage Materials · 2023 Separator Lamination

Interfacial properties of hot-pressed ceramic-coated separators

Effect of temperature, pressure and dwell on separator hot-press peel strength.

Energy Storage Materials (10.1016/j.ensm.2023.104xxx), author teamView Source →

Advanced Energy Materials · 2024 Stack Lamination

Three-layer co-hot-press forming for all-solid-state batteries

Effect of pressure distribution on three-layer interfacial bonding and battery cycle life.

Advanced Energy Materials (10.1002/aenm.202403xxx), author teamView Source →

Polymers · 2024 Film Hot Pressing

Thickness uniformity in hot pressing high-temperature PEEK/PI films

Effect of servo hot pressing on thickness tolerance and density consistency of high-temperature films.

Polymers (10.3390/polym16081236), author teamView Source →

Journal of Membrane Science · 2023 Heat Setting

Heat-setting process control for PE/PP microporous separators

Effect of hot-press temperature and time on separator pore-size distribution and thermal shrinkage.

Journal of Membrane Science (10.1016/j.memsci.2023.124xxx), author teamView Source →

Progress in Materials Science · 2024 Process Control

Thickness/density consistency control in precision servo hot-press production

Review on the key role of the four-precision system in solid-state-battery production yield.

Progress in Materials Science (10.1016/j.pmatsci.2024.102xxx), author teamView Source →

Journal of Power Sources · 2025 Hot-Press Process

Effect of hot-press temperature gradient on interfacial impedance in solid-state batteries

Effect of platen temperature distribution on sulfide-electrolyte interfacial contact resistance.

Journal of Power Sources (10.1016/j.jpowsour.2025.238xxx), author teamView Source →

Nature Energy · 2024 Production Process

Mechanical simulation and process optimization of solid-state-battery stack lamination

Multi-physics coupled simulation guiding hot-press process-window setup.

Nature Energy (10.1038/s41560-024-01xxx), author teamView Source →

Advanced Functional Materials · 2024 Separator Hot Pressing

Porosity control in hot-pressed ceramic-coated separators

Effect of hot-press temperature and pressure on separator porosity and air permeability.

Advanced Functional Materials (10.1002/adfm.202408xxx), author teamView Source →

Related Products

Products in the same family and matched equipment to build a complete test solution.

FAQ

FAQ on selection, delivery, installation and after-sales for the QM940F | Designed & made in Korea · trusted in 90+ countries worldwide

What test scenarios is the QM940F used for?+

The QM940F heat-seal tester evaluates seal performance and condition by the product's shape after heat sealing. Custom heated molds are exchangeable; sealing pressure and forming conditions are programmable for heat-seal quality evaluation of different package types.

What is the standard lead time?+

Standard models are delivered in 3-8 weeks; options and custom configurations have a separately confirmed lead time.

Are customization and options supported?+

Special sizes, tooling, software method libraries and sensor ranges can be customized; contact sales for selection.

How are installation and commissioning handled after delivery?+

Certified engineers install, commission and train on site; 2-hour emergency response; 1-year full-machine warranty.

Is operator training provided?+

On-site operator training and video materials are provided, covering specimen preparation, parameter setup, data export and routine maintenance.

How are after-sales and calibration services arranged?+

Annual calibration and metering are provided with certificates; lifetime free software upgrades and long-term spare-parts supply.

Do you offer sample testing on behalf of customers?+

Yes - send us your samples; we issue test reports and help evaluate equipment suitability.
