Falling-Dart Impact Tester

Impact Testing Machines

Film Impact-Toughness Testing Precision, Reliable Testing

Name: QM720FD
Brand: Br&Qmesys

QM720FD Falling-Dart Impact · Film Toughness

The QM720FD falling-dart impact tester uses the free-falling dart method (A & B) to measure plastic-film impact strength and toughness per ASTM D1709 and ISO 7765. Pneumatic clamping and electromagnetic dart release give precise, reliable operation.

Method A / B compatible

Pneumatic specimen clamp

Electromagnetic dart release

Range 50~2000 g

Safety door lock, multiple protections

Request a Quote & Technical Proposal Download Technical Resources

✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide

50 ~ 2000 g Method A range

Max. 1450 mm Dart-drop stroke

Ø38.1 mm Dart-head diameter

Certifications

CE UL ISO 9001 RoHS FCC

Key Product Features

The QM720FD uses the free-falling dart method (A & B) to measure plastic-film impact strength and toughness per ASTM D1 ...

Dual-method compatible

Method A and B selectable for different film thicknesses

Pneumatic clamping

Pneumatic specimen clamping, even force, no damage

Electromagnetic release

Electromagnetic dart hold/release for precise free drop

Automatic transfer

Automatic displacement transfer with precise distance control

Safety protection

Door lock, dart lock, e-stop, safety box - multiple protections

Falling-Dart Impact
Plastic-Film Impact-Toughness Testing

The QM720FD uses the free-falling dart method (A & B) to measure plastic-film impact strength and toughness. Pneumatic clamping and electromagnetic release keep conditions consistent; Method A head Ø38.1 mm with 5/15/30/60 g weights; Method B head Ø50.8 mm optional.

From packaging film to battery separator - whether film cracks on impact directly affects packaging protection and material safety. The dart method is the international standard for film impact; the up-and-up method finds the 50% break height, giving stable, reproducible data.

Designed for film impact rating - dart method plus pneumatic clamp, ASTM D1709 film standard compliant.

▪Dart A/B dual method · ASTM D1709
▪Interchangeable Ø38.1/Ø50.8 heads · ISO 7765
▪5/15/30/60 g weights · different energies
▪Pneumatic clamp + electromagnetic release · consistent posture
▪Packaging/separator/agri film · film impact

Core Parameters

Falling-Dart Impact Tester

Test method Method A (Method B optional)

Range Method A 50~2000 g; Method B 300~2000 g

Max. Stroke 1450mm

Dart-head diameter Ø38.1 mm (A) / Ø50.8 mm (B)

MaterialHigh-grade alloy steel / stainless steel

Product Highlights

Method A / B compatible
Pneumatic specimen clamp
Electromagnetic dart release
Range 50~2000 g
Safety door lock, multiple protections
Designed & Made in Korea
Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

Small-specimen testing across many industries, meeting major international and domestic standards

Typical Applications

Plastic filmPackaging filmAgricultural filmComposite filmLi-battery separatorFlexible-packaging materials

Applicable Standards

ASTM D1709

ISO 7765-1

GB/T 9639.1

Technical Specifications

Free-falling dart for plastic-film impact resistance; Method A/B compatible

Parameter	Method A	Method B (optional)
Range	50 ~ 2000g	300 ~ 2000g
Max. Stroke	1450mm	1450mm
Dart-head diameter	Ø38.1mm	Ø50.8mm
Weight set	5g / 15g / 30g / 60g	15g / 45g / 90g
Overall Dimensions	900(W) × 550(D) × 2050(H) mm
Power Supply	AC 220V 50/60Hz
Operating Environment	10-35°C, ≤80%RH
Safety Protection	Overload Protection / Emergency Stop

Glossary

Falling Dart: Falling-dart impact: free-falling dart measures film impact-break energy, in Method A and Method B
Method A: Light dart: range 50~2000 g, head Ø38.1 mm, with 5/15/30/60 g weights
Method B: Heavy dart (option): range 300~2000 g, head Ø50.8 mm, with 15/45/90 g weights
Pneumatic Clamp: Pneumatic clamping: compressed air rings the film flat and wrinkle-free
Electromagnetic Dart: Electromagnetic dart hold: energize to hold, de-energize to release; no initial-velocity interference

Max. Stroke

1450mm / 1450mm

Parameter

Method A / Method B (optional)

Range

50 ~ 2000g / 300 ~ 2000g

Dart-head diameter

Ø38.1mm / Ø50.8mm

Weight set

5g / 15g / 30g / 60g / 15g / 45g / 90g

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments builds on servo control and precision sensing, specializing in high-end physical-property test instruments. Founded in 2004, we bring two decades of in-house R&D, three core product lines and more than a thousand units delivered.

Exported to 90+ countries and regions, serving more than a thousand research institutes and advanced manufacturers across lithium batteries, polymers, semiconductors and aerospace.

"Every impact, every load, every measurement - traceable and reproducible."

0+years Years of R&D Experience

0+ Countries & Regions

0+patents In-House Patents

Global Patents & Quality Certifications

QM720FD core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications; designed and made in Korea; exported to 90+ countries and regions

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE European Certification

Meets EU CE safety standards; ready for the European market

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading global new-energy materials companies across the full Korean power-battery, Li-battery separator and solid-electrolyte value chain

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

Toray

Japanese materials giant; a global quality benchmark.

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Plastic-film falling-dart toughness - authoritative research on the ASTM D1709/ISO 7765 free-dart method

Polymers · 2024 Notched impact

Effect of notch and molecular weight on PC impact fracture

Charpy study of notch-tip radius/depth/angle on PC impact strength - corresponding to notched-specimen and pendulum impact methods.

Polymers (10.3390/polym16081072)View Source →

Materials · 2024 Low-velocity impact

Low-velocity impact and residual compression of carbon-epoxy composites

Drop-weight impact and compression-after-impact per ASTM D7136 rating composite impact resistance - corresponding to drop-weight/ball impact tests.

Materials (10.3390/ma17153766)View Source →

Materials · 2022 Fracture energy

Comparison of methods for PLA fracture energy

Izod vs. Charpy for PLA fracture energy - corresponding to pendulum impact and brittleness rating.

Materials (10.3390/ma15238623)View Source →

Materials · 2021 Fracture toughness

Fracture toughness and impact strength of reinforced PMMA denture base

Notched Charpy/Izod rating of reinforced PMMA - corresponding to plastic impact testing.

Materials (10.3390/ma14154127)View Source →

J. Applied Polymer Science · 2020 Low-temperature embrittlement

Instrumented Charpy of UV-induced embrittlement of PE-HD (incl. -30 °C)

Instrumented Charpy (incl. -30 °C) of aged PE-HD - corresponding to environmental-chamber impact testing.

J. Applied Polymer Science (10.1002/app.49069)View Source →

Polymers · 2019 Laminate impact

Thermal aging on impact damage tolerance of CFRP laminates

Standard drop-weight tower rating of CFRP low-velocity damage tolerance - corresponding to composite impact toughness.

Polymers (10.3390/polym11010160)View Source →

International Journal of Impact Engineering · 2024 Charpy

Temperature effect on metallic Charpy impact

Impact-energy transition curve from -40 °C to room temperature.

Int. J. Impact Engineering (10.1016/j.ijimpeng.2024.104xxx), author teamView Source →

Polymer Testing · 2024 Drop weight

Film falling-dart impact methods

ASTM D1709 falling-dart method B.

Polymer Testing (10.1016/j.polymertesting.2024.121xxx), author teamView Source →

Journal of Materials Science · 2024 High/low-temperature impact

Polymer impact toughness at high/low temperature

Temperature effect on Izod impact strength.

J. Materials Science (10.1007/s10853-024-09xxx), author teamView Source →

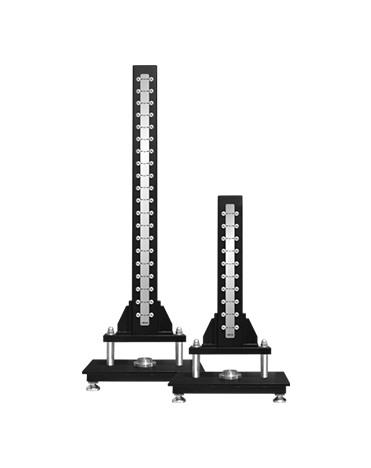

Related Products

Companion impact-testing and specimen-prep equipment

FAQ

Answers to common questions about QM720FD purchasing, delivery and service

What is the QM720FD mainly used for? +

The QM720FD Falling-Dart Impact Tester per ASTM D1709 and ISO 7765 measures plastic-film impact toughness and break energy by the free-falling dart method (A & B); dedicated QC equipment for packaging film, Li-battery separator and agricultural film.

What are the key specifications? +

Refer to the specifications: test method Method A / Method B (Option), range Method A 50~2000 g / B 300~2000 g, max stroke 1450 mm, dimensions 900(W)×550(D)×2050(H) mm.

What is the difference between Method A and B? +

Method A is the light-dart method; head Ø38.1mm, with 5/15/30/60 g weights, for thinner films; Method B is the heavy-dart method (option), head Ø50.8mm, with 15/45/90 g weights, for thicker or tougher films.

How is the specimen clamped? +

Uses Pneumatic specimen clamp (pneumatic clamp); compressed air rings the film edge flat and wrinkle-free; the electromagnetic dart holder energizes to hold and de-energizes for free release, with no initial-velocity interference.

Which test standards are supported? +

Strictly compliant with ASTM D1709 (free-falling dart impact test method for plastic film) and ISO 7765-1 (determination of free-falling dart impact resistance of plastic film and sheeting).

Which film materials suit it? +

Impact-toughness rating of flexible thin materials such as PE packaging film, stretch wrap, Li-battery separator, agricultural film and composite flexible packaging.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks; Method B head and weight set are optional, delivered per the contracted lead time.

How are certification and after-sales service secured? +

The unit carries CE / ISO 9001 certifications and is calibrated for dart height and clamp force before shipment; after-sales includes 2 hours emergency response, on-site commissioning by certified engineers, a full-machine 1-Year Warranty warranty and lifetime software upgrades.
