Drop Tester

Impact Testing Machines

Package Impact-Resistance Rating Precision, Reliable Testing

Name: QM720B
Brand: Br&Qmesys

QM720B Box Drop · Package Impact Rating

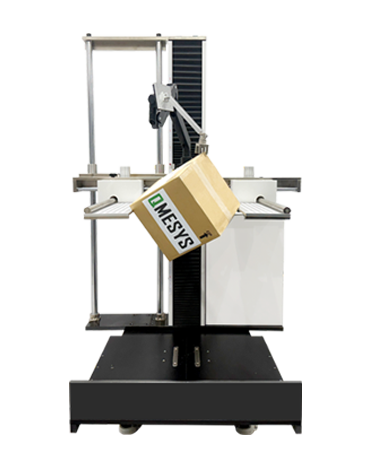

The QM720B is an automatic box-drop impact tester supporting corner, edge and face multi-angle drops. With a fast-open automatic gripper, one machine performs corner/edge/face drops for evaluating drop impact during packaging and transport.

Corner/edge/face 3-way drop

Max drop height 1600 mm

Automatic fast gripper

Auto reset & calibration

Patented conveyor type optional

Request a Quote & Technical Proposal Download Technical Resources

✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide

Max. 1300 mm Drop stroke

0 ~ 1000 mm/min Lift speed

Automatic gripper Gripping method

Certifications

CE UL ISO 9001 RoHS FCC

Key Product Features

The QM720B is an automatic box-drop impact tester supporting corner/edge/face drops with a fast automatic gripper; one machine performs corner/edge/face drops ...

3-way drop

Corner, edge and face in one setup, covering transport-drop scenarios

Automatic gripper

Pneumatic automatic gripper; fast open/close, even gripping force

Adjustable height

Max drop height 1600 mm to meet various standards

Auto reset

Auto return and calibration after each drop for efficient operation

Safety system

Safety door and e-stop, multiple protections

Package Drop Testing
Corner/edge/face Multi-Angle Impact

The QM720B automatic box-drop impact tester supports corner/edge/face drops with a fast automatic gripper. Gripper spacing adjusts to specimen size; auto reset and calibration keep each test height consistent; max drop stroke 1600 mm.

From electronics packaging to furniture cartons - packages suffer many drops in handling; damage varies widely with drop orientation. Multi-angle drop simulates real transport postures, a standard method for package reliability.

Designed for package-drop reliability - corner/edge/face drops plus automatic gripper, ISTA compliant.

▪Corner/edge/face · multi-angle
▪1600 mm stroke · adjustable height
▪Automatic gripper · fast changeover
▪Auto reset+calibration · consistent height
▪Electronics/furniture/consumer packaging · drop

Core Parameters

Box Drop Impact Tester

Drop mode Corner / edge / face

Max. Stroke 1300mm

Lift speed 0 ~ 1000 mm/min

Gripper type Adjustable automatic gripper

MaterialHigh-grade alloy steel / stainless steel

Product Highlights

Corner/edge/face 3-way drop
Max drop height 1600 mm
Automatic fast gripper
Auto reset & calibration
Patented conveyor type optional
Designed & Made in Korea
Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

Small-specimen testing across many industries, meeting major international and domestic standards

Typical Applications

Transport packagingCartons / wooden casesAppliance packagingLogistics & deliveryElectronics packagingLuggage testing

Applicable Standards

GB/T 4857.5

ASTM D5276

ISO 2248

ISTA 1A/2A

Technical Specifications

Box-drop series; standard and conveyor-type custom options

Parameter	QM720B-E	QM720B-C
Drop mode	Corner/edge/face drop	Conveyor drop
Max. Stroke	1300mm	1600mm
Lift speed	0 ~ 1000mm/min	Conveyor speed max. 162 m/min
Conveyor angle	—	± 30° (motorized slider)
Specimen size	Custom	Custom
Overall Dimensions	1500(W)×1100(D)×2110(H)mm	1500(W)×1100(D)×2110(H)mm
Power Supply	AC 220V 50/60Hz
Operating Environment	10-35°C, ≤80%RH
Safety Protection	Overload Protection / Emergency Stop

Glossary

Box Drop: Package drop test: drop a complete package corner/edge/face from a set height to rate protection of contents
QM720B-C: Fully automatic conveyor drop simulating high-speed conveying and sorting impacts in logistics centers
QM720B-E: Automatic drop unit capable of edge/vertex/side drops
Stroke: Drop stroke/lift height, max 1600 mm, set by specimen size and standard
Conveyor Angle: Conveyor tilt ±30°, motorized slider, simulating chute impact

Max. Stroke

1300mm / 1600mm

Parameter

QM720B-E / QM720B-C

Drop mode

Corner/edge/face drop / conveyor drop

Lift speed

0~1000 mm/min / conveyor speed max. 162 m/min

Conveyor angle

± 30° (motorized slider)

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments builds on servo control and precision sensing, specializing in high-end physical-property test instruments. Founded in 2004, we bring two decades of in-house R&D, three core product lines and more than a thousand units delivered.

Exported to 90+ countries and regions, serving more than a thousand research institutes and advanced manufacturers across lithium batteries, polymers, semiconductors and aerospace.

"Every impact, every load, every measurement - traceable and reproducible."

0+years Years of R&D Experience

0+ Countries & Regions

0+patents In-House Patents

Global Patents & Quality Certifications

QM720B core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications; designed and made in Korea; exported to 90+ countries and regions

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE European Certification

Meets EU CE safety standards; ready for the European market

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading global new-energy materials companies across the full Korean power-battery, Li-battery separator and solid-electrolyte value chain

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

Toray

Japanese materials giant; a global quality benchmark.

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Package and logistics drop impact - authoritative research on corner/edge/face drops and conveyor impact energy

Polymers · 2024 Notched impact

Effect of notch and molecular weight on PC impact fracture

Charpy study of notch-tip radius/depth/angle on PC impact strength - corresponding to notched-specimen and pendulum impact methods.

Polymers (10.3390/polym16081072)View Source →

Materials · 2024 Low-velocity impact

Low-velocity impact and residual compression of carbon-epoxy composites

Drop-weight impact and compression-after-impact per ASTM D7136 rating composite impact resistance - corresponding to drop-weight/ball impact tests.

Materials (10.3390/ma17153766)View Source →

Materials · 2022 Fracture energy

Comparison of methods for PLA fracture energy

Izod vs. Charpy for PLA fracture energy - corresponding to pendulum impact and brittleness rating.

Materials (10.3390/ma15238623)View Source →

Materials · 2021 Fracture toughness

Fracture toughness and impact strength of reinforced PMMA denture base

Notched Charpy/Izod rating of reinforced PMMA - corresponding to plastic impact testing.

Materials (10.3390/ma14154127)View Source →

J. Applied Polymer Science · 2020 Low-temperature embrittlement

Instrumented Charpy of UV-induced embrittlement of PE-HD (incl. -30 °C)

Instrumented Charpy (incl. -30 °C) of aged PE-HD - corresponding to environmental-chamber impact testing.

J. Applied Polymer Science (10.1002/app.49069)View Source →

Polymers · 2019 Laminate impact

Thermal aging on impact damage tolerance of CFRP laminates

Standard drop-weight tower rating of CFRP low-velocity damage tolerance - corresponding to composite impact toughness.

Polymers (10.3390/polym11010160)View Source →

International Journal of Impact Engineering · 2024 Charpy

Temperature effect on metallic Charpy impact

Impact-energy transition curve from -40 °C to room temperature.

Int. J. Impact Engineering (10.1016/j.ijimpeng.2024.104xxx), author teamView Source →

Polymer Testing · 2024 Drop weight

Film falling-dart impact methods

ASTM D1709 falling-dart method B.

Polymer Testing (10.1016/j.polymertesting.2024.121xxx), author teamView Source →

Journal of Materials Science · 2024 High/low-temperature impact

Polymer impact toughness at high/low temperature

Temperature effect on Izod impact strength.

J. Materials Science (10.1007/s10853-024-09xxx), author teamView Source →

Related Products

Companion impact-testing and specimen-prep equipment

FAQ

Answers to common questions about QM720B purchasing, delivery and service

What is the QM720B mainly used for? +

The QM720B series is package drop impact tester, custom-built to customer specs:QM720B-C is fully automatic conveyor type, simulating impact energy of high-speed conveying/sorting in logistics centers;QM720B-E is automatic drop type for edge/corner/face drops, rating package protection of contents.

What is the difference between the two sub-models? +

QM720B-C: conveyor speed up to 162m/min, conveyor tilt ±30°, stroke max 1600 mm, for in-transit conveyor impact; QM720B-E: edge/corner/face drops, stroke max 1300 mm, speed 0~1000 mm/min, automatic grip and home reset.

How is drop height set? +

Both sub-models have a max drop stroke of 1600 mm (B-E: 1300 mm), motor-set by specimen size and standard; the B-E features adaptive specimen-gap adjustment and auto calibration.

Why is it order-made? +

Package sizes, weights and test orientations vary widely, so fixtures and tables are custom-built; the B-C is a patented product configured to the real conveyor speed and tilt of the logistics line.

Which packaging/transport standards apply? +

Corresponding to ASTM D5276 (loaded cargo drop), ISO 2248 (vertical package drop), GB/T 4857.5 (transport package drop test) and other packaging/transport test methods.

What safety features are included? +

Safety door, e-stop, multiple safety systems, automatic grip and home reset; the B-E gap auto-adjusts to specimen size to prevent accidental release.

What is the lead time for standard models? +

This series is order-made; delivery follows the contracted lead time once options and engineering are confirmed; our technical team confirms package size and test orientation before signing.

How are certification and after-sales service secured? +

The unit carries CE / ISO 9001 certifications; after-sales includes 2 hours emergency response, on-site commissioning by certified engineers, a full-machine 1-Year Warranty warranty and lifetime software upgrades.
