Foam Compression Tester

Materials Testing Instrument

Flexible Foam
Dynamic Compression Durability

Name: QM600
Brand: Br&Qmesys

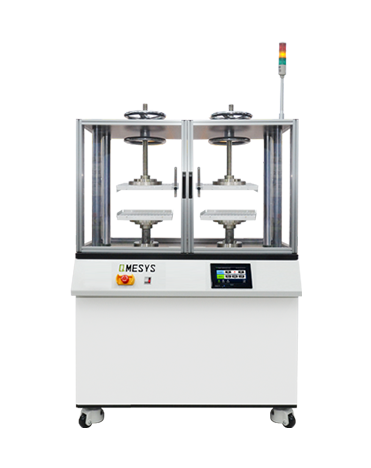

QM600 Flexible Foam Dynamic Compression Durability

The QM600 dynamic compression tester evaluates the resilience and durability of flexible polyurethane foam used in automotive seats, memory foam and mattresses; it repeatedly compresses standard specimens (up to 100,000 cycles) with a low-noise, low-vibration servo-motor system.

7-inch Color Touch Screen

Digital Servo Motor

Anti-Rotation Adjustable Pressure Plate

400x400 Perforated Plate

Request a Quote & Technical Proposal Download Technical Resources

✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide

100,000 CyclesMax. Cycles

10~60Cycles/min

150mmMax. Stroke

Certifications

CE UL ISO 9001 RoHS FCC

Key Product Features

Flexible-foam resilience and ten-thousand-cycle compression durability evaluation

Digital Servo

Digital servo motor, low noise and vibration

Anti-Rotation Pressure Plate

Anti-rotation height-adjustable pressure plate

Perforated Plate

400x400 mm perforated plate

Dual-Channel Zeroing

2-ch automatic home zeroing

Touch-Screen Operation

7-inch color LCD touch screen

Flexible-Foam Reciprocating Compression
Durability & Resilience Evaluation

The QM600 foam reciprocating compression tester repeatedly compresses standard flexible-polyurethane-foam specimens used in automotive seats, chairs, memory foam and mattresses, evaluating permanent set and resilience after repeated compression. The low-noise, low-vibration digital servo motor and 400x400 mm perforated plate suit standard foam specimens; the anti-rotation plate prevents specimen twisting.

From automotive seats to mattresses - foam deformation after long-term use directly affects comfort and service life. Reciprocating compression testing simulates daily repeated use and is a standard durability test in the furniture and automotive-interior industries.

Designed for foam durability evaluation - reciprocating compression plus anti-rotation plate; ASTM D3574-compliant testing.

▪Reciprocating compression · Durability-set evaluation
▪400x400 mm perforated plate · Standard specimens
▪ASTM D3574/ISO 3385 · Foam standards
▪Anti-rotation plate · Prevents specimen twisting
▪Digital servo · Low noise and vibration

Core Parameters

Dynamic Compression Tester

Compression Speed10 ~ 60 cycles/min

Max. Stroke150mm

Platen Size300 × 300mm

Overall Dimensions1150(W)×740(D)×2000(H) mm

Product TypeDynamic Compression Tester (Foam Resilience/Durability)

Product Highlights

7-inch Color Touch Screen
Digital Servo Motor
Anti-Rotation Adjustable Pressure Plate
400x400 Perforated Plate
Designed & Made in Korea
Exported to 90+ Countries Worldwide
1-Year Warranty, Lifetime Maintenance

Typical Applications & Applicable Standards

Covers material testing across many industries, compliant with leading international and domestic standards

Typical Applications

Automotive SeatsMemory FoamMattressesFlexible PU FoamChair Cushions

Applicable Standards

ASTM D3574

ISO 3385

JIS K6382

ASTM D638

ISO 527

GB/T 1040

ASTM D412

Technical Specifications

QM600 Detailed Technical Specifications

Parameter	QM600
Product Type	Dynamic Compression Tester (Foam Resilience/Durability)
Compression Speed	10 ~ 60 cycle/min
Max. Stroke	Max. 150mm
Platen Size	300 × 300mm
Drive	Digital servo motor (low noise and vibration)
Sensors	Distance sensor max. 50 mm; load sensor max. 500 kgf (optional)
Applicable Standards	ASTM D3574, ISO 3385, JIS K6382
Overall Dimensions	1150(W) × 740(D) × 2000(H) mm
Power Supply	AC 220V 50/60Hz
Operating Environment	10-35°C, ≤80%RH
Safety Protection	Overload Protection / Emergency Stop

Glossary

cycle/min: Compression cycles per minute, characterizing the compression rate
Permanent Set: Residual thickness loss of the specimen after repeated compression
Resilience: The ability of foam to recover its original shape after compression
Anti-Rotation Pressure Plate: Prevents specimen twisting during compression
Servo Motor: Closed-loop servo drive; stable speed, low noise

100,000 Cycles

Long-life foam durability evaluation

10~60 cycles/min

Adjustable compression rate

150 mm Stroke

Suits thick foam specimens

Servo Low Noise

Suits continuous laboratory testing

Anti-Rotation Design

More accurate compression data

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments is built on servo control and precision sensing as its core technology, dedicated to the R&D and manufacturing of high-end materials-property testing instruments. Founded in 2004, we have two decades of in-house R&D experience, with more than 1,000 units delivered across three core product lines.

Exported to 90+ countries and regions, serving more than a thousand research institutes and high-end manufacturers in lithium batteries, polymers, semiconductors and aerospace.

"Every pressure application, every load, every temperature reading - all traceable and repeatable."

0+yearsYears of R&D Experience

0+Countries & Regions

0+patentsIn-House Patents

Global Patents & Quality Certifications

The QM600 dynamic compression tester's core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications; designed and made in Korea; exported to 90+ countries and regions worldwide.

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE European Certification

Meets EU CE safety standards; ready for the European market

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading global new-energy materials companies across the full Korean power-battery, Li-battery separator and solid-state-electrolyte value chain

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

Toray

Japanese materials giant; a global quality benchmark.

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Flexible-foam and elastomer compression-resilience evaluation - authoritative research support for dynamic compression durability testing

Advanced Composites · 2026 Fatigue Bending

Three-Point Bending Fatigue and Failure-Mechanism Evaluation of Thick-Section CFRP Laminates

Fatigue performance and failure mechanisms of thick CFRP laminates under three-point bending; corresponds to flexural fatigue testing.

Advanced Composites (10.1080/09243046.2026.2656583)View Source →

Composites Communications · 2025 High-Temperature Bending

Flexural Properties of Additively Manufactured Continuous-Fiber-Reinforced Thermoplastic Polymers After High-Temperature Exposure

Three-point bending tests flexural strength and modulus retention after high-temperature exposure of continuous-fiber-reinforced thermoplastic composites.

Composites Communications (10.1016/j.coco.2025.102279)View Source →

Polymers · 2022 Cyclic Compression

Cyclic Compression Testing of Three Elastomers (TPV, Liquid Silicone Rubber and Two EPDMs)

Cyclic compression loading/unloading on a universal tester obtains the compressive stress-strain response of rubber-type materials; corresponds to foam/elastomer compression testing.

Polymers (10.3390/polym14071316)View Source →

Advances in Materials Science and Engineering · 2022 Tensile Mechanics

Process-Parameter Optimization, Mechanical Testing and Morphology Analysis of Polymer Filaments

Tensile strength, Young's modulus and elongation at break measured on a universal tester, quantifying the effect of process parameters on mechanical results.

Advances in Materials Science and Engineering (10.1155/2022/8259804)View Source →

Polymers · 2020 Tensile Behavior

Effects of Process, Thickness, Temperature and Strain Rate on HDPE Tensile Behavior

Systematic study per ASTM D638/ISO 527 of the effects of process, thickness, temperature and strain rate on HDPE tensile behavior.

Polymers (10.3390/polym12091857)View Source →

Materials · 2020 Porous-Material Compression

Compression Response of Porous Polymers

Quasi-static compressive stress-strain and energy absorption of cellular plastics tested on a universal tester per ASTM D1621; corresponds to foam compression.

Materials (10.3390/ma13020457)View Source →

Polymer Testing · 2024 Flexing

Rubber Flex-Fatigue DeMattia Test

Effect of flex cycles on crack growth.

Polymer Testing (10.1016/j.polymertesting.2024.123xxx), author teamView Source →

Wear · 2024 Leather

BALLY Flexing Test Method for Leather

Evaluation of flex cycles and crack rating.

Wear (10.1016/j.wear.2024.207xxx), author teamView Source →

International Journal of Fatigue · 2024 Gelbo

Gelbo Flex-Fatigue Test for Soft Materials

Effect of bend radius on fatigue life.

International Journal of Fatigue (10.1016/j.ijfatigue.2024.108xxx), author teamView Source →

Related Products

Same-series products and supporting equipment build a complete testing solution

FAQ

Answers to common questions about purchasing, delivery and service for the QM600

What does the QM600 mainly evaluate? +

Evaluates the flexible polyurethane foam used in automotive seats, memory foam and mattresses - assessing its resilience and repeated-compression durability.

What are the core specifications of the QM600? +

Compression speed 10~60 cycle/min, max. stroke 150mm, pressure plate 300×300mm, up to 100,000 cycles cycles.

What is the maximum number of compression cycles? +

Up to 100,000 cyclic compressions, evaluating long-term foam durability and permanent set.

What are the drive features? +

Driven by a Digital Servo Motor drive - low noise and vibration, stable speed, suited to long continuous laboratory testing.

Which test standards are supported? +

Compliant with ASTM D3574, ISO 3385, JIS K6382 flexible-foam durability test standards.

Are sensors included? +

A distance sensor (max. 50 mm) is standard; a load sensor (max. 500 kgf) is optional, simultaneously recording compression force and displacement.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks; the load sensor and other options are delivered per the contract lead time.

How are certification and after-sales service secured? +

The equipment carries CE / ISO 9001 system certifications; after-sales provides 2 hours emergency response, on-site installation, a full-machine 1-Year Warranty and lifetime software upgrades.
