Steam Autoclave Precise, Reliable Testing

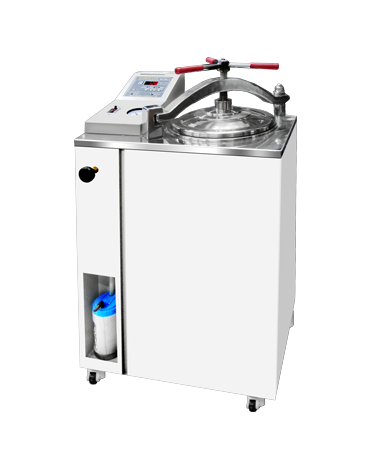

QM220 Steam Autoclave

The QM220 steam autoclave is used for sterilization of medical instruments and for sterilization testing of culture media, food and pharmaceuticals. Specimens are immersed in a high-temperature high-pressure steam chamber for a set time to complete moist-heat sterilization and disinfection.

Temperature range RT~130 °C, working pressure up to 1.2 kg/cm²; the moist steam has strong penetration for thorough sterilization, even of porous and wrapped instruments.

Equipped with an explosion-proof lock, automatic overpressure/overheat protection and a forced pressure-relief valve; the detachable sample basket makes loading and unloading easy and safe.

Stainless-Steel Chamber
Explosion-Proof Locking
Overpressure/Overheat Protection
Forced Pressure-Relief Valve
Detachable Sample Basket
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
45 / 80 / 100L Capacity
RT ~ 130°C Temperature Range
1.2 kg/cm² Working Pressure
Certifications
CE UL ISO 9001 RoHS FCC
QM220 Steam Autoclave

Key Product Features

Stainless-steel chamber, explosion-proof lock, overpressure/overheat protection, forced relief valve - safe and thorough moist-heat sterilization

Stainless-Steel Chamber

304 stainless-steel chamber, corrosion-resistant and easy to clean, suited to high-temperature high-pressure steam environments.

Explosion-Proof Lock

The door cannot be opened until chamber pressure is released, eliminating the risk of opening under pressure.

Overpressure/Overheat Protection

Automatic protection and venting on overpressure or overheat; safe and controllable operation.

Forced Pressure-Relief Valve

Forced release of abnormal pressure to protect operators.

Detachable Sample Basket

The specimen basket is removable for easy loading, unloading and chamber cleaning.

High-Pressure Steam Sterilization
Moist-Heat Disinfection Chamber

The QM220 steam autoclave places specimens in a high-temperature high-pressure steam environment to complete sterilization and disinfection within a set time. With an RT~130 °C temperature range and 1.2 kg/cm² working pressure, the strongly penetrating moist steam meets sterilization requirements even for porous and wrapped specimens; suited to sterilization validation of medical instruments, culture media, food and pharmaceuticals.

From medical instruments to culture media - sterilization effectiveness directly relates to biosafety and experimental reliability. High-pressure steam is the most classic sterilization method; its strong steam penetration effectively kills all kinds of microorganisms, while the explosion-proof lock plus overpressure protection ensure safe operation.

Designed for moist-heat sterilization evaluation - 130 °C high-pressure steam with multiple safety features for medical/food sterilization validation.

  • ▪RT~130 °C high-temperature steam · 1.2 kg/cm²
  • ▪Stainless-steel chamber · Corrosion-resistant
  • ▪Explosion-proof lock + overpressure/overheat protection · Safe
  • ▪Forced relief valve · Automatic pressure release
  • ▪Medical instruments/media/food · Sterilization validation

Core Parameters

Steam Autoclave
Product Type Steam Autoclave
Capacity 45 / 80 / 100L
Temperature Range RT ~ 130°C
Working Pressure 1.2 kg/cm²
Internal DimensionsØ300 / Ø400 / Ø450 × 630(H) mm

Product Highlights

  • Stainless-Steel Chamber
  • Explosion-Proof Locking
  • Overpressure/Overheat Protection
  • Forced Pressure-Relief Valve
  • Detachable Sample Basket
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

High-pressure steam moist-heat sterilization covering medical instruments, media, food and pharmaceutical sterilization tests

A

Typical Applications

Medical-Instrument SterilizationCulture-Media SterilizationFood Sterilization TestingPharmaceutical SterilizationLabware DisinfectionMicrobial-Inactivation Validation
S

Applicable Standards

ISO 17665 (Moist-Heat Sterilizer Requirements)
GB 8599 (Large Steam Sterilizers)
YY 0065 (Autoclaves)
GB/T 30690 (Evaluation of Pressurized Steam Sterilization Effectiveness)

QM220 Technical Specifications

RT~130 °C · 1.2 kg/cm² · 45/80/100 L three capacities · Multiple safety features

ParameterQM220
Product TypeSteam Autoclave
Capacity45L / 80L / 100L
Temperature RangeRT ~ 130°C
Working Pressure1.2 kg/cm²
Internal DimensionsØ300 / Ø400 / Ø450 × 630(H) mm
Safety DevicesExplosion-proof lock, overpressure/overheat protection, forced pressure-relief valve
Chamber MaterialStainless Steel
Sample LoadingDetachable Sample Basket
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

Moist-Heat Sterilization
Sterilization using high-temperature high-pressure saturated steam to coagulate and denature microbial proteins; strong penetration
kg/cm²
Engineering pressure unit; 1 kg/cm² approx. 0.098 MPa
RT
Room Temperature; the temperature range starts from ambient room temperature
Explosion-Proof Locking
Locks the door while the chamber is pressurized to prevent steam-burn injury from opening under pressure
Forced Pressure-Relief Valve
Safety device that forcibly releases steam pressure on abnormal overpressure
Culture Medium
Nutrient substrate for microbial growth; must be sterilized before use

Wide-Temp Moist Heat

RT~130 °C saturated steam for thorough sterilization

Multiple Safety Features

Explosion-proof lock + overpressure/overheat protection + forced relief

Three Capacities

45/80/100 L to choose from

Stainless-Steel Chamber

Corrosion-resistant, easy to clean

Detachable Basket

Easy loading/unloading and cleaning

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments is built on precision control and sensing technology as its core, dedicated to the R&D and manufacturing of materials-property testing and environmental-test instruments. Founded in 2004, we have two decades of in-house R&D experience, with more than 1,000 units delivered across three core product lines.

Exported to 90+ countries and regions, serving more than a thousand research institutes and high-end manufacturers in polymers, rubber, automotive, electronics and aerospace.

"Every temperature control, every load, every measurement - all traceable and repeatable."

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

The QM220 steam autoclave's core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications; designed and made in Korea; exported to 90+ countries and regions worldwide.

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading global new-energy materials companies across the full Korean power-battery, Li-battery separator and solid-state-electrolyte value chain

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Stability of moist-heat sterilization and thermal-environment conditions - authoritative research confirming the critical role of temperature uniformity and controlled thermal processes in the reliability of test results

Polymers · 2026 High-Temperature Exposure

Thermo-Mechanical Characterization of GFRP Grating Composites After High-Temperature Exposure

Thermo-mechanical characterization of glass-fiber-reinforced plastic gratings after high-temperature exposure, including thermal deformation and stiffness-retention measurement; corresponds to long-term thermal-exposure conditions of thermal-aging chambers.

Polymers (10.3390/polym18141722), MDPI research teamView Source →
Canadian Journal of Chemical Engineering · 2024 Heat Distortion / Melt Flow

Melt Flow, Heat-Distortion Temperature and Morphology Control of Biodegradable PHBV/PBAT Blends

HDT measured per ASTM D648 by three-point bending at constant heating rate, controlling the heat-distortion behavior of biodegradable blends; corresponds to thermal-aging and heat-distortion test methods.

Canadian Journal of Chemical Engineering (10.1002/cjce.25235), Wiley research teamView Source →
ACS Sustainable Resource Management · 2024 Recycled-Material Heat Resistance

Mechanical Recycling of CF/PA6 Composite Waste: HDT and Vicat Softening Point Evaluation

HDT and Vicat softening point of recycled CF/PA6 composites measured to evaluate recycled-material heat resistance; corresponds to heat-resistance validation after thermal aging.

ACS Sustainable Resource Management (10.1021/acssusresmgt.4c00245), ACS research teamView Source →
Polymers · 2022 Heat-Resistance Behavior

Biochar/Basalt-Fiber-Reinforced Flame-Retardant Biocomposites: HDT Comparison of PLA and PP

Comparing HDT and Vicat softening temperature to characterize differences in heat-resistance behavior of flame-retardant biocomposites; corresponds to plastic heat-aging evaluation.

Polymers (10.3390/polym14194086), MDPI research teamView Source →
Polymers · 2020 HDT/Vicat

Toughness and Heat-Resistance Improvement of POM/PLA Blends: Structure-Property Correlation

HDT measured per ISO 75 (1.8 MPa, 2 °C/min) and Vicat softening temperature per ISO 306 to evaluate blend heat resistance; corresponds to thermal-aging-chamber temperature-control accuracy validation.

Polymers (10.3390/polym12020307), MDPI research teamView Source →
Materials · 2020 Vicat/HDT

Effects of Styrene-Diene Block Copolymers and Glass Beads on Recycled PP Properties

Vicat softening per EN ISO 306 and HDT per ISO 75 on Ceast HDT-Vicat equipment; corresponds to post-aging heat-resistance evaluation.

Materials (10.3390/ma13030543), MDPI research teamView Source →
Polymer Degradation and Stability · 2024 Thermal Aging

Life Prediction of PP Thermo-Oxidative Aging

Application of the Arrhenius model to thermal aging.

Polymer Degradation and Stability (10.1016/j.polymdegradstab.2024.113xxx), author teamView Source →
Journal of Applied Polymer Science · 2024 Melt Index

Temperature Optimization for PET Melt-Flow Index Testing

MFR test at 260 °C / 2.16 kg.

Journal of Applied Polymer Science (10.1002/app.202401xxx), author teamView Source →
Polymer Testing · 2024 Water Bath

Temperature-Uniformity Validation of a Constant-Temperature Water Bath

GB/T 1035 water-bath temperature calibration method.

Polymer Testing (10.1016/j.polymertesting.2024.122xxx), author teamView Source →

FAQ

Answers to common questions about purchasing, delivery and service for the QM220 steam autoclave

What are the main applications of the QM220? +

Used for sterilization of medical instruments and for sterilization testing of culture media, food and pharmaceuticals. Specimens are immersed in a high-temperature high-pressure steam chamber for a set time to achieve moist-heat sterilization and disinfection, even for porous and wrapped instruments.

What are the core technical parameters? +

Per the specification table: capacity 45L / 80L / 100L, temperature range RT~130°C, working pressure 1.2kg/cm², internal dimensions Ø300 / Ø400 / Ø450 × 630(H) mm.

How is sterilization safety ensured? +

Equipped with an explosion-proof lock (cannot open under pressure), automatic overpressure/overheat protection and a forced pressure-relief valve; abnormal pressure is released automatically to protect operators and equipment.

How are temperature and pressure controlled? +

Saturated steam is used as the heating medium, reaching RT~130 °C and 1.2 kg/cm² working pressure; the strongly penetrating moist steam allows programs and timers to be set per process requirements.

Which sterilization standards are supported? +

Refer to ISO 17665 (moist-heat sterilizer requirements), GB 8599 (large steam sterilizers), YY 0065 (autoclaves), GB/T 30690 (pressurized steam sterilization effectiveness evaluation).

Which options are supported? +

45 L/80 L/100 L capacities, internal basket layers and timer programs are configurable on demand, tailored to sample batch size and sterilization process requirements.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks; custom configurations are delivered per the lead time in the contract after option confirmation; the technical team confirms the configuration list and lead time with you before signing.

How are certification and after-sales service secured? +

The equipment carries CE, UL, ISO 9001 and other certifications, undergoes three-tier calibration before shipment with a calibration certificate; after-sales provides 2-hour emergency response, certified on-site installation and commissioning, a 1-year full-machine warranty and lifetime software upgrades.
