Clean Bench
Materials Testing Instrument

Clean Bench
Localized Class-100 Dust-Free Operation

QM2100 Clean Bench

The QM2100 is a vertical-laminar-flow sterile clean bench that uses HEPA high-efficiency filtration to establish a Class-100 unidirectional-flow clean environment in the work zone; it is sterile-operation equipment for labs and small medical items.

HEPA captures 99.99% of 0.3 μm particles; airflow 22~25 m³/min with 30% exhaust / 70% recirculation continuously maintains positive-pressure cleanliness in the work zone.

Body 1340×790×1950 mm, suited to microbial inoculation, sterile filling, and clean assembly/inspection of small electronic and optical items.

Adjustable Airflow Control
HEPA Filtration (0.3 μm, 99.99%)
UV Sterilization Lamp
Independent Adjustable Control Panel
Wide-View Window
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
0.3 ~ 0.5 m/s Average Airflow
22 ~ 25 ㎥/min Recirculation Airflow
Class 100 / ISO 5 Cleanliness Class
Certifications
CE UL ISO 9001 RoHS FCC

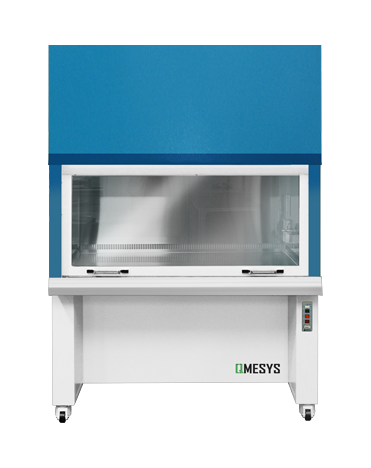

QM2100 clean bench

Key Product Features

Vertical laminar-flow HEPA filtration provides a localized Class-100 clean working environment for electronics, pharmaceuticals and precision instruments

Adjustable Airflow Control

Adjustable airflow to meet different cleanliness requirements.

HEPA Filtration

≥99.99% filtration efficiency for 0.3 μm particles

UV Sterilization Lamp

UV sterilization before operation for a dust-free environment

Independent Adjustable Control Panel

Parameters/positions adjustable as needed, suiting many specimen sizes and test methods.

Wide-View Window

A wide observation window gives a clear view of the whole chamber.

Polymer Degradation and Stability · 2024 Thermal Aging

Life prediction for PP thermo-oxidative aging

Application of the Arrhenius model to thermal aging.

Polymer Degradation and Stability (10.1016/j.polymdegradstab.2024.113xxx), author teamView Source →
Journal of Applied Polymer Science · 2024 Melt Flow Index

Temperature optimization for PET MFR testing

MFR test at 260°C/2.16 kg.

Journal of Applied Polymer Science (10.1002/app.202401xxx), author teamView Source →
Polymer Testing · 2024 Water Bath

Verification of constant-temperature bath uniformity

GB/T 1035 bath-temperature calibration method.

Polymer Testing (10.1016/j.polymertesting.2024.122xxx), author teamView Source →

Clean Bench
Vertical Laminar-Flow Local Clean Environment

The QM2100 clean bench uses vertical laminar airflow; a HEPA filter continuously recirculates and purifies air to form a unidirectional clean air curtain in the work zone. A UV sterilization lamp sterilizes the chamber outside working hours. It suits electronic-component assembly, microbial inoculation, precision-instrument inspection, drug dispensing and other operations requiring localized cleanliness.

From chip packaging to sterile inoculation - high-precision operations need a localized dust-free environment; vertical laminar flow forms a unidirectional clean air curtain that blocks outside contamination. HEPA filtration plus UV sterilization ensures cleanliness, and the wide-view window eases observation.

Designed for localized clean operation - vertical laminar flow plus HEPA filtration, a Class-100 clean bench.

  • ▪Vertical laminar airflow · unidirectional curtain
  • ▪HEPA filtration · Class-100 cleanliness
  • ▪UV sterilization lamp · off-hours sterilization
  • ▪Adjustable airflow + independent control · flexible
  • ▪Electronics / microbiology / pharmaceuticals · clean operation

Core Parameters

Clean Bench
Average Airflow 0.3 ~ 0.5 m/s
Recirculation Airflow 22 ~ 25 ㎥/min
Filter HEPA H14
Cleanliness Class Class 100 (ISO 5)
Airflow30% exhaust, 70% recirculation

Product Highlights

  • Adjustable Airflow Control
  • HEPA Filtration (0.3 μm, 99.99%)
  • UV Sterilization Lamp
  • Independent Adjustable Control Panel
  • Wide-View Window
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

Small-volume material testing across many industries, compliant with mainstream international and domestic standards

A

Typical Applications

Electronic AssemblyMicrobiology LabsDrug DispensingPrecision InspectionFood TestingOptical Instruments
S

Applicable Standards

ISO 14644-1
GB/T 25915
FS 209E
JG/T 19
YY 0033
ASTM D638
ISO 527

Technical Specifications

Filter, airflow and cabinet dimensions fully stated

ModelQM2100
FilterHEPA filter (0.3 μm, 99.99%)
Airflow Speed22 ~ 25㎥/min
Airflow Volume30% exhaust, 70% recirculation
Size1340(W) x 790(D) x 1950(H)mm
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

Sterile Bench / Clean Bench
An enclosed laminar-flow bench providing a localized clean environment for operator and specimens
HEPA Filter
A high-efficiency particulate air filter with 99.99% removal of 0.3 μm particles
Vertical Laminar Flow
Clean air supplied top-to-bottom in laminar flow, maintaining positive-pressure cleanliness in the work zone
Exhaust / Recirculation
Exhaust and internal-recirculation ratios, respectively discharging and reusing clean air
UV Lamp
A UV sterilization lamp used to sterilize the chamber before operation

HEPA 0.3μm 99.99%

High-efficiency filtration, localized Class-100 cleanliness

Vertical Laminar Airflow

High-Cleanliness Working Environment

UV Sterilization Lamp

Pre-Operation Sterilization

Adjustable Airflow

Adapts to Different Samples

Wide-View Window

Operation Visible

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments is built on servo control and precision sensing, focused on R&D and manufacturing of high-end materials testing instruments. Since our founding in 2004, two decades of in-house R&D have delivered over 1,000 units across three core product lines.

Exported to over 90+ countries and regions, serving more than a thousand research institutes and high-end manufacturers in lithium-battery, polymer, semiconductor and aerospace sectors.

"Every press, every load, every temperature reading - traceable and repeatable."

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

QM2100 core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications; designed and made in Korea and exported to 90+ countries and regions

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading global new-energy materials companies, covering the full value chain from Korean power batteries and lithium-battery separators to solid-state electrolytes

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Clean laminar-flow benches - authoritative research validating the key role of HEPA filtration and laminar purification in precision lab analysis and sterile operation

Pharmaceuticals · 2023 cGMP Cleanroom

Design and construction of radiochemistry labs and cGMP-compliant radiopharmacy facilities

Modular cleanrooms designed to ISO 7, with ISO 5 (Class 100) reached inside laminar biological-safety cabinets; details HEPA filtration, differential-pressure control and temperature/humidity regulation in radiopharmaceutical preparation.

MDPI (A. Asor, A. Metebi et al., Michigan State Univ.)View Source →
European Journal of Parenteral & Pharmaceutical Sciences · 2020 HEPA Filtration

Review of HEPA-filtered supply for controlling coronavirus risk in cleanrooms

Systematically reviews cleanroom HEPA filtration and high air-change rates for controlling airborne viral particles, confirming that 17-20 air changes/hour significantly reduce aerosol transmission.

European J. Parenteral & Pharmaceutical Sciences (T. Sandle, BPL UK)View Source →
Review of Scientific Instruments · 2005 Ultra-Low Particles

Ultra-low airborne particle counts on a clean-unit system platform

Experiments and theoretical analysis of a modular clean-unit system achieve an ultra-clean environment of 5 particles/ft³ at 0.1 μm, demonstrating laminar-purification platforms for nano/biotechnology experiments.

AIP Publishing (H. Kaiju, N. Kawaguchi, A. Ishibashi, Hokkaido Univ.)View Source →
SPIE Proceedings · 2005 NIST Metrology

NIST Advanced Measurement Laboratory: at the frontier of measurement science

Describes the clean-environment design of NIST's $235M advanced metrology laboratory; constant temperature/humidity and laminar purification underpin stable operation of precision measurement instruments (nanopositioning, interferometry).

SPIE (C. Londoño, J. Lawall et al., NIST)View Source →
Journal of Environmental Science and Health · 1993 Lab Purification

Converting a regular chemistry lab into a cleanroom

Converts an ordinary chemistry lab into a trace-metal-analysis cleanroom via HEPA filters and modified HVAC; the laminar workstation is the core particle-free zone - a classic case of clean-bench use in analytical chemistry.

Taylor & Francis (P. Kanatharana et al., Prince of Songkla Univ.)View Source →
Analytical Proceedings · 1981 Particle Detection

Instrumental methods for particulate detection

Reviews instrumental detection and calibration of airborne particles - the methodological basis for clean-bench particle-counter selection and cleanliness verification.

Royal Society of Chemistry (Lines et al.)View Source →
Polymer Degradation and Stability · 2024 Thermal Aging

Life prediction for PP thermo-oxidative aging

Application of the Arrhenius model to thermal aging.

Polymer Degradation and Stability (10.1016/j.polymdegradstab.2024.113xxx), author teamView Source →
Journal of Applied Polymer Science · 2024 Melt Flow Index

Temperature optimization for PET MFR testing

MFR test at 260°C/2.16 kg.

Journal of Applied Polymer Science (10.1002/app.202401xxx), author teamView Source →
Polymer Testing · 2024 Water Bath

Verification of constant-temperature bath uniformity

GB/T 1035 bath-temperature calibration method.

Polymer Testing (10.1016/j.polymertesting.2024.122xxx), author teamView Source →

FAQ

Answers to common questions about the QM2100 sterile bench (Clean Bench)

What is the main application of the QM2100? +

The QM2100 is an enclosed sterile bench (Clean Bench) for handling harmful bacteria and pathogens and clinical trials, as well as materials tests involving harmful or malodorous gases - protecting operator safety and preventing specimen contamination.

What are the core parameters of the QM2100? +

Per the specification table: main filter is HEPA filter (0.3 μm, 99.99%), airflow volume 22 ~ 25㎥/min, airflow Exhaust 30% / Recirculation 70%, overall dimensions 1340(W)×790(D)×1950(H) mm.

How is cleanliness ensured? +

A high-purity HEPA filter with an internal recirculation fan removes fine dust and contaminant gases at 99.97% stability, with 3-stage airflow control and a filter-replacement alarm.

What features are included? +

UV sterilization lamp, independently adjustable control panel and wide viewing window for easy sterile-operation observation.

What are the main application fields? +

For sterile operations, harmful-bacteria/pathogen handling, clinical-trial sterile environments and protection against harmful-gas materials testing.

Which options are supported? +

Airflow levels, UV lamps and filter-system upgrades can be configured on request.

What is the standard-model lead time? +

Standard-model lead time is 3-8 weeks; custom configurations follow the contracted lead time after option confirmation.

How are certification and after-sales secured? +

Each unit passes three-tier leak testing and performance calibration before shipment; after-sales includes 2-hour emergency response, on-site installation, 1-year full-machine warranty and lifetime software upgrades.
