High-Temperature Holding-Power Tester
Materials Testing Instrument

High-Temperature Holding-Power Tester
Tape Retention Evaluation

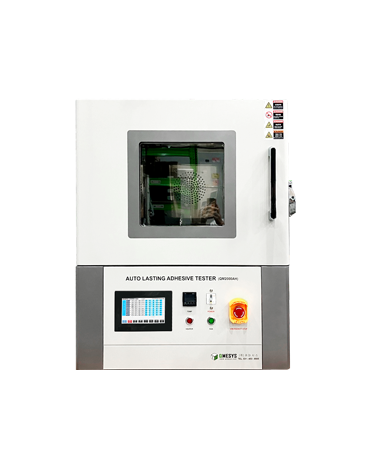

QM2000AH High-Temperature Holding-Power Tester

The QM2000AH is a high-temperature tape retention tester that places the holding rig inside an 80 L high-temp chamber to evaluate the shear retention of adhesive layers at elevated temperature - a tool for high-temperature tape and hot-melt film R&D.

Wide RT~250 °C range with ±0.1 °C control (@150 °C); up to 12 parallel channels quantify heat-resistant holding via high-temp failure time.

Compliant with KS T 1028 and ASTM D 3654; stable PID control for high-temperature retention testing of masking tape, double-sided foam tape and hot-melt film.

Independent channel selection
Auto-weight slider
Automatic measurement and memory
Fitted with 180° and 90° dual peel grips
Compliant with KS T 1028 and ASTM D 3654
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
80L Capacity
Max. 8Ch (optional) Specimen channels
RT ~ 250°C Temperature Range
Certifications
CE UL ISO 9001 RoHS FCC
QM2000AH High-Temperature Holding-Power Tester

Key Product Features

High-temperature holding test; 80 L chamber, RT~250 °C, ±0.1 °C/150 °C accuracy; evaluates tape heat-aging performance

Independent channel selection

Channels switch independently; some can be enabled as needed for comparison.

Auto-weight slider

The slider positions and weighs automatically, reducing placement error.

Automatic measurement and memory

Test methods and parameters are saved and recalled; batch testing needs no repeated setup, and data is traceable.

180°/90° peel grip

180° and 90° dual peel grips are standard, suiting different tape peel-test standards.

Compliant with KS T 1028 and ASTM D 3654

Designed strictly to international tape holding-power standards; data is ready for compliance reporting.

International Journal of Adhesion and Adhesives · 2024 Holding power

Shear holding-power testing of pressure-sensitive tape

Effect of temperature/humidity on holding time.

International Journal of Adhesion and Adhesives (10.1016/j.ijadhadh.2024.105xxx), author teamView Source →
Journal of Adhesion Science and Technology · 2024 Tack

Optimization of the rolling-ball tack test

Standardization of rolling-ball test conditions.

Journal of Adhesion Science and Technology (10.1080/01694243.2024.xxx), author teamView Source →
Tribology International · 2024 Lamination

Pressure control in tape roller lamination

Effect of rolling pressure on peel strength.

Tribology International (10.1016/j.triboint.2024.112xxx), author teamView Source →

High-temperature holding power
Heat-resistant bond durability test

The QM2000AH high-temperature holding-power tester measures the heat-resistant bond durability of tape, stickers, labels and adhesives at elevated temperature. An 80 L high-temp chamber covers RT~250 °C with ±0.1 °C/150 °C accuracy, a transparent window, an auto-load slider and forced cooling; up to 8 channels optional.

From heat-resistant masking paper to industrial tape - adhesive products soften and slip at high temperature, so heat-resistant holding directly affects reliability. Testing inside a high-temp chamber simulates engine-bay and industrial-baking environments.

Designed for heat-resistant adhesive evaluation - RT~250 °C chamber plus 8 channels for high-temp holding-durability tests.

  • ▪RT~250 °C high temp · ±0.1 °C accuracy
  • ▪80 L chamber · 8 channels optional
  • ▪Auto-weight slider · unattended
  • ▪Transparent window + forced cooling · safe
  • ▪High-temp tape/industrial adhesive · heat-resistance test

Core Parameters

High-Temperature Automatic Holding-Power Tester
Capacity 80L
Specimen channels Max. 8Ch (optional)
Temperature Range RT ~ 250°C
Temperature accuracy ±0.1°C / 150°C
StandardKS T 1028, ASTM D 3654

Product Highlights

  • Independent channel selection
  • Auto-weight slider
  • Automatic measurement and memory
  • Fitted with 180° and 90° dual peel grips
  • Compliant with KS T 1028 and ASTM D 3654
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

Covers holding-durability testing of tape, labels, stickers and adhesives at high temperature; compliant with ASTM D3654

A

Typical Applications

Adhesive tapePressure-sensitive tapeLabelsStickersHigh-temperature tapeDouble-sided tapeAdhesivesHeat-resistance test
S

Applicable Standards

ASTM D3654
KS T 1028
ASTM D638
ISO 527
GB/T 1040
ASTM D412
ASTM D882

Technical Specifications

Detailed technical specifications, with test methods and ranges fully listed

ModelQM2000AH
Capacity80L
Specimen channelsMax. 8Ch (optional)
Temperature RangeRT ~ 250°C
Temperature accuracy± 0.1°C / 150°C
StandardKS T 1028, ASTM D 3654
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

High-temperature model
Automatically measures holding power inside a high-temp chamber to evaluate heat-related adhesion changes
Ch (channel)
Independent specimen stations; individual channels can be selected; up to 12 channels
Air Slider
Pneumatic auto-weight slider for smooth loading at high temperature
Temperature accuracy
Control-point deviation from set value, ±0.1 °C/150 °C
Dual Peel Grip
180° and 90° dual-angle peel fixture
KS T 1028 / ASTM D 3654
Tape holding-power test standard

High temp RT~250 °C

Adhesive heat-resistant durability at high temperature

Capacity 80 L

High-temperature oven-style holding chamber

Auto-weight slider

Automatic loading, independent multi-channel selection

Standard KS T1028 / ASTM D3654

Aligned with holding-power standards

Automatic measurement memory

Automatic measurement and data memory

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments builds on servo control and precision sensing, specializing in the R&D and manufacture of premium physical-property testing instruments. Founded in 2004, we bring two decades of in-house R&D, with three core product lines and more than a thousand units delivered.

Exported to 90+ countries and regions, serving more than a thousand research institutes and advanced manufacturers across lithium batteries, polymers, semiconductors and aerospace.

"Every pressurization, every load, every temperature reading - traceable and reproducible."

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

QM2000AH core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications; designed and made in Korea; exported to 90+ countries and regions

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading global new-energy materials companies across the full Korean power-battery, Li-battery separator and solid-electrolyte value chain

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Measures the heat-resistant holding of tape, labels and adhesives at high temperature - authoritative research on high-temperature holding evaluation

Case Studies in Construction Materials · 2024 High-temperature inorganic adhesive

High-temperature modification of magnesium-phosphate inorganic adhesive and its bond to CFRP-sheet/concrete

Studies the high-temperature modification of magnesium-phosphate inorganic adhesive and its bond to CFRP-concrete.

Case Stud. Constr. Mater. (DOI: 10.1016/j.cscm.2024.e03136), Liu et al.View Source →
J. Thermal Spray Technology · 2023 High-temperature creep

Creep deformation of MCrAlY bond-coat studied by high-temperature creep indentation

Studies creep deformation of MCrAlY bond coats by high-temperature creep indentation.

J. Therm. Spray Technol. (DOI: 10.1007/s11666-023-01644-9), Arai & OhmaruView Source →
J. Cleaner Production · 2022 Heat-resistant adhesive

High-temperature soymeal adhesive based on disulfide rearrangement and multi-crosslinking: water resistance and pre-press adhesion

Water resistance and pre-press adhesion of a high-temperature soymeal adhesive based on disulfide rearrangement.

J. Cleaner Prod. (DOI: 10.1016/j.jclepro.2022.133709), Yan et al.View Source →
J. Applied Polymer Science · 2017 High-temperature tensile

High-temperature tensile behavior of glass-fiber-reinforced polymer composites at different crosshead speeds

Studies the high-temperature tensile behavior of GFRP at different crosshead speeds.

J. Applied Polymer Science (DOI: 10.1002/app.44715), Mahato et al.View Source →
Key Engineering Materials · 2007 Loading rate

Effect of loading rate and shear pre-strain on adhesive-layer fatigue strength of single-lap joints

Studies the effect of loading rate and shear pre-strain on bonded-joint fatigue strength.

Key Eng. Mater. (DOI: 10.4028/www.scientific.net/kem.340-341.1479), Takiguchi & YoshidaView Source →
Key Engineering Materials · 1996 High-temperature laminate

Ultra-high-temperature creep-resistant laminate

Discusses the design of creep-resistant laminates at very high temperature.

Key Eng. Mater. (DOI: 10.4028/www.scientific.net/kem.127-131.3), KellyView Source →

FAQ

Answers to common questions about the QM2000AH automatic holding-power tester (high-temperature model)

What is the QM2000AH mainly used for? +

The QM2000AH is a high-temperature automatic retention tester that measures the holding power of tape and adhesives at elevated temperature, automatically tracking how adhesion changes with heat and evaluating heat-resistant durability.

What are the key parameters of the QM2000AH? +

Refer to the specification table: chamber capacity 80L, specimen channels Max. 12CH, temperature range RT ~ 250°C, temperature accuracy ±0.1°C/150°C.

How is high-temperature loading performed? +

Pneumatic loading via an auto-weight slider (Air Slider); individual channels can be selected, and the whole test is measured automatically with memory recording.

How accurate is the temperature control? +

High-temp zone accuracy up to ±0.1°C/150°C, ensuring consistent high-temp holding-test conditions across batches and reproducible data.

Which test standards are supported? +

Compliant with KS T 1028, ASTM D 3654 tape holding-power test standards.

Which options are supported? +

180° & 90° Dual Peel Grips can be installed, with custom channel combinations supported.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks; custom configurations are delivered per the contract lead time once options are confirmed.

How are certification and after-sales service secured? +

The machine carries CE / RoHS certifications and undergoes three-tier calibration before shipment; after-sales includes 2-hour emergency response, on-site installation, a 1-year full-machine warranty and lifetime software upgrades.
