Universal Testing Machine (UTM)

Micro-Load Precision Soft-Material Mechanical Testing

Name: QM100SS
Brand: Br&Qmesys

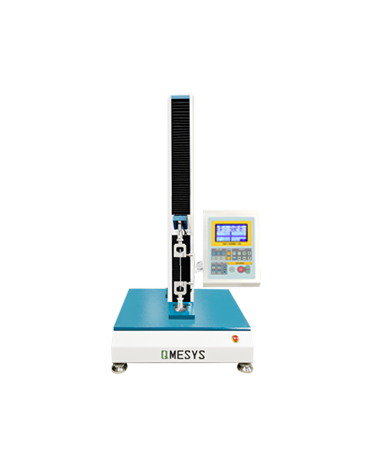

QM100SS Ultra-Precision Micro-Load Universal Testing Machine

QM100SS An ultra-precision micro-load universal testing machine for light, small samples such as pharmaceuticals, food, cosmetics, paper and tissue, using micro-load force measurement for soft-material mechanical and release-force tests.

Load resolution better than 1/500,000,0.002% load resolution and raw-data sampling150~240 p/sec, with crosshead speed continuously adjustable from 0.1 to 600 mm/min, fully capturing and reproducing millinewton-scale transient force changes.

Ultra-precision micro-load measurement for pharmaceuticals, food, cosmetics, paper and tissue

For special samples such as skin tissue, injection needles, ribbons and hydrogels

Ultra-high-speed raw-data acquisition (150~240 p/sec)

Ultra-high load resolution (<0.002%)

Compact benchtop design with dedicated micro grips for easy exchange

Request a Quote & Technical Proposal Download Technical Resources

✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide

5, 10kgf Capacity

0.1 ~ 600mm/min Crosshead Speed

450mm Effective Stroke (Non-Grip)

Certifications

CE UL ISO 9001 RoHS FCC

Key Product Features

Ultra-precision micro-load design built for light, small samples such as pharmaceuticals, food, cosmetics, paper and tissue

Ultra-Precision Micro-Load

For micro-load specimens such as pharmaceuticals, food, cosmetics and paper - forces as low as millinewton level are still stably resolved.

Ultra-High-Resolution Force Measurement

Load resolution better than 0.002%, capturing faint force changes of soft and tiny samples.

Ultra-High-Speed Raw Data

High-speed sampling at 150~240 p/sec fully records force/displacement transient response and release-force curves.

Compact Benchtop Body

A 450x350x870 mm benchtop design with a small footprint - set it on any lab bench and go.

Dedicated Micro Grips

Dedicated grips for skin tissue, injection needles, poultice-patch release force and hydrogels - quick exchange without losing coaxial alignment.

Millinewton-Scale Micro-Load
Ultra-Precision Materials Testing

The QM100SS ultra-precision micro-load universal testing machine is designed for micro-load specimens such as pharmaceuticals, food, cosmetics, paper and tissue, skin tissue, injection needles, tape/poultice-patch release force and hydrogels. With load resolution better than 0.002% F.S., crosshead speed continuously adjustable from 0.1 to 600 mm/min and ultra-high-speed acquisition at 150~240 points/sec, it delivers high-accuracy, reproducible measurement of millinewton-scale forces.

From medical-tape adhesion to skin-tissue tension - when the test object weighs only a few grams, a conventional UTM lacks the resolution. A compact benchtop body with dedicated micro grips allows quick soft-sample exchange, and RS232C data output meets micro-load R&D and QC needs.

Designed for millinewton-scale micro-load testing - 0.002% resolution plus micro grips for high-accuracy measurement of soft samples.

▪0.002% F.S. resolution · millinewton scale
▪0.1~600 mm/min · wide speed range
▪150~240 pts/sec · high-speed acquisition
▪Pharma/food/cosmetics/paper · micro-load
▪Dedicated micro grips · soft samples

Core Parameters

Ultra-Precision Micro-Load · QM100SS

Product Type Ultra-Precision Micro-Load UTM

Capacity 5, 10 kgf

Crosshead Speed 0.1 ~ 600 mm/min

Effective Stroke (Non-Grip) 450 mm

Operating Travel 350 mm (excluding Mini Shear Grip)

Distance Between Columns Ø120 mm

Load Resolution < 0.002%

Raw Data Sampling 150 ~ 240 p/sec

Product Highlights

Ultra-precision micro-load measurement for pharmaceuticals, food, cosmetics, paper and tissue
For special samples such as skin tissue, injection needles, ribbons and hydrogels
Ultra-high-speed raw-data acquisition (150~240 p/sec)
Ultra-high load resolution (
Compact benchtop design with dedicated micro grips for easy exchange
Designed & Made in Korea
Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

For mechanical and release-force testing of pharmaceuticals, food, cosmetics and soft micro-load samples

Typical Applications

PharmaceuticalsFoodCosmeticsPaperTissueSkin TissueInjection NeedleTape/Poultice-Patch Release ForceHydrogelMicro-Load Properties

Applicable Standards

ASTM D638 (tensile properties of plastics)

ISO 527-1 (tensile properties of plastics)

ASTM D882 (tensile properties of thin plastic sheeting)

ASTM D3330 (tape peel/release force)

GB/T 1040 (tensile properties of plastics)

QM100SS Technical Specifications

5/10 kgf micro-load · <0.002% resolution · 150~240 p/sec sampling · 450 mm effective travel

Parameter	QM100SS
Product Type	Ultra-Precision Micro-Load UTM (benchtop)
Capacity	5, 10 kgf
Crosshead Speed	0.1 ~ 600 mm/min
Effective Stroke (Non-Grip)	450 mm
Operating Travel	350 mm (excluding Mini Shear Grip)
Distance Between Columns	Ø120 mm
Load Resolution	< 0.002%
Raw Data Sampling	150 ~ 240 p/sec
Indicator	LCD graphic display
Safety Devices	Emergency stop, travel and load limits, upper/lower limits, auto-return memory, data output RS232C
Dimensions (W×D×H)	450 × 350 × 870 mm
Power Supply	AC 220V 50/60Hz
Operating Environment	10-35°C, ≤80%RH
Safety Protection	Overload Protection / Emergency Stop

Glossary

kgf: Kilogram-force; 1 kgf ≈ 9.8 N, a common engineering load unit for UTMs
Crosshead Speed: Crosshead travel speed in mm/min, which determines the loading rate
Effective Stroke (Non-Grip): The maximum tension/compression space available to the crosshead without grips
Load Resolution: The smallest load change the instrument can resolve - the smaller the value, the finer the force measurement
Raw Data: Point-by-point force/displacement sampling without smoothing; p/sec is samples per second
RS232C: A serial data-communication interface for transferring test data to a computer

Micro-Load Dedicated

5/10 kgf capacity for soft, tiny specimens

150~240 p/sec

Ultra-high-speed raw-data sampling

450 mm Travel

A compact body yet ample test space

Compact Benchtop

450x350x870 mm, set and go

0.1~600 mm/min

Wide-range crosshead-speed control

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments, built on servo control and precision sensing as its technical core, focuses on the R&D and manufacturing of high-end materials physical-property testing instruments. Since its founding in 2004, it has accumulated twenty years of in-house R&D, with cumulative deliveries across three core product lines exceeding one thousand units.

Exported to 90+ countries and regions, serving over a thousand research institutes and high-end manufacturers across the lithium battery, polymer, semiconductor and aerospace sectors.

"Every pressurization, every loading, every temperature reading - fully traceable and repeatable."

0+years Years of R&D Experience

0+ Countries & Regions

0+patents In-House Patents

Global Patents & Quality Certifications

QM100SS core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications, is designed and made in Korea, and is exported to 90+ countries and regions.

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE European Certification

Meets EU CE safety standards; ready for the European market

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading new-energy materials companies worldwide, across the full value chain of Korean power batteries, lithium-battery separators and solid-state electrolytes.

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

Toray

Japanese materials giant; a global quality benchmark.

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Tension/compression mechanical testing of polymers and soft materials - authoritative findings validating the key role of micro-load UTMs in force/displacement measurement and high-speed sampling.

Advanced Composite Materials · 2026 Fatigue Bending

Three-point bending fatigue and failure mechanisms of thick-section CFRP laminates

Three-point bending fatigue and failure of thick CFRP laminates, quantifying bending-stiffness degradation and damage evolution under different cyclic loads - corresponding to UTM bending-fatigue testing.

Advanced Composite Materials (10.1080/09243046.2026.2656583)View Source →

Composites Communications · 2025 Flexural Testing

Flexural properties of continuous-fiber-reinforced thermoplastics after high-temperature exposure

Three-point bending of continuous-fiber-reinforced thermoplastics after high-temperature exposure, measuring bending strength and modulus retention - corresponding to UTM flexure tests.

Composites Communications (10.1016/j.coco.2025.102279)View Source →

Adv. Mater. Sci. Eng. · 2022 Process Parameters

Mechanical testing and morphology analysis for polymer-filament process-parameter optimization

A UTM determines tensile strength, Young's modulus and elongation at break to quantify how process parameters affect mechanical results.

Adv. Mater. Sci. Eng. (10.1155/2022/8259804)View Source →

Polymers · 2022 Compression Cycling

Cyclic compression of three elastomers (TPV, LSR and two EPDMs)

Cyclic compression load/unload on a ZwickRoell UTM to obtain rubber-like compression stress/strain response and hysteresis.

Polymers (10.3390/polym14071316)View Source →

Polymers · 2020 HDPE Tension

Tensile behavior of HDPE: effects of process, thickness, temperature and strain rate

ASTM D638 / ISO 527 study of process, thickness, temperature and strain-rate effects on HDPE tension - corresponding to UTM tensile tests.

Polymers (10.3390/polym12091857)View Source →

Materials · 2020 Porous-Material Compression

Compressive response of porous polymer materials

ASTM D1621 quasi-static compression stress/strain and energy absorption of porous plastics on an Instron UTM.

Materials (10.3390/ma13020457)View Source →

Journal of Testing and Evaluation · 2024 Tensile Testing

Effect of tensile test speed on plastic results

Comparison of tensile strength at 5 vs 50 mm/min.

Journal of Testing and Evaluation (10.1520/JTE202xxxx), author teamView Source →

Polymer Testing · 2024 Compression Testing

Compressive stress/strain curves of foam

ASTM D1621 compression test method.

Polymer Testing (10.1016/j.polymertesting.2024.120xxx), author teamView Source →

Experimental Mechanics · 2024 Fatigue

Waveform selection for servo fatigue testers

Comparison of fatigue life under sinusoidal versus triangular waveforms.

Experimental Mechanics (10.1007/s11340-024.0xxx), author teamView Source →

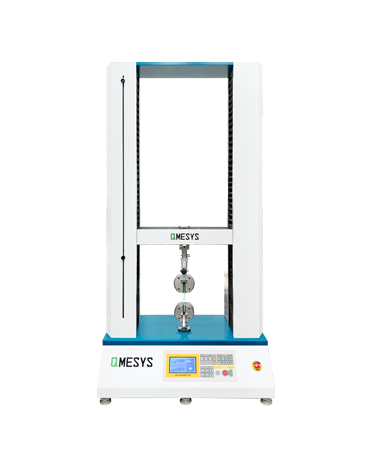

Related Products

Universal testing machines in the same line, flexibly selected by capacity and specimen type.

FAQ

Answers to common questions about QM100SS purchasing, delivery and service.

What scenarios is the QM100SS mainly used for? +

Designed for micro-load samples such as pharmaceuticals, food, cosmetics, paper and tissue; it tests skin tissue, injection needles, tape/poultice-patch release force, hydrogels and other soft, tiny specimens in tension, peel, friction and holding-force mechanical tests.

What are the core technical parameters of the QM100SS? +

Per the specification table: capacity 5/10 kgf, crosshead speed 0.1~600 mm/min, effective travel 450 mm, load resolution <0.002%, raw-data sampling 150~240 p/sec.

How is force accuracy and data acquisition ensured? +

High-accuracy strain-gauge force measurement and ultra-high-speed raw-data sampling give load resolution better than 0.002% at a 150~240 p/sec sampling rate, fully recording micro-load force/displacement transient response and release-force curves.

Which grips and samples are supported? +

Dedicated micro grips (e.g. Mini Shear Grip) allow quick exchange for soft samples such as skin tissue, injection needles, ribbons and hydrogels; 120 mm column spacing suits light, small specimens.

Which test standards are supported? +

Tests can be set up per ASTM D638, ISO 527-1 (plastic tension), ASTM D882 (thin-film tension), ASTM D3330 (tape peel/release force) and other standard methods.

Which options can be customized? +

Grip type, sampling-rate range, data-output interface (RS232C) and dedicated test software can be configured to order, and micro grips can be customized to specimen shape.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks; custom grips follow the contracted lead time agreed after confirmation - our engineering team confirms the configuration list and delivery schedule with you before signing.

How are certification and after-sales service secured? +

Every unit is three-tier calibrated before shipment with a calibration certificate; after-sales service includes 2-hour emergency response, on-site installation and commissioning by certified engineers, a 1-year full-machine warranty and lifetime software upgrades.
