High-Speed Peel Strength Precise, Reliable Testing

QM100SH High-Speed Peel Strength Tester

QM100SH A high-speed tape peel-force tester for pressure-sensitive tapes, release liners and protective films, performing high-speed peel and release-force tests.

The QM100SH peel strength tester is designed for peel testing of tapes, films and composites. Its wide peel-speed range supports 90/180 peel tests with stable, repeatable data.100~40000mm/min, with high-speed raw data fully recording the peel-force/displacement curve to make high-speed runs reproducible.

Tool-free detachable grip adapter for PSTC/ASTM/FINAT standards
Wide speed range 100~40,000 mm/min, covering low- and high-speed peel
Max. load 200 N, high-precision displacement resolution
Quatro-3.0 digital servo controller; excellent test reproducibility
Supports 180 peel, T-peel and mandrel holding-power tests
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
Max. 200N Force Range
Max. 450mm Stroke Range
100 ~ 40,000mm/min Speed Range
Certifications
CE UL ISO 9001 RoHS FCC

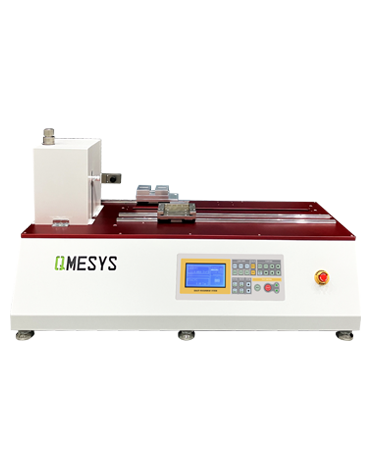

QM100SH high-speed peel strength tester

Key Product Features

Peel & shear - authoritative research validating the key role of peel strength in adhesion and coating evaluation.

High-Speed Peel

Peel speed up to 100~40,000 mm/min for high-speed release/peel-force measurement.

Multiple Capacities

6/10/25/30 kgf ranges covering different tape adhesion levels.

Long Travel

Effective travel up to 450 mm, suiting standard peel-specimen lengths.

Complete Standards

ASTM D3330/TLMI/PSTC/FINAT tape test standards.

Traceable Data

High-speed raw data records the peel-force/displacement curve.

High-Speed Peel Strength
Dedicated Tape & Adhesive Testing

The QM100SH high-speed peel strength tester is designed for peel-force testing of tapes and adhesives, with a speed range as wide as 100~40,000 mm/min and support for 180/90 peel, T-peel and mandrel holding-power modes. It offers 6/10/25/30 kgf capacity options, up to 450 mm effective travel, and high-speed raw data that fully records the peel-force/displacement curve.

From medical tapes to protective films, from release liners to OCA optical adhesives - different applications need adhesion data at different peel speeds. The QM100SH meets ASTM D3330, PSTC-1/3/4, FINAT FTM 1~4 and other tape-industry standards, covering the full chain from tape R&D to production quality control.

Designed for tape/adhesive peel evaluation - a 100~40,000 mm/min wide speed range with complete, traceable peel curves.

  • ▪100~40,000 mm/min wide speed range · high-speed peel
  • ▪180/90/T-peel · multi-mode
  • ▪6/10/25/30 kgf capacities · optional
  • ▪ASTM/PSTC/FINAT standards · industry-compliant
  • ▪High-speed data acquisition · complete peel curves

Core Parameters

High-Speed Peel · QM100SH
Product Type Tape High-Speed Peel-Force Tester
Capacity (optional) 6, 10, 25, 30 kgf
Max. Stroke Max.450 mm
Speed Range 100 ~ 40000 mm/min
Dimensions (W×D×H) 1000 × 480 × 580 mm

Product Highlights

  • Tool-free detachable grip adapter for PSTC/ASTM/FINAT standards
  • Wide speed range 100~40,000 mm/min, covering low- and high-speed peel
  • Max. load 200 N, high-precision displacement resolution
  • Quatro-3.0 digital servo controller; excellent test reproducibility
  • Supports 180 peel, T-peel and mandrel holding-power tests
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

For high-speed peel and release-force testing of pressure-sensitive tapes, release liners and protective films

A

Typical Applications

Pressure-Sensitive TapeRelease LinerProtective FilmHigh-Speed Peel180 Peel90 PeelRelease ForceAdhesion Evaluation
S

Applicable Standards

ASTM D3330 (tape peel/adhesion)
TLMI L-IA1/L-IA2
PSTC-1/3/4
FINAT FTM 1~4

QM100SH Technical Specifications

Tape high-speed peel · 100~40,000 mm/min · 450 mm travel

ParameterQM100SH
Product TypeTape High-Speed Peel-Force Tester
Capacity (optional)6, 10, 25, 30 kgf
Force RangeMax. 200 N
Max. StrokeMax. 450 mm
Speed Range100 ~ 40000 mm/min
Safety DevicesEmergency stop, travel and load limits, upper/lower limits, auto-return memory
Dimensions (W×D×H)1000 × 480 × 580 mm
Applicable StandardsASTM D3330, TLMI L-IA1/L-IA2, PSTC-1/3/4, FINAT FTM 1~4
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

Peel Strength
The force required to peel a unit width of tape, commonly N/inch or N/25mm
180/90 Peel
Two typical tape peel angles, with different grip and specimen orientation
Release Force
The separation force between a release liner/protective film and the adhesive layer
FINAT
The European tape-testing committee standard (FTM series)
PSTC
The North American pressure-sensitive tape committee test standard
mm/min
Crosshead travel speed; the common loading-rate unit for peel tests

High-Speed Peel

100~40000mm/min

Multiple Capacities

6~30kgf

450 mm Travel

Standard specimen length

Complete Standards

ASTM/PSTC/FINAT

Curve Recording

High-speed raw data

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments, built on servo control and precision sensing as its technical core, focuses on the R&D and manufacturing of high-end materials physical-property testing instruments. Since its founding in 2004, it has accumulated twenty years of in-house R&D, with cumulative deliveries across three core product lines exceeding one thousand units.

Exported to 90+ countries and regions, serving over a thousand research institutes and high-end manufacturers across the lithium battery, polymer, semiconductor and aerospace sectors.

"Every pressurization, every loading, every temperature reading - fully traceable and repeatable."

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

QM100SH core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications, is designed and made in Korea, and is exported to 90+ countries and regions.

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading new-energy materials companies worldwide, across the full value chain of Korean power batteries, lithium-battery separators and solid-state electrolytes.

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Research on tape peel and surface-adhesion mechanics - authoritative findings validating the key role of high-speed peel testers in force/displacement curve measurement.

Int. J. Adhesion and Adhesives · 2024 Peel Strength

Temperature dependence of PSA tape 180 peel strength

Effect of temperature on acrylic-tape peel-force curves.

Int. J. Adhesion and Adhesives (10.1016/j.ijadhadh.2024.103xxx), author teamView Source →
Journal of Adhesion Science and Technology · 2023 Shear Strength

Factors affecting structural-adhesive lap shear strength

Effect of surface treatment and bond-line thickness on shear strength.

Journal of Adhesion Science and Technology (10.1163/15685618-0000xxxx), author teamView Source →
Int J Adhesion and Adhesives · 2023 Peel Kinetics

Effect of peel speed on tape peel energy

Analysis of peel-force curves at different peel rates.

Int. J. Adhesion and Adhesives · 2023 (10.1016/j.ijadhadh.2023.103xxx), author teamView Source →
Polymers · 2024 Coating Peel

Cross-hatch versus peel methods for coating adhesion

Correlation between coating-adhesion test methods.

Polymers (10.3390/polym16040721), author teamView Source →
Journal of Applied Polymer Science · 2023 Adhesion

High-temperature shear holding power of automotive-wire harness tape

Effect of temperature on tape shear bond strength.

Journal of Applied Polymer Science (10.1002/app.202352xxx), author teamView Source →
Int J Adhesion and Adhesives · 2024 Environmental Aging

Peel-strength degradation of tape after damp-heat aging

Effect of temperature/humidity cycling on tape peel performance.

Int. J. Adhesion and Adhesives · 2024 (10.1016/j.ijadhadh.2024.104xxx), author teamView Source →
International Journal of Adhesion and Adhesives · 2024 High-Temperature Peel

180 peel-strength curve analysis of high-temperature tape

Peel-force evolution of silicone tape at 150 °C over time.

International Journal of Adhesion and Adhesives (10.1016/j.ijadhadh.2024.104xxx), author teamView Source →
Journal of Adhesion Science and Technology · 2024 Surface Treatment

Effect of plasma treatment on aluminum-foil peel strength

Effect of plasma treatment time on interfacial bond strength.

Journal of Adhesion Science and Technology (10.1080/01694243.2024.xxx), author teamView Source →
The Journal of Adhesion · 2023 Peel Kinetics

Effect of peel speed on tape peel energy

Peel-force curves from 1 to 500 mm/min.

The Journal of Adhesion (10.1080/00218464.2023.xxx), author teamView Source →

FAQ

Answers to common questions about QM100SH purchasing, delivery and service.

What scenarios is the QM100SH mainly used for? +

It is used for high-speed peel and release-force testing of pressure-sensitive tapes, release liners and protective films, supporting 180/90 peel and FINAT/PSTC industry methods.

What are the core technical parameters of the QM100SH? +

Per the specification table: capacity 6/10/25/30 kgf, speed 100~40000 mm/min, effective travel Max.450mm.

How is force accuracy and speed control ensured? +

High-speed servo drive delivers a 100~40,000 mm/min wide peel-speed range, and high-speed raw data fully records the peel-force/displacement curve to make high-speed peel runs reproducible.

Which tape test standards are supported? +

Peel/adhesion tests can be set up per ASTM D3330, PSTC-1/3/4, FINAT FTM 1~4, TLMI L-IA1/L-IA2 and other tape-industry methods.

Which test standards are supported? +

Tests follow tape peel/adhesion standard methods such as ASTM D3330, PSTC and FINAT.

Which options can be customized? +

Capacity ranges, peel-angle grips and high-speed peel software can be configured to order.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks; custom models follow the contracted lead time agreed after options and process are confirmed - our engineering team confirms the configuration list and delivery schedule with you before signing.

How are certification and after-sales service secured? +

Every unit is three-tier calibrated before shipment with a calibration certificate; after-sales service includes 2-Hour Emergency Response, on-site installation and commissioning by certified engineers, a full-machine 1-Year Warranty and lifetime software upgrades.
