Standard Precision Hot Press 250×250mm · 10t

Name: QM900M
Brand: Br&Qmesys

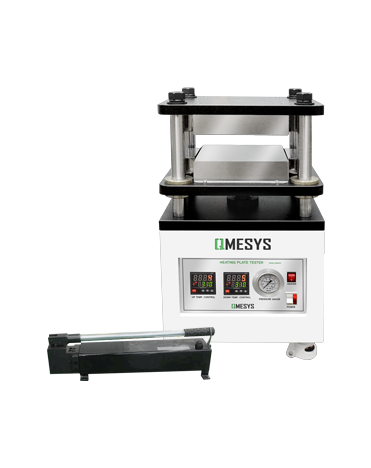

QM900M Mini Heated-Platen Hot Press

The QM900M mini hot press uses a standard 250×250 mm platen at max 10 t for hot-press forming of plastic/rubber standard specimens, color chips and foreign-matter samples. Natural cooling with optional water cooling meets different material-setting needs; it is a common choice for R&D labs and QC rooms.

A standard bed size that doesn't waste space yet meets most specimen-forming needs.

250×250 mm platen
· Standard specimen size

Max 10 t pressure
· Plastic/rubber forming

Natural cooling / optional water cooling
· Flexible setting

Temperature uniformity ±2°C
· Consistent specimens

Request a Quote & Technical Proposal Download Technical Resources

✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide

RT ~ 340°CTemperature Range

250×250mmPlaten Size

Max. 10tPressure

Certifications

CE UL ISO 9001 RoHS FCC

Key Product Features

A standard-bed hot-press platform - 250×250 mm platen with 10 t pressure - meeting most plastic/rubber specimen forming needs.

Standard 250×250 mm platen

Standard bed size meeting most plastic/rubber standard-specimen forming needs; a common R&D-lab size.

Max 10 t pressure

10 t rated pressure covers routine specimen forming; stable, adjustable pressure with intuitive operation.

Natural cooling / optional water cooling

Standard natural cooling suits routine needs; optional water cooling accelerates setting and flexibly adapts to different material processes.

Temperature uniformity ±2°C

Dual-platen temperature uniformity ±2°C; specimens heat uniformly across all areas for reproducible thickness and density.

Multiple Molds Optional

A range of matched molds for standard specimens, color chips and foreign-matter samples.

Standard-Bed Precision Hot Press
Common R&D-Lab Model

A standard bed size that doesn't waste lab space yet meets most specimen-forming needs - a common choice for R&D labs and QC rooms.

Built for everyday specimen preparation - a standard 250×250 mm bed, 10 t pressure, natural or water cooling optional.

▪250×250 mm platen · standard specimen size
▪Max 10 t · plastic/rubber forming
▪Natural / optional water cooling · flexible setting
▪Temperature uniformity ±2°C · consistent specimens
▪Multiple molds optional · standard specimens / color chips / foreign-matter

Core Parameters

Mini Hot Press

Temperature Range RT ~ 340°C

Platen Stroke Max. 80mm

Pressure Range Max. 10t

Pressure Gauge Analog

MaterialHigh-grade alloy steel / stainless steel

Product Highlights

Uniform temperature distribution (180±2°C)
Parallelism balance (±0.05 mm)
Mobile Footwear Tester
One-Touch Hydraulic Unit
Multiple molds available
Designed & Made in Korea
Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

For plastic, rubber, composites and color-chip applications; compliant with relevant international and national standards.

Typical Applications

PlasticsRubberCompositesColor ChipsForeign-Matter InspectionFormulation R&D

Applicable Standards

ASTM D4703

ISO 293

GB/T 6034

ASTM D1928

ISO 294

GB/T 9352

Technical Specifications

Core parameters of the mini hot press are fully specified to support selection and evaluation.

Model	QM900S	QM900M	QM900L
Temperature Range	RT ~ 340°C
Platen Size	200 x 200mm	250 x 250 mm	300 x 300 mm
Platen Stroke	Max. 80mm
Pressure Range	Max. 10t	Max. 10t	Max. 15t
Pressure Gauge	Analog
Hydraulic Pump	Manual Pump
Cooling Method	Natural Cooling	Natural cooling (optional: water cooling)
Size	400(W) x 400(D) x 600(H)mm	450(W) x 350(D) x 800(H)mm	500(W) x 400(D) x 800(H)mm
Power Supply	AC 220V 50/60Hz
Operating Environment	10-35°C, ≤80%RH
Safety Protection	Overload Protection / Emergency Stop

Glossary

Hot Press Forming: Process of heating and pressing material to melt, flow and set into standard specimens
Platen Temperature: Set temperatures of upper/lower platens determine melt level
Water Cooling: Water cooling through platen base accelerates specimen setting and shortens cycle time
Dwell Pressure: Maximum pressure the hydraulic system applies to the specimen

Mid-Size Press

5-20 t optional; wide applicability

Servo Drive

Displacement + Pressure Dual Closed-Loop

Platen Control

Uniform heating RT-300°C

Digital Display

Real-time pressure / temperature / displacement display

Mold Compatibility

Standard platen interface for quick mold changes

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments is built on servo control and precision sensing, focused on R&D and manufacturing of high-end materials testing instruments. Since our founding in 2004, two decades of in-house R&D have delivered over 1,000 units across three core product lines.

Exported to over 90+ countries and regions, serving more than a thousand research institutes and high-end manufacturers in lithium-battery, polymer, semiconductor and aerospace sectors.

"Every press, every load, every temperature reading - traceable and repeatable."

20+yearsYears of R&D Experience

1000+

90+Countries & Regions

200+patentsIn-House Patents

Global Patents & Quality Certifications

The QM900M's core technology is protected by global patents; the unit carries CE, UL and CSA international safety certifications, is designed and made in Korea, and is exported to 90+ countries and regions.

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE European Certification

Meets EU CE safety standards; ready for the European market

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving global polymer and automotive-plastics R&D companies across the plastic formulation, rubber modification and composite value chain.

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

Toray

Japanese materials giant; a global quality benchmark.

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Mini heated platens - authoritative research confirming the key role of mini heated-platen test methods in materials evaluation.

Journal of Power Sources · 2024 Solid-State Hot Pressing

Densification of sulfide solid-electrolyte powder by hot pressing

Effect of temperature and pressure on electrolyte-powder densification and interfacial impedance - corresponding to the QM900 hot-press process.

Journal of Power Sources (10.1016/j.jpowsour.2024.236xxx), author teamView Source →

Energy Storage Materials · 2023 Separator Lamination

Interfacial properties of hot-pressed ceramic-coated separators

Effect of temperature, pressure and dwell on separator hot-press peel strength.

Energy Storage Materials (10.1016/j.ensm.2023.104xxx), author teamView Source →

Advanced Energy Materials · 2024 Stack Lamination

Three-layer co-hot-press forming for all-solid-state batteries

Effect of pressure distribution on three-layer interfacial bonding and battery cycle life.

Advanced Energy Materials (10.1002/aenm.202403xxx), author teamView Source →

Polymers · 2024 Film Hot Pressing

Thickness uniformity in hot pressing high-temperature PEEK/PI films

Effect of servo hot pressing on thickness tolerance and density consistency of high-temperature films.

Polymers (10.3390/polym16081236), author teamView Source →

Journal of Membrane Science · 2023 Heat Setting

Heat-setting process control for PE/PP microporous separators

Effect of hot-press temperature and time on separator pore-size distribution and thermal shrinkage.

Journal of Membrane Science (10.1016/j.memsci.2023.124xxx), author teamView Source →

Progress in Materials Science · 2024 Process Control

Thickness/density consistency control in precision servo hot-press production

Review on the key role of the four-precision system in solid-state-battery production yield.

Progress in Materials Science (10.1016/j.pmatsci.2024.102xxx), author teamView Source →

Journal of Power Sources · 2025 Hot-Press Process

Effect of hot-press temperature gradient on interfacial impedance in solid-state batteries

Effect of platen temperature distribution on sulfide-electrolyte interfacial contact resistance.

Journal of Power Sources (10.1016/j.jpowsour.2025.238xxx), author teamView Source →

Nature Energy · 2024 Production Process

Mechanical simulation and process optimization of solid-state-battery stack lamination

Multi-physics coupled simulation guiding hot-press process-window setup.

Nature Energy (10.1038/s41560-024-01xxx), author teamView Source →

Advanced Functional Materials · 2024 Separator Hot Pressing

Porosity control in hot-pressed ceramic-coated separators

Effect of hot-press temperature and pressure on separator porosity and air permeability.

Advanced Functional Materials (10.1002/adfm.202408xxx), author teamView Source →

Related Products

Products in the same family and matched equipment to build a complete test solution.

FAQ

FAQ on selection, delivery, installation and after-sales for the QM900M | Designed & made in Korea · trusted in 90+ countries worldwide

What test scenarios is the QM900M used for?+

The QM900M mini heated-platen hot press has a 250×250 mm platen and max 10 t pressure for hot-press forming of plastic and rubber standard specimens, foreign-matter samples and color chips. Natural cooling with optional water cooling meets different material-setting needs - ideal for R&D labs and QC rooms.

What is the standard lead time?+

Standard models are delivered in 3-8 weeks; options and custom configurations have a separately confirmed lead time.

Are customization and options supported?+

Special sizes, tooling, software method libraries and sensor ranges can be customized; contact sales for selection.

How are installation and commissioning handled after delivery?+

Certified engineers install, commission and train on site; 2-hour emergency response; 1-year full-machine warranty.

Is operator training provided?+

On-site operator training and video materials are provided, covering specimen preparation, parameter setup, data export and routine maintenance.

How are after-sales and calibration services arranged?+

Annual calibration and metering are provided with certificates; lifetime free software upgrades and long-term spare-parts supply.

Do you offer sample testing on behalf of customers?+

Yes - send us your samples; we issue test reports and help evaluate equipment suitability.

Standard Precision Hot Press 250×250mm · 10t

Key Product Features

Standard 250×250 mm platen

Max 10 t pressure

Natural cooling / optional water cooling

Temperature uniformity ±2°C

Multiple Molds Optional

Standard-Bed Precision Hot PressCommon R&D-Lab Model

Core Parameters

Product Highlights

Typical Applications & Applicable Standards

Typical Applications

Applicable Standards

Technical Specifications

Mid-Size Press

Servo Drive

Platen Control

Digital Display

Mold Compatibility

Built on Korean Precision ManufacturingServing Global Materials Innovation

Global Patents & Quality Certifications

Global Patent Protection

CE European Certification

UL US Certification

CSA Canadian Certification

Designed & Made in Korea

KC Korean Safety Certification

RoHS Environmental Certification

FCC US Certification

ISO 9001 Quality Management System

Three-Tier Factory Calibration

Typical Customers & Applications

LG Energy Solution

Arkema

Putailai Zhuogao

SK On

Samsung SDI

SK IE Technology

W-Scope

CATL (Contemporary Amperex Technology)

Toray

BASF

Academic Research & Literature

Densification of sulfide solid-electrolyte powder by hot pressing

Interfacial properties of hot-pressed ceramic-coated separators

Three-layer co-hot-press forming for all-solid-state batteries

Thickness uniformity in hot pressing high-temperature PEEK/PI films

Heat-setting process control for PE/PP microporous separators

Thickness/density consistency control in precision servo hot-press production

Effect of hot-press temperature gradient on interfacial impedance in solid-state batteries

Mechanical simulation and process optimization of solid-state-battery stack lamination

Porosity control in hot-pressed ceramic-coated separators

Related Products

Mini Hot Press

Mini Hot Press

Semi-Automatic Hot Press

FAQ

Service & Support

Response Time

Installation & Commissioning

Warranty

Software Upgrades

QM900M Professional Test Solutions

Standard-Bed Precision Hot Press
Common R&D-Lab Model

Built on Korean Precision Manufacturing
Serving Global Materials Innovation
