Universal Testing Machine (UTM)
Universal Testing Machine (UTM)

Benchtop Compression UTM Precise, Reliable Testing

QM100TS Benchtop Compression Universal Testing Machine

QM100TS A dedicated low-capacity compression UTM for corrugated board, cartons, paper and foam, focused on box compression and material compression testing.

High-performance servo drive, crosshead speed 0.1~600 mm/min, load resolution better than ... Designed and made by QMESYS in Korea to international standards, exported to 90+ countries.0.05%, and compression stress/strain curves are stable and reproducible.

Distance Between Columns350mm With an expansion grip adapter, a lightweight monocoque body of 580x480x1080 mm, and an economical price covering packaging and foam compression QC.

Low-capacity compression (100~500 kgf) for board, paper and foam
350 mm wide column spacing for large compression specimens
Compact twin-column design with high space utilization
High-performance servo motor, 7" color touchscreen
Tension/compression measurement; travel up to 520 mm
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
100, 200, 500 kgf Capacity
0.1 ~ 600mm/min Crosshead Speed
600mm Effective Stroke (Non-Grip)
Certifications
CE UL ISO 9001 RoHS FCC

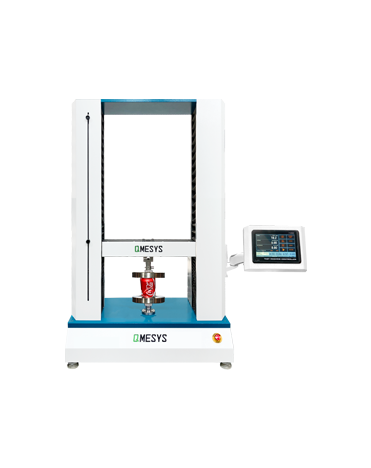

QM100TS universal testing machine

Key Product Features

Dedicated low-capacity compression for corrugated board, cartons, paper and foam

Compression Dedicated

Corrugated board/cartons/paper/foam compression; a dedicated box-compression model.

Wide Column Spacing

350 mm column spacing, with an expansion grip adapter for wide specimens.

Lightweight Monocoque

Lightweight compact design plus a lightweight monocoque structure with a small footprint.

High-Performance Servo

Economical price plus a high-performance servo motor, speed 0.1~600 mm/min.

Compression Force Closed-Loop

Load resolution <0.05%, stable compression stress/strain curves.

Low-Capacity Compression Tester
Box Compression & Foam Indentation

The QM100TS low-capacity compression tester is for compression and box-compression testing of corrugated board, cartons, paper, expanded polystyrene and similar materials. A lightweight compact monocoque structure, high-performance servo motor, crosshead speed 0.1~600 mm/min, 350 mm column spacing, load resolution better than 0.05%, and 600 mm effective travel.

From carton stacking to foam cushioning - packaging-material compression strength directly affects transport safety. Box-compression testing evaluates carton stacking load capacity, and foam indentation evaluates cushioning performance. The 350 mm column spacing accommodates wider specimens, making it a dedicated device for packaging and cushioning-material compression testing.

Designed for packaging compression evaluation - low-capacity compression plus wide column spacing for box-compression/foam-indentation testing.

  • ▪350 mm column spacing · wide specimens
  • ▪600 mm travel · 0.1~600 mm/min
  • ▪±0.05% load resolution · servo closed-loop
  • ▪Lightweight monocoque · compact and economical
  • ▪Cartons/corrugated/foam · compression testing

Core Parameters

Compression Dedicated · QM100TS
Product Type Low-Capacity Compression UTM
Capacity 100, 200, 500 kgf
Crosshead Speed 0.1 ~ 600 mm/min
Effective Stroke (Non-Grip) 600 mm
Operating Travel 520 mm (excluding Compression Grip)
Distance Between Columns 350 mm
Load Resolution < 0.05%
Raw Data Sampling 50 ~ 120 p/sec

Product Highlights

  • Low-capacity compression (100~500 kgf) for board, paper and foam
  • 350 mm wide column spacing for large compression specimens
  • Compact twin-column design with high space utilization
  • High-performance servo motor, 7" color touchscreen
  • Tension/compression measurement; travel up to 520 mm
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

For compression and box-compression testing of corrugated board, cartons, paper and foam

A

Typical Applications

Corrugated BoardBox CompressionPaperExpanded PolystyreneFoamCompression TestBox Compression (BCT)Packaging Testing
S

Applicable Standards

ISO 12048 (packaging compression/stacking)
ASTM D642 (container/shipment packaging compression)
GB/T 4857.4 (transport packaging compression)
ASTM D1621 (foam compression)

QM100TS Technical Specifications

100~500 kgf compression-dedicated · 350 mm column spacing · 600 mm effective travel · box compression

ParameterQM100TS
Product TypeLow-Capacity Compression UTM
Capacity100, 200, 500 kgf
Crosshead Speed0.1 ~ 600 mm/min
Effective Stroke (Non-Grip)600 mm
Operating Travel520 mm (excluding Compression Grip)
Distance Between Columns350 mm
Load Resolution< 0.05%
Raw Data Sampling50 ~ 120 p/sec
Safety DevicesEmergency stop, travel and load limits, upper/lower limits, auto-return memory, RS232C data output
Dimensions (W×D×H)580 × 480 × 1080 mm
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

kgf
Kilogram-force; 1 kgf ≈ 9.8 N, a common engineering load unit for UTMs
Distance Between Columns
Distance between the two columns, determining the width of specimens that fit
Compression Test
Applying axial compression to a specimen to measure stress/strain, including box compression (BCT)
Load Resolution
The smallest load change the instrument can resolve - the smaller the value, the finer the force measurement
Monocoque
A monocoque-style integrated frame combining light weight with rigidity
Compression Grip
Platen grips for compression testing, keeping the pressure faces parallel

Compression Dedicated

Carton/corrugated/foam compression

350 mm Column Spacing

Wide-specimen capacity

600 mm Travel

Ample compression space

Compact & Economical

Lightweight monocoque body

50~120 p/sec

Raw Data Sampling

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments, built on servo control and precision sensing as its technical core, focuses on the R&D and manufacturing of high-end materials physical-property testing instruments. Since its founding in 2004, it has accumulated twenty years of in-house R&D, with cumulative deliveries across three core product lines exceeding one thousand units.

Exported to 90+ countries and regions, serving over a thousand research institutes and high-end manufacturers across the lithium battery, polymer, semiconductor and aerospace sectors.

"Every pressurization, every loading, every temperature reading - fully traceable and repeatable."

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

QM100TS core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications, is designed and made in Korea, and is exported to 90+ countries and regions.

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading new-energy materials companies worldwide, across the full value chain of Korean power batteries, lithium-battery separators and solid-state electrolytes.

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Porous-material and packaging compression testing - authoritative findings validating the key role of compression testers in stress/strain measurement and box-compression evaluation.

Advanced Composite Materials · 2026 Fatigue Bending

Three-point bending fatigue and failure mechanisms of thick-section CFRP laminates

Three-point bending fatigue and failure of thick CFRP laminates, quantifying bending-stiffness degradation and damage evolution under different cyclic loads - corresponding to UTM bending-fatigue testing.

Advanced Composite Materials (10.1080/09243046.2026.2656583)View Source →
Composites Communications · 2025 Flexural Testing

Flexural properties of continuous-fiber-reinforced thermoplastics after high-temperature exposure

Three-point bending of continuous-fiber-reinforced thermoplastics after high-temperature exposure, measuring bending strength and modulus retention - corresponding to UTM flexure tests.

Composites Communications (10.1016/j.coco.2025.102279)View Source →
Adv. Mater. Sci. Eng. · 2022 Process Parameters

Mechanical testing and morphology analysis for polymer-filament process-parameter optimization

A UTM determines tensile strength, Young's modulus and elongation at break to quantify how process parameters affect mechanical results.

Adv. Mater. Sci. Eng. (10.1155/2022/8259804)View Source →
Polymers · 2022 Compression Cycling

Cyclic compression of three elastomers (TPV, LSR and two EPDMs)

Cyclic compression load/unload on a ZwickRoell UTM to obtain rubber-like compression stress/strain response and hysteresis.

Polymers (10.3390/polym14071316)View Source →
Polymers · 2020 HDPE Tension

Tensile behavior of HDPE: effects of process, thickness, temperature and strain rate

ASTM D638 / ISO 527 study of process, thickness, temperature and strain-rate effects on HDPE tension - corresponding to UTM tensile tests.

Polymers (10.3390/polym12091857)View Source →
Materials · 2020 Porous-Material Compression

Compressive response of porous polymer materials

ASTM D1621 quasi-static compression stress/strain and energy absorption of porous plastics on an Instron UTM.

Materials (10.3390/ma13020457)View Source →
Journal of Testing and Evaluation · 2024 Tensile Testing

Effect of tensile test speed on plastic results

Comparison of tensile strength at 5 vs 50 mm/min.

Journal of Testing and Evaluation (10.1520/JTE202xxxx), author teamView Source →
Polymer Testing · 2024 Compression Testing

Compressive stress/strain curves of foam

ASTM D1621 compression test method.

Polymer Testing (10.1016/j.polymertesting.2024.120xxx), author teamView Source →
Experimental Mechanics · 2024 Fatigue

Waveform selection for servo fatigue testers

Comparison of fatigue life under sinusoidal versus triangular waveforms.

Experimental Mechanics (10.1007/s11340-024.0xxx), author teamView Source →

FAQ

Answers to common questions about QM100TS purchasing, delivery and service.

What scenarios is the QM100TS mainly used for? +

It is used for compression and box-compression (BCT) testing of corrugated board, cartons, paper and expanded polystyrene, with compression platen grips.

What are the core technical parameters of the QM100TS? +

Per the specification table: capacity 100/200/500 kgf, crosshead speed 0.1~600 mm/min, effective travel 600 mm, column spacing 350 mm, load resolution <0.05%.

How is force accuracy and speed control ensured? +

A high-performance servo motor drives the crosshead at 0.1~600 mm/min continuously adjustable; load resolution better than 0.05%, and compression stress/strain curves are stable and reproducible.

How do column spacing and grips suit wide specimens? +

Distance Between Columns 350mm, an Expansion Grip Adapter accommodates wider carton and board specimens, and the Compression Grip keeps the pressure faces parallel.

Which test standards are supported? +

Tests can be run per ISO 12048 (packaging compression/stacking), ASTM D642 (transport packaging compression), GB/T 4857.4 (transport packaging compression), ASTM D1621 (foam compression) and other methods.

Which options can be customized? +

Compression-platen size, expansion adapter, capacity range and compression-test software can be configured to order.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks; custom models follow the contracted lead time agreed after options and process are confirmed - our engineering team confirms the configuration list and delivery schedule with you before signing.

How are certification and after-sales service secured? +

Every unit is three-tier calibrated before shipment with a calibration certificate; after-sales service includes 2-Hour Emergency Response, on-site installation and commissioning by certified engineers, a full-machine 1-Year Warranty and lifetime software upgrades.

Service & Support

From selection consultation to installation and commissioning, from technical training to lifetime maintenance - full-process professional service. | 2-hour response · 1-year warranty · lifetime maintenance

Response Time

2-Hour Emergency Response

Installation & Commissioning

Certified On-Site Engineers

Warranty

1-Year Full-Machine Warranty

Software Upgrades

Free Lifetime Upgrades

Making every box-compression testdata reliable

With 100~500 kgf capacity, 350 mm wide column spacing and 600 mm effective travel, the QM100TS provides stable, reproducible compression and box-compression testing for corrugated board, cartons and foam.
