Universal Testing Machine (UTM)
Universal Testing Machine (UTM)

High-Capacity Universal Material Testing, Precision You Can Trust

QM100T High-Capacity Universal Testing Machine

QM100T is a high-load dual-column universal testing machine for high-capacity tension, compression and bending of plastics, composites, carbon fiber, aluminum alloy and steel.

A high-rigidity frame paired with a high-load overload safety system; closed-loop crosshead speed 0.1~600 mm/min. Designed and built by QMESYS in Korea to international standards and exported to 90+ countries worldwide, with load resolution better than 0.02% and raw-data sampling at 150~240 p/sec.

The widest column spacing in its class at 460~660 mm, an effective stroke of 1100 mm, and a rich set of options - wedge grips, extensometers, environmental chambers and safety enclosures - suited to large, high-rigidity specimens.

High-capacity design (1~30 tons) for plastics, composites, carbon fiber, aluminum alloy and steel
460 mm wide column spacing; wedge grips for a wide range of high-capacity specimens
Overload protection system for safe, reliable high-load testing
High-performance servo motor; raw-data acquisition at 150~240 p/sec
Extensometers, strain gauges and environmental chambers available as options
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
1~30 t Capacity
0.1 ~ 600mm/min Crosshead Speed
1100mm Effective Stroke (Non-Grip)
Certifications
CE UL ISO 9001 RoHS FCC

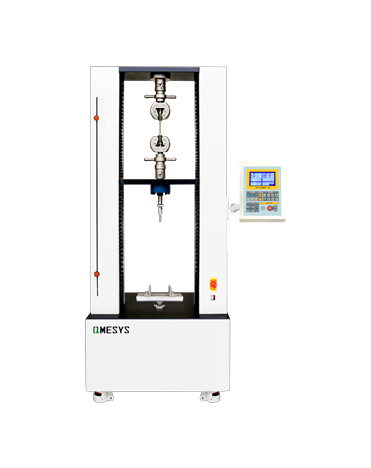

QM100T Universal Testing Machine

Key Product Features

Purpose-built for high-load testing of plastics, composites, carbon fiber, aluminum and steel

High-Load Specialist

1~30 t high load; tension, compression and bending of plastics, composites, carbon fiber, aluminum and steel.

Widest Column Spacing in Class

Column spacing 460~660 mm, suited to large, high-rigidity specimens.

Overload Safety System

High-load overload safety system protects the load cell and operators.

Rich Options

Grips, extensometers, strain gauges, environmental chambers and safety enclosures configured to order.

High-Resolution Load Measurement

Load resolution <0.02%; raw data at 150~240 p/sec.

The Flagship Dual-Column
Platform for High-Load Testing

The QM100T high-capacity dual-column universal testing machine covers 1~30 tons for tension, compression and bending of plastics, composites, carbon fiber, aluminum alloy, steel and other high-load materials. With the widest column spacing in its class at 460~660 mm, crosshead speed 0.1~600 mm/min, effective stroke 1100 mm and load resolution better than 0.02% F.S.

From plastic profiles to carbon-fiber composites, from aluminum alloy to steel - high-load testing demands a rigid frame and high-precision servo drive. The QM100T is equipped with a high-load overload safety system and optional extensometers, environmental chambers and safety enclosures, covering everything from materials R&D to production quality control.

Designed for mechanical evaluation of high-load materials - 1~30 ton capacity plus the widest column spacing in class, a reliable platform for heavy-material testing.

  • ▪1~30 ton capacity · plastics / composites / metals
  • ▪460~660 mm column spacing · widest in class
  • ▪0.1~600 mm/min · 1100 mm stroke
  • ▪0.02% F.S. resolution · high-precision load measurement
  • ▪Overload protection + rich options · chambers / extensometers

Core Parameters

High Load · QM100T
Product Type High-load dual-column universal testing machine
Capacity 1, 2, 5, 10, 20, 30 t
Crosshead Speed 0.1 ~ 600 mm/min
Effective Stroke (Non-Grip) 1100 mm
Operating Travel 650 mm (excluding Wedge Grip)
Distance Between Columns 460 mm
Load Resolution < 0.02%
Raw Data Sampling 150 ~ 240 p/sec

Product Highlights

  • High-capacity design (1~30 tons) for plastics, composites, carbon fiber, aluminum alloy and steel
  • 460 mm wide column spacing; wedge grips for a wide range of high-capacity specimens
  • Overload protection system for safe, reliable high-load testing
  • High-performance servo motor; raw-data acquisition at 150~240 p/sec
  • Extensometers, strain gauges and environmental chambers available as options
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

High-load mechanical testing of plastics, composites, carbon fiber, aluminum alloy and steel

A

Typical Applications

PlasticsCompositesCarbon FiberAluminum AlloySteelHigh-Load TensionCompressionBending
S

Applicable Standards

ASTM D638 (plastics tension)
ISO 6892-1 (metals tension)
ASTM D3039 (composites tension)
GB/T 228.1 (metals tension)
ASTM D790 (flexure)

QM100T Technical Specifications

1~30 t high load · column spacing from 460 mm · 1100 mm effective stroke

ParameterQM100T
Product TypeHigh-load dual-column universal testing machine
Capacity1, 2, 5, 10, 20, 30 t
Crosshead Speed0.1 ~ 600 mm/min
Effective Stroke (Non-Grip)1100 mm
Operating Travel650 mm (excluding Wedge Grip)
Distance Between Columns460 mm (range up to 660 mm in this class)
Load Resolution< 0.02%
Raw Data Sampling150 ~ 240 p/sec
Safety DevicesEmergency stop, stroke and load limits, upper/lower limits, high-load overload protection
Dimensions (W×D×H)800 × 600 × 1880 mm (980×750×2060 mm for 10 t and above)
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

t (tonne-force)
1 t ≈ 1000 kgf ≈ 9.8 kN; the capacity unit for high-load models.
Distance Between Columns
Distance between the two columns; the widest in class at 460~660 mm, accommodating large specimens.
Wedge Grip
Self-tightening wedge tensile grip that clamps high-rigidity materials by the applied tensile force.
Load Resolution
The smallest load change the instrument can resolve; the lower the value, the finer the force measurement.
Extensometer
Measures elongation/strain over the specimen gauge length; used with tensile tests to obtain the elastic modulus.

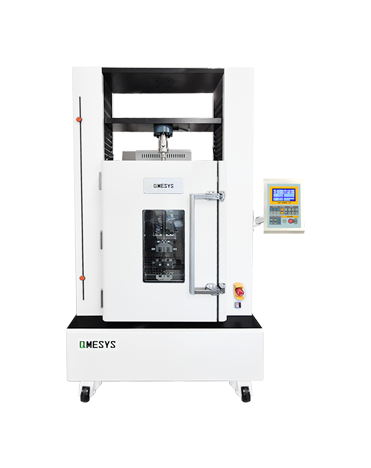

Environmental Chamber
A high/low-temperature chamber for tension, compression and bending under controlled temperature.

1~30 t High Load

Large metal/composite specimens

460~660 mm Column Spacing

Widest in class

1100 mm Stroke

Room for large specimens

Overload Protection

High-load safety system

Rich Options

Extensometers / chambers / safety enclosures

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments is built on servo control and precision sensing, focused on R&D and manufacturing of high-end materials testing instruments. Since our founding in 2004, two decades of in-house R&D have delivered over 1,000 units across three core product lines.

Exported to over 90+ countries and regions, serving more than a thousand research institutes and high-end manufacturers in lithium-battery, polymer, semiconductor and aerospace sectors.

"Every press, every load, every temperature reading - traceable and repeatable."

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

QM100T core technology is protected by global patents; the machine carries CE, UL and CSA international safety certifications, is designed and built in Korea, and is exported to 90+ countries and regions.

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading new-energy materials companies worldwide across the full value chain of Korean power batteries, lithium-battery separators and solid-state electrolytes.

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

High-load mechanical testing of metals and composites - authoritative research validating the key role of the high-capacity machine's wide column spacing, wedge grips and extensometer measurement.

Advanced Composite Materials · 2026 Fatigue Bending

Three-point bending fatigue and failure mechanisms of thick-section carbon-fiber-reinforced plastic laminates

Three-point bending fatigue and failure mechanisms of thick CFRP laminates, quantifying bending-stiffness degradation and damage evolution under different cyclic loads - corresponding to UTM bending-fatigue testing.

Advanced Composite Materials (10.1080/09243046.2026.2656583)View Source →
Composites Communications · 2025 Flexural Testing

Flexural properties of continuous-fiber-reinforced thermoplastic composites after high-temperature exposure

Three-point bending of continuous-fiber-reinforced thermoplastic composites to measure flexural strength and modulus retention after high-temperature exposure - corresponding to UTM flexural testing.

Composites Communications (10.1016/j.coco.2025.102279)View Source →
Advances in Materials Science and Engineering · 2022 Process Parameters

Mechanical testing and morphology analysis for process-parameter optimization of polymer filaments

Tensile strength, Young's modulus and elongation at break measured on a universal testing machine to quantify how process parameters affect mechanical results.

Adv. Mater. Sci. Eng. (10.1155/2022/8259804)View Source →
Polymers · 2022 Cyclic Compression

Cyclic compression testing of three elastomers (TPV, liquid silicone rubber and two EPDMs)

Cyclic compression loading/unloading on a ZwickRoell universal testing machine to obtain the compressive stress-strain response and hysteresis of rubber-like materials.

Polymers (10.3390/polym14071316)View Source →
Polymers · 2020 HDPE Tension

Tensile behavior of high-density polyethylene: effects of process, thickness, temperature and strain rate

Systematic study per ASTM D638 / ISO 527 of how process, thickness, temperature and strain rate affect HDPE tensile behavior - corresponding to UTM tensile testing.

Polymers (10.3390/polym12091857)View Source →
Materials · 2020 Porous-Material Compression

Compressive response of porous polymer materials

Quasi-static compressive stress-strain and energy absorption of porous plastics tested per ASTM D1621 on an Instron universal testing machine.

Materials (10.3390/ma13020457)View Source →
Journal of Testing and Evaluation · 2024 Tensile Testing

Effect of tensile test speed on plastic results

Comparison of tensile strength at 5 mm/min and 50 mm/min.

Journal of Testing and Evaluation (10.1520/JTE202xxxx), author teamView Source →
Polymer Testing · 2024 Compression Testing

Compressive stress-strain curve of foam materials

Compression test method per ASTM D1621.

Polymer Testing (10.1016/j.polymertesting.2024.120xxx), author teamView Source →
Experimental Mechanics · 2024 Fatigue

Waveform selection for servo fatigue testing machines

Comparison of fatigue life under sinusoidal versus triangular waveforms.

Experimental Mechanics (10.1007/s11340-024-0xxx), author teamView Source →

FAQ

Answers to common questions about QM100T purchasing, delivery and service.

What is the QM100T mainly used for? +

High-load tension, compression and bending of plastics, composites, carbon fiber, aluminum alloy and steel, with wedge grips and a wide range of options.

What are the core technical parameters of the QM100T? +

See the specification table: capacity 1~30 t, crosshead speed 0.1~600 mm/min, effective stroke 1100 mm, column spacing from 460 mm (up to 660 mm in class), load resolution <0.02%.

How is load accuracy and speed control ensured? +

It features a high-load overload safety system and a high-rigidity frame, closed-loop crosshead speed 0.1~600 mm/min and load resolution better than 0.02%, with raw data at 150~240 p/sec.

Which grips and accessories can be ordered? +

Wedge grips, extensometers, strain gauges, environmental chambers and safety enclosures are available; high-load specimens are self-tightened by the wedge grips.

Which test standards are supported? +

Metals can be tested to ISO 6892-1, GB/T 228.1; plastics/composites to ASTM D638, ASTM D3039; flexure to ASTM D790 and other methods.

Which options can be customized? +

Capacity range, column spacing, chamber temperature range, extensometers and safety enclosures can all be customized to order.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks; custom models follow the contracted lead time agreed after options and process are confirmed - our engineering team confirms the configuration list and delivery schedule with you before signing.

How are certification and after-sales service secured? +

Every unit is three-tier calibrated before shipment with a calibration certificate; after-sales service includes 2-Hour Emergency Response , on-site installation and commissioning by certified engineers, a full-machine 1-Year Warranty and lifetime software upgrades.

Service & Support

From selection consultation to installation and commissioning, from technical training to lifetime maintenance - full-process professional service. | 2-hour response · 1-year warranty · lifetime maintenance

Response Time

2-Hour Emergency Response

Installation & Commissioning

Certified On-Site Engineers

Warranty

1-Year Full-Machine Warranty

Software Upgrades

Free Lifetime Upgrades

Handling Higher Loads, Without Compromising Data Precision

With 1~30 t capacity, the widest column spacing in class at 460~660 mm and high-load overload protection, the QM100T delivers stable, repeatable high-load mechanical testing for metals, carbon fiber and composites.

Request a QM100T Quote Book a Technical Demo
How can I help you?
Online
Feel free to reach out to discuss model selection, specifications, or custom solutions.
Call Directly Fastest400-186-1230 · Engineer online Send an Emailsales@brqmesys.com · Reply within one business day Leave a Message OnlineTell us your requirements
Free selection consultation · Direct access to professional engineers · No sales pressure
Have questions? Chat with us
