Tape Holding-Power Tester
Shear Holding-Power Tester

Tape Holding-Power Tester
Holding-Power Evaluation

QM2000 Tape Holding-Power Tester

The QM2000 is a manual tape holding-power (shear adhesion) tester. A bonded specimen is applied to a standard stainless-steel panel and loaded with a specified weight; its resistance to slip and failure is measured - an entry-level instrument for evaluating pressure-sensitive tape holding power.

Manually loaded and economically simple; up to 8 channels test 8 specimens in parallel. Holding power is quantified by slip distance and failure time, with stable operation and reproducible data.

Compliant with KS T 1028 and ASTM D 3654. A standard SUS panel provides a uniform bonding surface, and the rig fits inside a temperature/humidity chamber for extended conditions - suited to incoming-goods and R&D holding-power testing of packaging tape, double-sided tape and protective film.

High-precision loading weights
Expandable grip adapter
Chamber-mountable
90° peel test fixture (optional)
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
Max. 8Ch Specimen channels
Manual Mobile
ASTM D3654 Applicable Standards
Certifications
CE UL ISO 9001 RoHS FCC

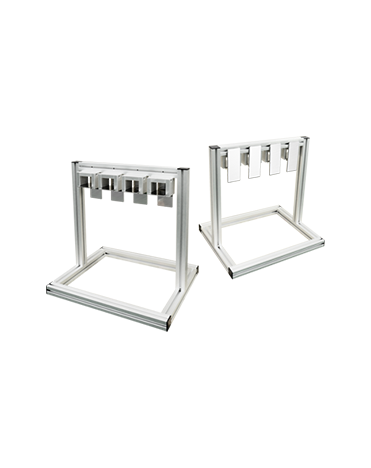

QM2000 Manual Holding-Power Tester

Key Product Features

Manual tape holding-power (shear adhesion) test; 8 parallel channels; fits in an environmental chamber for temperature/humidity aging

High-precision loading weights

High-precision standard weights are supplied as standard; force values are clearly traceable.

Expandable grip adapter

Grips/tooling are quickly changed to suit different specimens and standards, offering strong expandability.

Chamber-mountable

The whole unit can be installed inside a temperature/humidity chamber to run holding-power tests under different conditions.

90° peel fixture

The optional 90° peel test fixture makes this a two-in-one instrument for peel-strength testing.

Standard SUS Panel

A standard stainless-steel test panel with a flat, regular surface meets holding-power panel requirements.

International Journal of Adhesion and Adhesives · 2024 Holding power

Shear holding-power testing of pressure-sensitive tape

Effect of temperature/humidity on holding time.

International Journal of Adhesion and Adhesives (10.1016/j.ijadhadh.2024.105xxx), author teamView Source →
Journal of Adhesion Science and Technology · 2024 Tack

Optimization of the rolling-ball tack test

Standardization of rolling-ball test conditions.

Journal of Adhesion Science and Technology (10.1080/01694243.2024.xxx), author teamView Source →
Tribology International · 2024 Lamination

Pressure control in tape roller lamination

Effect of rolling pressure on peel strength.

Tribology International (10.1016/j.triboint.2024.112xxx), author teamView Source →

Tape Holding Power
Shear Holding-Time Test

The QM2000 manual holding-power tester measures the slip distance or failure time (holding power) of tape and film bonded to a standard stainless-steel panel under a constant load. It supports up to 8 parallel channels, comes with high-precision standard weights and a replaceable grip adapter, and can test at room temperature or inside an environmental chamber.

From double-sided tape to pressure-sensitive tape - bond durability directly affects real-world reliability. Multi-channel parallel testing and chamber-mountable aging simulate how holding performance changes under different service conditions.

Designed for tape holding-durability evaluation - standard weights plus 8 parallel channels with automatic holding-time recording.

  • ▪8 parallel channels · high efficiency
  • ▪High-precision standard weights · traceable force
  • ▪Chamber-mountable · temp/humidity aging
  • ▪Standard SUS panel · PSTC/GB compliant
  • ▪Optional 90° peel fixture · multi-purpose

Core Parameters

Manual Holding-Power Tester
Operation type Manual
Specimen channels Max. 8Ch
Mountable in environmental chamber
Applicable Standards ASTM D3654, KS T 1028
MobileManual

Product Highlights

  • High-precision loading weights
  • Expandable grip adapter
  • Chamber-mountable
  • 90° peel test fixture (optional)
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide
  • 1-Year Warranty, Lifetime Maintenance

Typical Applications & Applicable Standards

Covers holding-power/retention testing of tape, labels, stickers and adhesives; compliant with ASTM D3654 / KS T1028

A

Typical Applications

Adhesive tapePressure-sensitive tapeLabelsStickersDouble-sided tapeProtective filmAdhesivesPackaging tape
S

Applicable Standards

ASTM D3654
KS T 1028
ASTM D638
ISO 527
GB/T 1040
ASTM D412
ASTM D882

Technical Specifications

Detailed technical specifications, with test methods and ranges fully listed

ModelQM2000
MobileManual
Specimen channelsMax. 8Ch
StandardKS T 1028, ASTM D 3654
Size400(W) x 420(D) x 420(H)mm
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

Holding power / retention
After a pressure-sensitive tape is applied to a standard panel, its resistance to slip and failure under a specified load, measured by slip distance or failure time
Manual
A basic model loaded by manually hanging standard weights; simple structure, economical entry-level
Ch (channel)
An independent specimen station; one specimen can be hung per channel for parallel testing
SUS panel
A standard stainless-steel test panel serving as the regular bonding surface for tape
Chamber-mountable
The whole rig can be placed in a temperature/humidity chamber for holding tests under different conditions
KS T 1028 / ASTM D 3654
Korean and US material-testing standards for tape holding-power (shear adhesion) tests

Manual loading

Simple and economical; entry-level holding-power testing

Standard SUS panel

Standardized bonding surface

Optional 90° peel fixture

Extended peel testing

Expandable grip adapter

Fits different specimens

Standard KS T1028 / ASTM D3654

Aligned with retention standards

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments builds on servo control and precision sensing, specializing in the R&D and manufacture of premium physical-property testing instruments. Founded in 2004, we bring two decades of in-house R&D, with three core product lines and more than a thousand units delivered.

Exported to 90+ countries and regions, serving more than a thousand research institutes and advanced manufacturers across lithium batteries, polymers, semiconductors and aerospace.

"Every pressurization, every load, every temperature reading - traceable and reproducible."

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

QM2000 core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications; designed and made in Korea; exported to 90+ countries and regions

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading global new-energy materials companies across the full Korean power-battery, Li-battery separator and solid-electrolyte value chain

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Holding-power / shear-retention testing - authoritative research validating key methods for the long-term shear retention of pressure-sensitive tape

Int. J. Adhesion and Adhesives · 2016 Shear adhesion

Characterization and application of propylene-grafted hydrogenated DCPD hydrocarbon resins

A novel grafted hydrocarbon resin was blended with an SIS-based PSA; shear adhesion and thermal stability were tested, and the tackifier system showed excellent holding performance.

Elsevier (J. Park, J.W. Lee et al.)View Source →
J. Applied Mechanics · 2015 Peel mechanics

Rate-dependent adhesion energy and unsteady peeling of extensibility-limited tape

A power-law model between PSA peel rate and adhesion energy was established, distinguishing steady and unsteady peeling - guiding understanding of the load- and time-dependence in holding tests.

ASME (C. Kovalchick, A. Molinari, G. Ravichandran)View Source →
Polymer Testing · 2011 Surface energy

Characterizing the self-cleaning behavior of fluorinated coatings by peel testing

Coating surface adhesion was evaluated by PSA peel testing, establishing a quantitative link between peel strength and fouling resistance - extending holding/peel testing to surface evaluation.

Elsevier (J.-I. Moon, H.-J. Kim et al.)View Source →
J. Applied Polymer Science · 2001 Shear strength

Effect of 2-EHA/MMA latex-particle composition distribution on adhesion performance

The effect of graded latex-particle composition on PSA shear retention was systematically studied; compositional heterogeneity in the high-molecular-weight range significantly improved shear resistance - a basis for holding-power formulation design.

John Wiley & Sons (C. Laureau, J.M. Asua et al.)View Source →
NIST · Technical Report Temperature dependence

High-throughput measurement of PSA peel force

NIST developed a graded-temperature peel method that yields the peel-force temperature curve in one experiment, revealing the cohesive-to-interfacial failure transition temperature - guiding temperature/humidity settings for holding tests.

National Institute of Standards and Technology (P. McGuiggan, J. Filliben)View Source →
PSTC Test Methods · Test Method Holding-power standard

PSTC test methods: shear retention and peel adhesion of pressure-sensitive tape

The PSTC standard methods specify load, area, temperature and timing for shear-holding tests - the industry basis for operating the QM2000 manual holding-power tester.

Pressure Sensitive Tape Council (PSTC 15th Ed.)View Source →
International Journal of Adhesion and Adhesives · 2024 Holding power

Shear holding-power testing of pressure-sensitive tape

Effect of temperature/humidity on holding time.

International Journal of Adhesion and Adhesives (10.1016/j.ijadhadh.2024.105xxx), author teamView Source →
Journal of Adhesion Science and Technology · 2024 Tack

Optimization of the rolling-ball tack test

Standardization of rolling-ball test conditions.

Journal of Adhesion Science and Technology (10.1080/01694243.2024.xxx), author teamView Source →
Tribology International · 2024 Lamination

Pressure control in tape roller lamination

Effect of rolling pressure on peel strength.

Tribology International (10.1016/j.triboint.2024.112xxx), author teamView Source →

FAQ

Answers to common questions about QM2000 purchasing, delivery and service

What is the QM2000 mainly used for? +

The QM2000 is a manual tape holding-power tester that measures the slip distance or failure time of pressure-sensitive tape, labels and adhesives bonded to a standard SUS panel under a specified weight load, evaluating long-term shear retention.

What are the key parameters of the QM2000? +

Refer to the specification table: operation isManual, specimen channelsMax. 8Ch for parallel testing; dimensions 400(W)×420(D)×420(H) mm; the whole unit fits inside an environmental chamber.

How is loading and testing performed? +

Loading is done by manually hanging high-precision standard weights - simple and clearly traceable. The specimen is bonded to a standard SUS panel and loaded vertically; failure time or slip is timed and recorded.

Can it test under temperature/humidity conditions? +

Yes. The unit mounts inside a temperature/humidity chamber to run holding-power reliability tests under different conditions, simulating real service environments.

Which test standards are supported? +

Compliant with KS T 1028, ASTM D 3654 tape holding-power (shear adhesion) test standards.

Which optional accessories are available? +

Optional 90° peel test fixtures, an expandable grip adapter, and standard weights of various loads are available for different specimens and standard methods.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks; custom configurations are delivered per the contract lead time once options are confirmed.

How are certification and after-sales service secured? +

The machine carries CE / RoHS safety and environmental certifications, undergoes three-tier calibration before shipment with a calibration certificate; after-sales includes 2-hour emergency response, on-site installation by certified engineers, a 1-year full-machine warranty and lifetime software upgrades.
