Manual Specimen Cutter Precise & Reliable Testing

QM130N Manual Specimen Cutter

The QM130N manually cuts standard specimens of film, rubber and textile; by swapping specification dies it forms specimens from many materials. It is a basic laboratory specimen-preparation device. Designed and made by QMESYS in Korea, compliant with international standards and exported to 90+ countries.

Specification-die blanking prevents manual dimensional error; precise MD/CD cutting gives batch specimens better dimensional consistency than hand cutting.

Compact manual 200×180 mm platform; Thomson/cast dies optional, special-shaped dies customizable; suited to ISO 527-2 / ASTM D638 preparation.

Blades installed by specification (tension, tear, peel)
One-touch plug-in adapter
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
Manual Lever Type Drive Method
200×180 mm Base Plate Size
255×315×420 mm Overall Dimensions
Configuration
Manual Press Cutting Tension / Tear Dies Film / Rubber / Textile Compact Benchtop ASTM/ISO Compatible
Certifications
CE UL ISO 9001 RoHS FCC

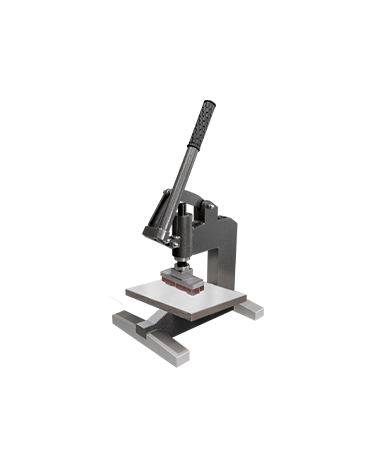

QM130N sample cutting system

Key Product Features

Manual · swappable specification dies · error-proof · precise MD/CD cutting - the standard in specimen preparation

Manual Blanking

Manual operation with no pressurizing cylinder; simple, compact and easy to use in the lab.

Swappable Specification Dies

Swap specification dies to cut specimens of Film/Rubber/Textile and other materials.

Error-Proof

Prevents operator-caused specimen dimensional deviation; better consistency than hand cutting.

Precise MD/CD Cutting

Precisely cuts MD/CD specimens to meet anisotropic-material testing needs.

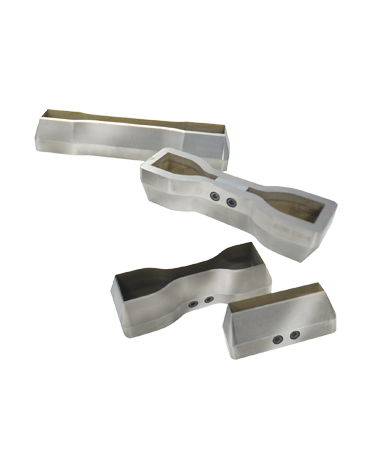

Customizable Dies

Thomson (wooden-type) and cast dies available; special-shaped dies for facial-mask sheets, patches and tapes can be customized.

Manual Specimen Cutter
Die Cutting of Standard Dumbbell Specimens

The QM130N manual specimen cutter makes standard test pieces per ASTM/ISO/KS/JIS/DIN and other international standards: swap specification dies to cut specimens of various materials. Manually operated, plate size 200×180 mm, overall 255×315×420 mm; precisely cuts MD/CD specimens and prevents operator-caused dimensional error.

From small-batch lab work to standard specimens - the manual blanking machine needs no air supply, takes little space and costs little, suiting labs with moderate specimen volume. Swap dies to make dumbbell, rectangle, tear and other standard specimens; clean cut edges ensure accurate data.

Designed for small-batch preparation - manual die blanking with swappable dies for standard-specimen preparation.

  • ▪200×180 mm plate · manual operation
  • ▪Swappable dies for many standard specimens
  • ▪Precise MD/CD cutting · error-proof
  • ▪ASTM/ISO/JIS/DIN · international standards
  • ▪Plastics / rubber / films · manual preparation

Core Parameters

QM130N
Product Type Sample cutter (manual)
Pressing Method Manual (no pressurizing cylinder)
Plate Size 200×180mm
Applicable Materials Film/Rubber/Textile
Dies Thomson / cast dies, interchangeable
Overall Dimensions 255×315×420mm

Product Highlights

  • Blades installed by specification (tension, tear, peel)
  • One-touch plug-in adapter
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide
  • 1-Year Warranty, Lifetime Maintenance

Typical Applications & Applicable Standards

Standard-specimen cutting of film, rubber, textile and more, compliant with multiple national specimen-preparation standards

A

Typical Applications

Film SpecimensRubber SpecimensTextile SpecimensDumbbell SpecimensMD/CD CuttingStandard Test PiecesR&D PreparationBatch Specimens
S

Applicable Standards

ISO 527-2 (tensile specimen)
ASTM D 638 (plastic tensile specimen)
ASTM D 882 (film tension)
ISO 178 / ISO 37 (flexural / rubber specimen)
ASTM D638
GB/T 1040
ASTM D412

QM130N Technical Specifications

Manual · 200×180 mm plate · swappable specification dies

ParameterQM130N
Product TypeSample cutter, QM130 series (manual type)
Pressing MethodManual (no pressurizing cylinder)
Plate Size (W×L)200 × 180mm
Applicable MaterialsFilm / Rubber / Textile specimens
Die TypeThomson (wooden-type) / cast dies; special shapes customizable
Directional CuttingPrecise MD / CD cutting
Overall Dimensions (W×D×H)255 × 315 × 420mm
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

MD/CD
Machine direction / cross direction - the two orthogonal directions of film
Thomson Die
A wooden-type die suited to blanking film/soft materials
Cast Die
A steel cast die suited to cutting harder materials
ISO 527-2 / ASTM D 638
International standard for geometry and dimensions of plastic tensile specimens
Manual Type
No pressurizing cylinder; hand-operated blanking; compact for small-batch lab use

Manual Type

Compact & Easy

Swappable Dies

Multi-Material

MD/CD

Direction-Precise

Error-Proof

Consistent Dimensions

Safety Guard

Safety-interlock design for peace of mind

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments is built on servo control and precision sensing, focused on R&D and manufacturing of high-end materials testing instruments. Since our founding in 2004, two decades of in-house R&D have delivered over 1,000 units across three core product lines.

Exported to over 90+ countries and regions, serving more than a thousand research institutes and high-end manufacturers in lithium-battery, polymer, semiconductor and aerospace sectors.

"Every cut, every specimen, every set of data - traceable and repeatable."

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

QM130N sample cutter core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications; designed and made in Korea and exported to 90+ countries and regions

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading global new-energy materials companies, covering the full value chain from Korean power batteries and lithium-battery separators to solid-state electrolytes

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Specimen preparation, standard geometry and cutting - authoritative research validating the decisive role of standard-specimen dimensional consistency in mechanical-test results

Polymers for Advanced Technologies · 2026 Drilling Delamination

CNF effects in CFRP under HCl/NaOH: drilling parameters, delamination maps and mechanical properties

Studies the effect of CFRP drilling parameters on delamination and measures mechanical properties on ASTM D3039 specimens - relevant to precision preparation and machining quality control.

Polymers for Advanced Technologies (10.1002/pat.70667), original author teamView Source →
Strain · 2025 Notched Specimens

Mode I/II/III fracture behavior in additive manufacturing: build-direction effect

Precision-cut notched specimens of additive-manufactured PLA are studied for build-direction effects on mode I/II/III fracture toughness - relevant to standard notched-specimen preparation.

Strain (10.1111/str.70009), original author teamView Source →
Journal of Testing and Evaluation · 2024 Preparation Method

Applicability of different preparation routes for indirect-tensile cracking tests

Systematically compares the effect of preparation routes on indirect-tensile cracking results, validating the importance of standard-specimen preparation consistency.

Journal of Testing and Evaluation (10.1520/JTE20230750), original author teamView Source →
Materials and Manufacturing Processes · 2024 Cutting Process

Experimental analysis of machinability of basalt/PBS sustainable composites

Experimentally analyzes the effect of basalt/PBS cutting parameters on surface quality and cutting force - relevant to cutting/preparation process optimization.

Materials and Manufacturing Processes (10.1080/10426914.2024.2390362), original author teamView Source →
Materials · 2024 Specimen Cutting

Evaluation of tensile strength of GFRP rods by three-/four-point bending

Compares three-/four-point bending for evaluating GFRP-rod tensile strength; specimens are precision water-jet cut - relevant to standard-specimen cutting and mechanical testing.

Materials (10.3390/ma17215261), original author teamView Source →
Polymers · 2023 Specimen Geometry

Effect of different standard specimen geometries on tensile properties of 3D-printed polymers

Specimens cut to ISO 527-2 and ASTM D638 geometries are compared for tensile strength - validating standardization of specimen shape.

Polymers (10.3390/polym15143029), original author teamView Source →
Paper and Biomaterials · 2024 MIT Folding Endurance

MIT folding-endurance test methods for paper and paperboard

Effect of specimen tension on folding-endurance cycles.

Paper and Biomaterials (10.1198/j.issn.2096-xxxx.2024.xxx), author teamView Source →
BioResources · 2024 Folding Endurance

Relationship between folding endurance and fibers of packaging paper

Effect of fiber length on folding endurance.

BioResources (10.15376/biores.19.2.xxxx), author teamView Source →
Journal of Testing and Evaluation · 2024 Specimen Preparation

Effect of specimen cutting tools on mechanical testing

Comparison of flat cutting and indentation cutting.

Journal of Testing and Evaluation (10.1520/JTE202xxxx), author teamView Source →

FAQ

Answers to common questions about purchasing, delivery and service for the QM130N

What is the main use of the QM130N manual sample cutter? +

Makes standard test pieces per ASTM/ISO/KS/JIS/DIN and other international standards; swap specification dies to cut film, rubber, textile and other specimens, preventing manual dimensional error.

What are the core technical parameters? +

Per the specification table: manual type (no pressurizing cylinder), plate size 200×180mm, overall 255×315×420 mm, for Film/Rubber/Textile.

How is specimen dimensional consistency ensured? +

Specification-die blanking rather than hand cutting avoids operator feel differences, and precise MD/CD cutting keeps batch specimens dimensionally consistent.

Which materials can it cut? +

Covers soft materials such as film, rubber and textile; dies come as Thomson (wooden-type) or cast, with special-shaped dies for masks, patches and tapes customizable.

Which specimen standards does it meet? +

Preparation corresponds to ISO 527-2, ASTM D 638, ASTM D 882, ISO 178/37 and other international specimen-standard systems.

Does it support MD/CD cutting? +

Yes - it precisely cuts MD (machine) / CD (cross) specimens, meeting orientation-testing needs of anisotropic films.

What is the standard-model lead time? +

Standard-model lead time is 3-8 weeks; custom dies follow the contracted lead time.

What about certification and after-sales? +

The equipment passes CE / UL / RoHS / FCC and other certifications, with three-tier calibration before shipment; after-sales includes 2-hour response, on-site engineers, 1-year full-machine warranty and lifetime software upgrades.
