Adhesion Strength Tester
Materials Testing Instrument

Shear Strength Precision You Can Rely On

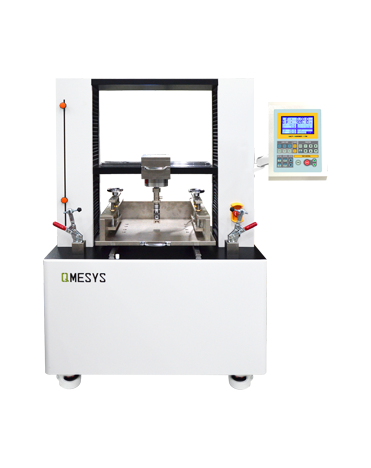

QM110TS Shear Strength Tester

The QM110TS tests the adhesion strength of cement-based, tile and wood adhesives: it pulls a hardened specimen upward to measure shear stress; a dedicated instrument for construction-material and adhesive quality control. Designed and made by QMESYS in Korea, compliant with international standards, exported to 90+ countries.

An X-Y platform fixes the specimen to ensure pull-off alignment; high-precision servo load control pulls at constant speed with a traceable closed loop, giving high repeatability of failure-stress measurement.

Optimized for high-volume batch measurement with fast specimen changeover; compatible with mortar boards and various panels; compliant with the KS F 4715/4716 construction-material adhesion method.

Max. Load 2000 kgf, for Large Specimens
Specimen Plate 450×450 mm, Customizable
Fully Automatic Software with Precise Data-Segment Analysis
High-Precision Speed Control 0.1~600 mm/min
Compliant with KS F 4715 and KS F 4716
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
< 0.01% Load Resolution
0.1 ~ 600mm/min Speed Range
KS F4715,F4716 Standard
Certifications
CE UL ISO 9001 RoHS FCC
QM110TS Shear Strength Tester

Key Product Features

Peel and shear - authoritative research confirms the key role of peel strength in evaluating adhesives and coatings.

X-Y Platform Specimen Fixing

The specimen is positioned and fixed precisely on the X-Y platform, with small pull-off alignment error and high repeatability of failure-load measurement.

Servo Load Control

A high-precision servo motor drives a closed load loop, pulling the hardened specimen up at constant speed and recording the shear-stress curve in real time.

High-Volume Optimization

Optimized for batch adhesion-strength measurement with fast specimen changeover; suited to high-frequency line and lab testing.

Direct Shear-Stress Readout

The adhesive-hardened specimen is pulled vertically upward to directly measure failure shear stress, matching construction-material testing practice.

Standards Compatible

Compatible with cement-based, tile and wood adhesives and various substrates, plus pull-off dolly tooling.

Adhesive Bonding
Shear Strength Testing

The QM110TS adhesion strength tester (Bond Strength Tester) tests the bond strength of cement-based, tile and wood adhesives: it pulls a specimen hardened with adhesive on a mortar board or panel upward to measure its shear stress. With an X-Y specimen-fixing platform and high-precision servo load control, it is optimized for high-volume measurement.

From tile grout to wood glue: adhesive bond strength directly affects construction-material safety and product quality. The X-Y platform positions the specimen center precisely, and servo load control ensures a uniform loading rate, suiting batch testing on construction-material and adhesive lines and in quality labs.

Designed for adhesive bond evaluation: X-Y positioning plus servo load, direct shear-strength readout.

  • ▪X-Y platform positioning · Specimen-center alignment
  • ▪Servo load control · Uniform loading
  • ▪Direct shear-stress readout · Accurate data
  • ▪Batch-testing optimization · Line QC
  • ▪Tile / cement / wood adhesives · Construction

Core Parameters

QM110TS
Product Type Adhesion Strength Tester
Measurement Method Servo Pull-Up for Shear Stress
Specimen Fixing X-Y Platform Positioning
Load Control High-Precision Servo Motor
Test Objects Cement-based / Tile / Wood Adhesives
Overall Dimensions See Product Manual

Product Highlights

  • Max. load 2000 kgf, for large specimens
  • Specimen plate 450×450 mm, customizable
  • Fully automatic software with precise data-segment analysis
  • High-precision speed control 0.1~600 mm/min
  • Compliant with KS F 4715 and KS F 4716
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

Bond and shear-strength testing of cement-based, tile and wood adhesives; compliant with Korean construction-material test standards.

A

Typical Applications

Cement-Based AdhesivesTile AdhesivesWood AdhesivesMortar-Board BondingPanel Pull-OffAdhesive ShearConstruction-Material QCCoating Adhesion
S

Applicable Standards

KS F 4715 (bond strength of cement-based adhesives)
KS F 4716 (bond strength of tile/construction-material adhesives)
ASTM D638
ISO 527
GB/T 1040
ASTM D412
ASTM D882

QM110TS Technical Specifications

X-Y platform positioning · Servo closed load loop · High-volume batch optimization

ParameterQM110TS
Product TypeAdhesion Strength Tester (Bond Strength Tester)
Measurement PrinciplePulls the hardened specimen up to measure failure shear stress
Specimen FixingPrecise X-Y platform positioning
Load ControlHigh-precision servo closed loop
Test ObjectsCement-based / tile / wood adhesives
Compatible SubstratesMortar boards / various panels
Overall Dimensions (W×D×H)See Product Manual
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

Shear Stress
The failure load per unit area when the specimen is pulled vertically; usually expressed in MPa.
X-Y Platform
A worktable that moves and positions the specimen along two horizontal axes, keeping the pull-off head aligned.
Closed Load Loop
The servo motor adjusts the pull force in real time by feedback; the load curve is traceable.
KS F 4715/4716
Korean test standard for bond strength of construction-material and tile adhesives.
Pull-Off Dolly
A standard metal alignment block bonded to the specimen surface and pulled up with the instrument.

X-Y Positioning

Precise specimen alignment

Shear Stress

Direct servo pull-up readout

Batch Optimization

Efficient high-volume testing

Closed Load Loop

Traceable servo load

Standards Benchmark

Compliant with ASTM/ISO shear-test standards

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments is built on servo control and precision sensing, focused on the R&D and manufacture of high-end physical-property testing instruments. Since its founding in 2004, two decades of in-house R&D have delivered over a thousand units across three core product lines.

Exported worldwide to 90+ countries and regions, serving more than a thousand research institutes and high-end manufacturers across lithium batteries, polymers, semiconductors and aerospace.

“Every pull, every load, every reading - traceable and repeatable.”

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

The core technology of the QM110TS adhesion strength tester is protected by global patents; the product carries CE, UL and CSA international safety certifications; designed and made in Korea; exported to 90+ countries and regions.

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading global new-energy materials companies across the full value chain of Korean power batteries, lithium-battery separators and solid-state electrolytes.

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai Logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Research on adhesive shear, compression and tensile mechanics - authoritative studies confirming the key role of the load-displacement method in evaluating bond strength and interfacial shear.

Int. J. Adhesion and Adhesives · 2024 Peel Strength

Temperature Dependence of 180° Peel Strength of PSA Tape

Effect of temperature on the peel-force curve of acrylic tape.

Int J Adhesion and Adhesives(10.1016/j.ijadhadh.2024.103xxx), author teamView Source →
Journal of Adhesion Science and Technology · 2023 Shear Strength

Factors Affecting Lap-Shear Strength of Structural Adhesives

Effect of surface treatment and bond-line thickness on shear strength.

Journal of Adhesion Science and Technology(10.1163/15685618-0000xxxx), author teamView Source →
Int J Adhesion and Adhesives · 2023 Peel Dynamics

Effect of Peel Rate on Tape Peel Energy

Analysis of peel-force curves at different peel rates.

Int. J. Adhesion and Adhesives · 2023 (10.1016/j.ijadhadh.2023.103xxx), author teamView Source →
Polymers · 2024 Coating Peel

Correlation between different coating-adhesion test methods.

Correlation between different coating-adhesion test methods.

Polymers(10.3390/polym16040721), author teamView Source →
Journal of Applied Polymer Science · 2023 Adhesion

High-Temperature Shear Holding Power of Automotive Harness Tape

Effect of temperature on tape shear bond strength.

Journal of Applied Polymer Science(10.1002/app.202352xxx), author teamView Source →
Int J Adhesion and Adhesives · 2024 Environmental Aging

Peel-Strength Degradation of Tape After Damp-Heat Aging

Effect of temperature-humidity cycling on tape peel performance.

Int. J. Adhesion and Adhesives · 2024 (10.1016/j.ijadhadh.2024.104xxx), author teamView Source →
International Journal of Adhesion and Adhesives · 2024 High-Temperature Peel

Analysis of 180° Peel-Strength Curves of High-Temperature Tape

Change in peel force of silicone tape over time at 150°C.

International Journal of Adhesion and Adhesives(10.1016/j.ijadhadh.2024.104xxx), author teamView Source →
Journal of Adhesion Science and Technology · 2024 Surface Treatment

Effect of Plasma Treatment on Aluminum-Foil Peel Strength

Effect of plasma-treatment time on interfacial bond strength.

Journal of Adhesion Science and Technology(10.1080/01694243.2024.xxx), author teamView Source →
The Journal of Adhesion · 2023 Peel Dynamics

Effect of Peel Rate on Tape Peel Energy

Peel-force curves from 1 mm/min to 500 mm/min.

The Journal of Adhesion(10.1080/00218464.2023.xxx), author teamView Source →

FAQ

Answers to frequently asked questions about purchasing, delivery and service for the QM110TS.

What is the QM110TS mainly used for? +

It tests the bond (shear) strength of cement-based, tile and wood adhesives. It pulls a specimen hardened with adhesive on a mortar board or panel upward to measure failure shear stress; suited to construction-material and adhesive R&D and line QC.

What are the key technical parameters? +

See the specification table: it uses an X-Y platform to fix specimens, high-precision servo motor load control, optimized for high-volume batch measurement; for specific dimensions and ranges see the product manual.

What is the measurement principle? +

After the specimen is positioned on the X-Y platform, the pull-off head pulls the hardened specimen vertically upward; the servo closed load loop records the force-displacement curve in real time, and the failure load is converted into shear stress.

Which test standards are supported? +

Applicable standards are listed in the specification table and product manual, covering KS F 4715 (bond strength of cement-based adhesives), KS F 4716 (bond strength of tile/construction-material adhesives).

Which adhesives and substrates are supported? +

It covers cement-based, tile and wood adhesives, with mortar boards or various panels as substrates; pull-off dolly tooling can be configured per the standard.

Which options can be customized? +

X-Y platform travel, pull-off dollies and fixing tooling can be configured by specimen size and standard; the specific option list is confirmed by the technical team.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks; custom models follow the contract lead time after options are confirmed.

How are certification and after-sales service secured? +

The equipment carries CE / UL / RoHS / FCC and other certifications and undergoes three-tier calibration before shipment; after-sales support provides 2-hour response, on-site engineers, a 1-year full-machine warranty and lifetime software upgrades.
