Motorized Vertical Test Stand
Auto-Raising Stand for Push-Pull Gauges

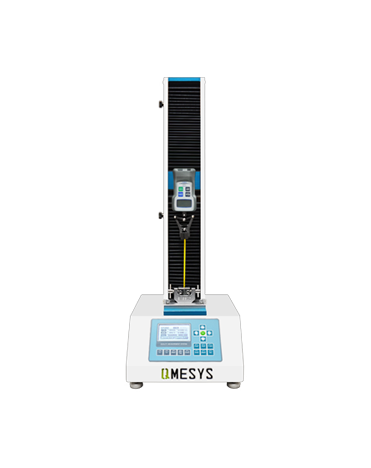

The QM100P motorized vertical test stand, with a push-pull gauge, performs tension, compression, flexure, repetition and durability tests. Travel 450 mm, speed 5~750 mm/min, single and bi-directional, driven by a high-power BLDC motor with manual/auto speed control, in a compact body (280×370×790 mm).
From small tape to film specimens - manual push-pull gauge operation is laborious and inconsistent in speed; the motorized stand provides a stable, controllable loading speed, and with different gauges completes tension, peel and compression tests. Its compact body suits benchtop labs - an economical solution for small-scale mechanical testing.
Designed for small-scale mechanical testing - motorized lifting plus a push-pull gauge for tension/compression/peel tests.
- ▪450 mm travel · 5~750 mm/min speed
- ▪BLDC motor drive · low-noise and smooth
- ▪Manual/auto, bi-directional · flexible operation
- ▪280×370×790 mm compact body · benchtop
- ▪Tape/film/rubber · small-specimen testing
Stroke Range
Max. 450 mm (excluding grips)
Speed Range
5 ~ 750mm/min
Direction
Single & bi-directional
Standard
KS T 1028,T 1056
Push-Pull Gauge (optional)1~100 kgf, auto unit conversion (N / kgf / lbf)
Product Highlights
- Manual/auto speed control, easy to operate
- BLDC motor drive; constant speed under heavy load
- With small grips and test fixtures
- Tension, compression, flexure, repetition and durability
- Push-pull gauge optional (1~100 kgf)
- Designed & Made in Korea
- Exported to 90+ Countries Worldwide
