Fatigue Tester
Fatigue Tester

Servo Fatigue Precise, Reliable Testing

QM100FS Servo Fatigue Tester

The QM100FS is a servo-controlled fatigue tester built on the QM100 universal testing platform, designed for tensile, compression, flexural and holding-force testing. Digital servo drive with closed-loop load-cell acquisition ensures test repeatability. It suits R&D and production quality control of polymers and composites.

High-precision servo motor and digital servo controller
Capacity 1~5 t, max. speed 2 Hz (20 mm amplitude)
Effective travel 0.1~1100 mm (excluding grips)
Supports displacement, load, cyclic and other complex test programs
Load resolution <0.02%; custom grips available
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
1 ~ 5t Capacity
Max. 2Hz Max. Speed (20 mm amplitude)
0.1~1100mm Effective Stroke (Non-Grip)
Certifications
CE UL ISO 9001 RoHS FCC

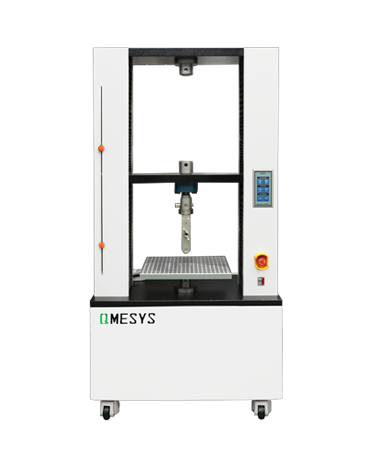

QM100FS fatigue tester

Key Product Features

A servo-controlled fatigue tester with 1~5 t capacity and up to 2 Hz cycling to evaluate the endurance limit of materials and components

High-Precision Servo Control

Equipped with a high-precision servo motor and digital servo control system for high-precision cyclic control of load and displacement.

1~5 t High Capacity

Capacity covers 1~5 t with high load resolution, meeting medium-to-high load fatigue testing needs.

Wide effective travel

Effective travel covers a wide range, suiting fatigue testing of specimens and components of different sizes.

Multi-Program Testing

Supports displacement control, load control, cyclic testing and other complex programs, as well as functional-failure and durability testing.

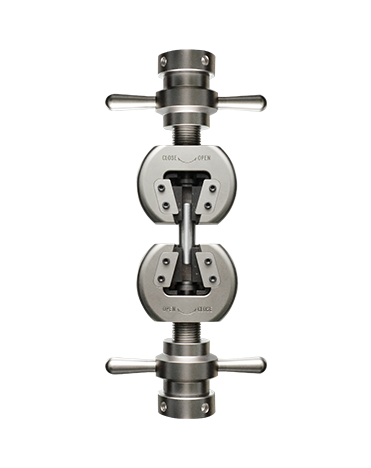

Custom Grips

Dedicated grips can be designed and built to order for specimens and components of different shapes; cycles and test methods are freely configurable.

Servo-controlled Fatigue Life
Material Durability Testing Platform

The QM100FS servo-controlled fatigue tester has 1~5 t capacity, max. test frequency 2 Hz (20 mm amplitude), 0.1~1100 mm effective travel and load resolution better than 0.02% F.S. Its digital servo controller enables complex control of displacement, load and cycles, with freely configurable periods and timing, supporting functional-failure and durability testing.

From metal fatigue to polymer creep, from component durability to new-material life prediction - a material's failure behavior under repeated loading is the core basis of product reliability design. The QM100FS lets you freely customize grips and test methods by specimen and product, with fully recorded, traceable data.

Designed for material endurance-limit evaluation - 2 Hz servo cyclic loading with multi-program control and traceable fatigue-life data.

  • ▪1~5 t capacity · 2 Hz max. frequency
  • ▪0.1~1100 mm travel · large-deformation testing
  • ▪Displacement/load/cyclic · multi-program control
  • ▪0.02% F.S. resolution · high precision
  • ▪Custom grips · for materials/components

Core Parameters

High-Frequency Fatigue Tester
Capacity 1 ~ 5 t (optional)
Max. Speed Max. 2 Hz (20 mm amplitude)
Effective Stroke (Non-Grip) 0.1 ~ 1100 mm
Load Resolution < 0.02%
Motion ControllerDigital Servo Control System

Product Highlights

  • High-precision servo motor and digital servo controller
  • Capacity 1~5 t, max. speed 2 Hz (20 mm amplitude)
  • Effective travel 0.1~1100 mm (excluding grips)
  • Supports displacement, load, cyclic and other complex test programs
  • Load resolution
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

Suitable for fatigue-life, durability and S-N curve testing of materials and components under cyclic loading

A

Typical Applications

Compression Static LoadSeat DurabilityHot-wire FatigueTransmission-Component FatigueEnclosure Compression DurabilityConstant-Load TensionCyclic LoadingFunctional-Failure Testing
S

Applicable Standards

ASTM E466
ASTM D7791
ISO 1099
ISO 13003
GB/T 3075
GB/T 16746
JIS Z 2273

Technical Specifications

Detailed technical specifications, with capacity and accuracy fully stated

ModelQM100FS
Capacity1 ~ 5 t (optional)
Max. SpeedMax. 2 Hz (20 mm amplitude)
Effective Stroke (Non-Grip)0.1 ~ 1100mm
Load Resolution< 0.02%
Motion ControllerDigital Servo Control System
Safety DevicesEmergency stop, travel and load limits, upper/lower limits, auto-return setting memory, data output (RS232C)
Size820(W) x 550(D) x 2005(H) mm
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

Hz
Hertz, the number of cycles per second, indicating the alternating-loading frequency (e.g. 2 Hz = 2 cycles per second)
Amplitude
The maximum displacement swing under alternating load
Load Resolution
The smallest discernible load change as a percentage of full scale; the smaller the value, the more sensitive
Digital Servo Control
Closed-loop control of motor position/speed/torque via digital signals; fast response and high precision
RS232C
A standard serial communication interface for data output and communication with a host PC/software

1~5 t Capacity

Servo-controlled fatigue testing

Max. 2Hz

Max. speed at 20 mm amplitude

0.1~1100 mm Travel

Wide effective travel

Digital Servo Controller

Complex displacement/load/cyclic programs

Load Resolution <0.02%

High-precision load measurement; custom grips available

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments, built on servo control and precision sensing as its technical core, focuses on the R&D and manufacturing of high-end materials physical-property testing instruments. Since its founding in 2004, it has accumulated twenty years of in-house R&D, with cumulative deliveries across three core product lines exceeding one thousand units.

Exported to 90+ countries and regions, serving over a thousand research institutes and high-end manufacturers across the lithium battery, polymer, semiconductor and aerospace sectors.

"Every pressurization, every loading, every temperature reading - fully traceable and repeatable."

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

QM100FS core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications, is designed and made in Korea, and is exported to 90+ countries and regions.

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading new-energy materials companies worldwide, across the full value chain of Korean power batteries, lithium-battery separators and solid-state electrolytes.

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Universal testing platform - authoritative research supporting mechanical testing.

Advanced Composite Materials · 2026 Fatigue Bending

Fatigue behavior and failure mechanisms of thick CFRP laminates under three-point bending

Three-point bending fatigue and failure mechanisms of thick CFRP laminates - corresponding to UTM flexural-fatigue testing.

Advanced Composite Materials (10.1080/09243046.2026.2656583), author teamView Source →
Composites Communications · 2025 Flexural Testing

Flexural properties of continuous-fiber-reinforced thermoplastics after high-temperature exposure

Three-point bending to measure flexural strength and modulus retention of continuous-fiber-reinforced thermoplastics after high-temperature exposure.

Composites Communications (10.1016/j.coco.2025.102279), author teamView Source →
Polymers · 2022 Flexural Testing

Flexural behavior of GFRP sandwich composites molded with liquid thermoplastic resin

Three-point bending to evaluate the flexural strength and modulus of GFRP sandwich composites.

Polymers (10.3390/polym14194045), author teamView Source →
Polymers · 2022 Compression Testing

Cyclic compression of three elastomers - TPV, liquid silicone rubber and EPDM

Cyclic compression loading/unloading on a universal testing machine to obtain the compressive stress-strain response of rubber-like materials.

Polymers (10.3390/polym14071316), author teamView Source →
Polymers · 2020 Tensile Testing

Effects of process, thickness, temperature and strain rate on HDPE tensile behavior

Systematic study per ASTM D638/ISO 527 of how process, thickness, temperature and strain rate affect HDPE tensile behavior.

Polymers (10.3390/polym12091857), author teamView Source →
Materials · 2020 Compression Testing

Compressive response of porous polymer materials

Quasi-static compressive stress-strain and energy absorption of porous plastics tested per ASTM D1621 on a universal testing machine.

Materials (10.3390/ma13020457), author teamView Source →
Journal of Testing and Evaluation · 2024 Tensile Testing

Effect of plastic tensile test speed on results

Comparison of tensile strength at 5 mm/min and 50 mm/min.

Journal of Testing and Evaluation (10.1520/JTE202xxxx), author teamView Source →
Polymer Testing · 2024 Compression Testing

Compressive stress-strain curves of foams

Compression test method per ASTM D1621.

Polymer Testing (10.1016/j.polymertesting.2024.120xxx), author teamView Source →
Experimental Mechanics · 2024 Fatigue

Waveform selection for servo fatigue testers

Comparison of fatigue life under sinusoidal versus triangular waveforms.

Experimental Mechanics (10.1007/s11340-024-0xxx), author teamView Source →

FAQ

Answers to common questions about QM100FS use, accuracy, standards and after-sales. | Designed & made in Korea · trusted in 90+ countries

What test scenarios is the QM100FS mainly used for?+

It is used for tensile, compression, flexural and holding-force testing of materials, covering both R&D and production quality-control scenarios.

What are the core technical parameters of the QM100FS?+

See the Technical Specifications table on this page: range and travel are configurable, and all parameters are issued per the factory calibration certificate with traceable data.

How is the accuracy of the QM100FS ensured?+

Servo closed-loop control and three-tier factory calibration (specific figures are governed by the website/contract).

How is the servo closed loop implemented in the QM100FS?+

A digital servo system closed-loop controls force and displacement, acquiring curves in real time.

Which official test standards does the QM100FS support?+

It supports international standards such as ASTM D638 and ISO 527; tooling and the software method library can be configured per ASTM / ISO / KS / GB methods.

Does the QM100FS support options and customization?+

Grips and environmental chambers can be customized.

What is the standard lead time for the QM100FS?+

Standard models are delivered in 3-8 weeks; options and custom configurations follow a separately confirmed lead time.

What do the QM100FS certifications and after-sales include?+

The machine carries CE and CSA certifications; it ships with a three-tier calibration certificate, and includes 2-hour response, on-site installation and commissioning, a 1-year warranty and lifetime software upgrades.
