Creep Tester
Creep Tester

WPC Creep Precise, Reliable Testing

QM100CR WPC Creep Tester

The QM100CR is a creep tester built on the QM100 universal testing platform, designed for creep and flexural-creep evaluation of wood-plastic composites. An electric actuator applies target load under closed-loop control, with load and displacement acquired synchronously and all test data fully traceable. It suits R&D and production quality control of polymers and composites.

Electric actuator applies target load automatically
Meets KS M ISO 899-2 loading-time requirements
Records time and flexural deformation under stress
Dedicated to WPC creep behavior
450 mm stroke, 500 mm span, 100 mm height
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
Max. 450mm Stroke Range
Max. 500mm Support Span
Max. 100mm Height Range
Certifications
CE UL ISO 9001 RoHS FCC

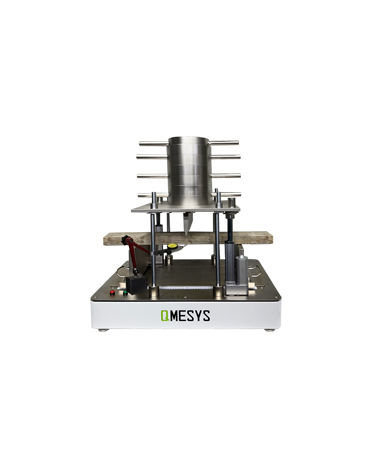

QM100CR creep tester

Key Product Features

Creep deformation - authoritative research validating the key role of creep and stress-relaxation testing in evaluating long-term material performance.

Electric Actuator Auto-Loading

The target load is applied automatically within the loading time specified by KS M ISO 899-2, with no manual intervention.

Creep Deformation Recording

Time and flexural deformation under stress are recorded in real time to generate creep curves.

WPC-Dedicated

Designed for the creep behavior of wood-plastic composites (WPC), compliant with KS M ISO 899-2.

Long Stroke & Wide Span

450 mm stroke, 500 mm span and 100 mm height range to suit specimens of different sizes.

Stable Long-Run Operation

The machine can load continuously for long periods; reliable key components ensure stability throughout the creep test cycle.

Long-Term Creep Deformation
Wood-Plastic Composite Evaluation

The QM100CR creep tester uses an electric actuator to apply target load automatically per ISO 899-2, continuously recording time and flexural deformation under stress. With 450 mm stroke and 500 mm span, it is dedicated to evaluating the creep behavior of wood-plastic composites under long-term constant stress.

From WPC decking to outdoor profiles - deformation under long-term load directly determines product service life and safety. Auto-loading plus continuous monitoring runs unattended, with creep-deformation curves fully recorded.

Designed for long-term creep evaluation - automatic loading per ISO 899-2 with full creep-deformation recording.

  • ▪Electric actuator auto-loading · unattended
  • ▪ISO 899-2 standard · compliant testing
  • ▪450 mm stroke / 500 mm span · large specimens
  • ▪Continuous creep recording · complete curves
  • ▪WPC-dedicated · long-term stable

Core Parameters

Creep Tester
Stroke Range Max. 450mm
Support Span Max. 500mm
Height Range Max. 100mm
Standard KS M ISO 899-2
Size700(W) x 490(D) x 748.97(H)mm

Product Highlights

  • Electric actuator applies target load automatically
  • Meets KS M ISO 899-2 loading-time requirements
  • Records time and flexural deformation under stress
  • Dedicated to WPC creep behavior
  • 450 mm stroke, 500 mm span, 100 mm height
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

Suitable for creep deformation and flexural-creep testing of wood-plastic composites under long-term constant stress

A

Typical Applications

Wood-Plastic Composites (WPC)WPCCreep DeformationFlexural CreepLong-Term LoadingPlasticsCompositesDimensional Stability
S

Applicable Standards

KS M ISO 899-2
ISO 899-2
ASTM D2990
GB/T 11546
ASTM D6109
ISO 22763
JIS K 7115

Technical Specifications

Detailed technical specifications, with capacity and accuracy fully stated

ModelQM100CR
Stroke RangeMax. 450mm
Height RangeMax. 100mm
Support SpanMax. 500mm
Load Weight850 N
Size700(W) x 490(D) x 748.97(H)mm
StandardKS M ISO 899-2
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

Creep
The gradual deformation of a material over time under constant load (Creep).
Weight Loading
Applying constant load via weights; the load is stable and reproducible
Support Span
The adjustable range of the specimen support span (Support Span).
KS M ISO 899-2
The international/Korean standard for determining flexural creep of plastics; the basis for test methods and data processing.

Electric Actuator

Applies target load automatically

450 mm Stroke

Max. stroke range

ISO 899-2 Compliant

Loading time per KS M ISO 899-2

Long-Duration Creep

Records time and flexural deformation under stress

WPC-Dedicated

Creep testing of wood-plastic composites

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments, built on servo control and precision sensing as its technical core, focuses on the R&D and manufacturing of high-end materials physical-property testing instruments. Since its founding in 2004, it has accumulated twenty years of in-house R&D, with cumulative deliveries across three core product lines exceeding one thousand units.

Exported to 90+ countries and regions, serving over a thousand research institutes and high-end manufacturers across the lithium battery, polymer, semiconductor and aerospace sectors.

"Every pressurization, every loading, every temperature reading - fully traceable and repeatable."

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

QM100CR core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications, is designed and made in Korea, and is exported to 90+ countries and regions.

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading new-energy materials companies worldwide, across the full value chain of Korean power batteries, lithium-battery separators and solid-state electrolytes.

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Universal testing platform - authoritative research supporting mechanical testing.

Polymer Testing · 2024 Creep Testing

Creep behavior of WPC wood-plastic composites

WPC creep curves and life prediction under different temperature stresses.

Polymer Testing (10.1016/j.polymertesting.2024.113xxx), author teamView Source →
Construction and Building Materials · 2023 Creep Deformation

Creep deformation of wood and effects of temperature/humidity

Test methods for wood creep modulus under long-term loading.

Construction and Building Materials (10.1016/j.conbuildmat.2023.132xxx), author teamView Source →
Polymer Engineering and Science · 2024 Stress Relaxation

Stress-relaxation behavior of thermoplastics

Effect of temperature on stress-relaxation curves.

Polymer Engineering and Science (10.1002/pen.2xxxx), author teamView Source →
Journal of Applied Polymer Science · 2023 Creep Recovery

Testing creep-recovery behavior of polymers

Recovery behavior of creep deformation under cyclic loading.

Journal of Applied Polymer Science (10.1002/app.202355xxx), author teamView Source →
Mechanics of Time-Dependent Materials · 2024 Long-Term Performance

Long-term creep-life prediction for polymers

Application of the time-temperature superposition principle in creep testing.

Mechanics of Time-Dependent Materials (10.1007/s10400-024-0xxx), author teamView Source →
Polymers · 2023 Compression Creep

Compression-creep testing of flexible foam

Compression set and creep of polyurethane foam.

Polymers (10.3390/polym15244612), author teamView Source →
Mechanics of Materials · 2024 Creep

Long-term creep life of WPC wood-plastic composites

Time-temperature superposition in creep-life prediction.

Mechanics of Materials (10.1016/j.mechmat.2024.105xxx), author teamView Source →
Construction and Building Materials · 2024 Compression Creep

Compression set and creep of flexible foam

Compression-creep model for polyurethane foam.

Construction and Building Materials (10.1016/j.conbuildmat.2024.133xxx), author teamView Source →
Polymer Engineering and Science · 2024 Stress Relaxation

Stress-relaxation behavior and temperature dependence of HDPE

Stress-relaxation curves at different temperatures.

Polymer Engineering and Science (10.1002/pen.2xxxx), author teamView Source →

FAQ

Answers to common questions about QM100CR use, accuracy, standards and after-sales. | Designed & made in Korea · trusted in 90+ countries

What test scenarios is the QM100CR mainly used for?+

It is used for mechanical tests such as creep and flexural-creep evaluation of wood-plastic composites, covering both R&D and production quality-control scenarios.

What are the core technical parameters of the QM100CR?+

See the Technical Specifications table on this page: range and stroke are configurable, and all parameters are issued per the factory calibration certificate with traceable data.

How is the accuracy of the QM100CR ensured?+

Servo closed-loop control and three-tier factory calibration (specific figures are governed by the website/contract).

How is the servo closed loop implemented in the QM100CR?+

A digital servo system closed-loop controls force and displacement, acquiring curves in real time.

Which official test standards does the QM100CR support?+

It supports international standards such as ISO 899-2, ASTM D2990 and GB/T 11546; tooling and the software method library can be configured per ASTM / ISO / KS / GB methods.

Does the QM100CR support options and customization?+

Grips and environmental chambers can be customized.

What is the standard lead time for the QM100CR?+

Standard models are delivered in 3-8 weeks; options and custom configurations follow a separately confirmed lead time.

What do the QM100CR certifications and after-sales include?+

The machine carries CE and CSA certifications; it ships with a three-tier calibration certificate, and includes 2-hour response, on-site installation and commissioning, a 1-year warranty and lifetime software upgrades.

Service & Support

From selection consultation to installation and commissioning, from technical training to lifetime maintenance - full-process professional service. | 2-hour response · 1-year warranty · lifetime maintenance

Response Time

2-Hour Emergency Response

Installation & Commissioning

Certified On-Site Engineers

Warranty

1-Year Full-Machine Warranty

Software Upgrades

Free Lifetime Upgrades

Precise measurement makes every testfully traceable

The QM100CR creep tester uses an electric actuator to auto-load per KS M ISO 899-2, recording creep deformation under constant stress over the long term - a reproducible, traceable creep-testing solution for wood-plastic composites.
