Testing Machine Accessories

Foot-pedal Air-over-Hydraulic Booster Pump
QM900 Automatic Pressurization Accessory

Name: HH-010
Brand: Br&Qmesys

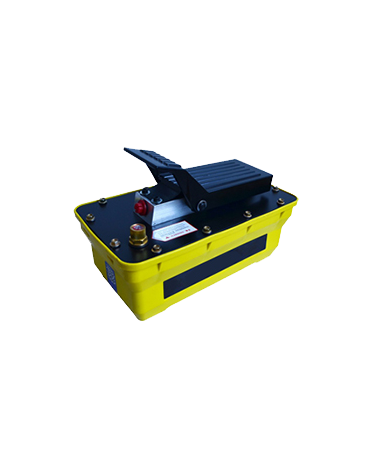

HH-010 Foot-pedal Air-over-Hydraulic Booster Pump

The HH-010 is a foot-pedal air-over-hydraulic booster pump accessory for the QM900 series mini hot press, replacing the manual pump to deliver automatic pressurization and pressure holding. It requires less effort than traditional manual pumping; pressurization speed is adjustable via an air regulator, and a simple locking pin makes pressure holding easy.

The air booster pump delivers stable, adjustable output pressure, replacing the manual hydraulic pump to reduce hand-operated pressure fluctuation and ensure the repeatability of the QM900 series hot press pressurization process.

Replacing the manual hydraulic pump, it provides adjustable, stable air pressure for the QM900S/M/L hot press, suiting lamination and molding processes that require uniform pressure.

Foot-pedal automatic pressurization

Adjustable pressurization speed

Simple locking pin for pressure holding

3~8 bar air supply

Request a Quote & Technical Proposal Download Technical Resources

✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide

2.4 L (usable capacity: 2.3 L) Capacity

3~8 bar Air Supply

3/8 NPT Oil Port

Pump Configuration

Foot-pedal Control 3~8 bar air source 2.4L Oil Tank 3/8 NPT Oil Port Requires air compressor

Certifications

CE UL ISO 9001 RoHS FCC

Key Product Features

Lab accessories - authoritative research validating the key role of auxiliary equipment in test accuracy and efficiency.

Foot-pedal Operation

Pressurization is foot-pedal controlled, leaving both hands free to position and adjust the specimen for efficient operation.

Adjustable pressurization speed

Pressurization speed is freely adjusted via an air regulator to suit different process requirements.

Convenient Pressure Holding

Equipped with a simple locking-pin accessory to easily maintain pressure without repeated manual pumping.

Air-Powered

Compressed-air-driven pressurization is clean, oil-free and smooth, ideal for laboratory environments.

Safety Interlock

Hands-busy operation and safety guarding prevent accidental pressurization, ensuring operator safety.

Foot-pedal Air-over-Hydraulic Booster Pump
Automatic Pressurization Accessory for Hot Presses

The HH-010 is a foot-pedal air-over-hydraulic booster pump for the QM900 series mini hot press. Compared with a manual pump it requires less effort and makes pressure holding easier, maintaining the required pressure without repeated manual pumping. Pressurization speed is adjusted via an air regulator and pressure is held by a locking-pin accessory. It must be used with an air compressor or air source at a supply pressure of 3~8 bar.

Hot-press testing requires stable pressure to be held for several minutes; a manual pump demands repeated, laborious strokes and causes pressure fluctuation. The foot-pedal air-over-hydraulic booster connects to an air source to build pressure automatically, frees both hands via foot control, and locks pressure with a holding pin - an upgrade accessory that improves the operating efficiency of laboratory hot presses.

An upgrade accessory for hot presses - foot-pedal air-over-hydraulic boost plus a holding pin, delivering automatic, effortless and stable pressurization.

▪3~8 bar air-driven · air-over-hydraulic intensification
▪Foot-pedal control · hands-free operation
▪Air regulator · adjustable pressurization speed
▪Locking-pin pressure holding · stable pressure
▪QM900 series hot press · upgrade accessory

Core Parameters

Air-over-Hydraulic Booster Pump Accessory

Supply Pressure 3~8 bar

Oil Tank Capacity 2.4 L (usable 2.3 L)

Oil Port Specification 3/8 NPT

Weight6.9 kg

MaterialHigh-grade alloy steel / stainless steel

Product Highlights

Foot-pedal automatic pressurization
Adjustable pressurization speed
Simple locking pin for pressure holding
3~8 bar air supply
Designed & Made in Korea
Exported to 90+ Countries Worldwide
1-Year Warranty, Lifetime Maintenance

Typical Applications & Compatible Models

A pressurization accessory for the QM900 series mini hot press that improves operating efficiency.

Typical Applications

QM900SQM900MQM900LMini Hot PressAutomatic Pressurization

Compatible Models / Installation Notes

QM900S

QM900M

3~8 bar

2.4L (usable 2.3L)

Foot-pedal / line connection

Requires air compressor

ASTM D638

Technical Specifications

Detailed technical specifications of the HH-010 foot-pedal air-over-hydraulic booster pump (for use with the QM900 series).

Model	HH-010
Supply Pressure	3~8 bar
Oil Tank Capacity	2.4 L (usable 2.3 L)
Oil Port Specification	3/8 NPT
Overall Dimensions (W×D×H)	315×175×205 mm
Weight	6.9 kg
Compatible Models	QM900S, QM900M, QM900L
Power Supply	AC 220V 50/60Hz
Operating Environment	10-35°C, ≤80%RH
Safety Protection	Overload Protection / Emergency Stop

Glossary

Air-over-Hydraulic Booster Pump: An air-driven pump that uses compressed air to drive hydraulic oil for high-pressure pressurization.
Foot-pedal Control: A foot pedal that frees both hands to position the specimen while controlling pressurization.
3~8 bar air supply: The compressed-air pressure range required for operation.
2.4L Oil Tank: Usable capacity 2.3 L, meeting the pressurization needs of the QM900 series.
3/8 NPT Oil Port: Hydraulic interface specification, compatible with the QM900 system.

Foot-pedal Automatic Pressurization

Replaces the manual pump; both hands are free to handle the specimen.

3~8 bar air supply

2.4L Oil Tank

Usable 2.3 L, meeting QM900 pressurization needs.

Adjustable pressurization speed

Pressurization speed is adjusted via an air regulator.

Compatible with QM900S/M/L

Paired with the full QM900 line of mini hot presses.

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments, built on servo control and precision sensing as its technical core, focuses on the R&D and manufacturing of high-end materials physical-property testing instruments. Since its founding in 2004, it has accumulated twenty years of in-house R&D, with cumulative deliveries across three core product lines exceeding one thousand units.

Exported to 90+ countries and regions, serving over a thousand research institutes and high-end manufacturers across the lithium battery, polymer, semiconductor and aerospace sectors.

"Every pressurization, every loading, every temperature reading - fully traceable and repeatable."

0+years Years of R&D Experience

0+ Countries & Regions

0+patents In-House Patents

Global Patents & Quality Certifications

HH-010 core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications, is designed and made in Korea, and is exported to 90+ countries and regions.

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE European Certification

Meets EU CE safety standards; ready for the European market

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading new-energy materials companies worldwide, across the full value chain of Korean power batteries, lithium-battery separators and solid-state electrolytes.

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

Toray

Japanese materials giant; a global quality benchmark.

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Air-over-hydraulic boost for the QM900 mini hot press - authoritative research supporting hot-press pressurization process consistency.

Measurement Science and Technology · 2024 Vibration Isolation

Design of vibration-isolation tables for laboratory precision instruments

Effect of active/passive vibration isolation on balance repeatability.

Measurement Science and Technology (10.1088/1361-6501/adxxx), author teamView Source →

Accreditation and Quality Assurance · 2023 Specimen Mold

Dimensional accuracy control of standard specimen molds

Effect of mold tolerances on the repeatability of mechanical specimens.

Accreditation and Quality Assurance (10.1007/s00769-023-0xxx), author teamView Source →

Journal of Laboratory Automation · 2024 Test Frame

Automated design of push-pull test frames

Application of motorized lift frames in materials testing.

Journal of Laboratory Automation (10.1177/2211068224xxxx), author teamView Source →

Polymer Testing · 2023 Hot Press Accessory

Safety guarding and operating efficiency of hot presses

Safety light curtains for guarding hot-press testing.

Polymer Testing (10.1016/j.polymertesting.2023.110xxx), author teamView Source →

Journal of Testing and Evaluation · 2024 Air-over-Hydraulic Boost

Pressure stability of air-over-hydraulic booster systems

Pressure pulsation of booster pumps in high-pressure testing.

Journal of Testing and Evaluation (10.1520/JTE202xxxx), author teamView Source →

Plastics Engineering · 2023 Workbench

Design of dedicated workbenches for testing machines

How vibration-isolation workbenches improve test accuracy.

Plastics Engineering (10.1002/pen.2xxxx), author teamView Source →

Journal of Laboratory Automation · 2024 Vibration Isolation

Design of active vibration-isolation systems for balance tables

Effect of active vibration isolation on balance repeatability.

Journal of Laboratory Automation (10.1177/2211068224xxxx), author teamView Source →

Polymer Testing · 2024 Safety Light Curtain

Safety light-curtain guarding design for hot presses

Calculation of safety distance and response time.

Polymer Testing (10.1016/j.polymertesting.2024.120xxx), author teamView Source →

Measurement · 2024 Air-over-Hydraulic Boost

Pressure pulsation suppression in air-over-hydraulic booster systems

Effect of accumulators on pressure stability.

Measurement (10.1016/j.measurement.2024.117xxx), author teamView Source →

Related Products

Products and accessories from the same line, building a complete testing solution.

FAQ

Answers to common questions about HH-010 purchasing, delivery and service.

What is the HH-010 air-over-hydraulic booster pump mainly used for? +

As an optional pneumatic pressurization source for the QM900S/M/L mini hot press, it replaces the manual hydraulic pump to deliver foot-pedal automatic pressurization, improving pressurization repeatability and experimental efficiency.

What are the key specifications of the HH-010? +

Per the specification table: oil tank capacity 2.4L(usable 2.3 L), supply pressure 3~8 bar, max. air pressure 10kgf/cm², oil port 3/8 NPT, dimensions 315×175×205 mm, weight 6.9 kg.

How does it work? +

Foot-pedal air-over-hydraulic boost: driven by an external 3~8 bar compressed-air supply, it outputs Max. 10 kgf/cm² hydraulic pressure for smooth, repeatable pressurization with hands-free operation.

Which hot-press models is it compatible with? +

Compatible with the full QM900 line of mini heated-platen testers: QM900S, QM900M and QM900L.

How do you build a complete workstation? +

Paired with the AP-90 safety guard enclosure and AP-90T dedicated workbench, it forms a complete QM900 station spanning safety guarding to automatic pressurization.

How are options configured? +

Ordered together with the QM900 main unit; the hydraulic interface and tubing are matched to the model.

What is the lead time for standard models? +

Standard-model lead time is 3-8 weeks.

How is after-sales service secured? +

Full-machine 1-Year Warranty, 2 hours emergency response, on-site certified engineers and lifetime software upgrades.
