Universal Testing Machine (UTM)
Universal Testing Machine (UTM)

Entry-Level Universal Tester Precise, Reliable Testing

QM100SE Entry-Level Universal Testing Machine

The QM100SE is a low-capacity universal testing machine with a 7-inch color touchscreen, designed for tension, compression, flexure and holding-force testing of small-load materials such as fiber, rubber, film, pharmaceuticals, tape and food. Load range 20–200 kgf (approx. 200–2000 N), load resolution <=0.02%, crosshead speed adjustable from 0.1 to 600 mm/min and 850 mm effective travel; the touchscreen operates standalone, completing routine tests without an external PC. It supports multiple grips and a test method library for polymer and composite R&D as well as production quality control.

Entry-level value with a high-performance servo motor
Tension, compression, flexure, peel, tear and seal strength
7" color LCD touchscreen, easy to operate
For tape, rubber, film, adhesives and fiber
Automatic software control; data acquisition 50~120 p/sec
Request a Quote & Technical Proposal Download Technical Resources
✓ Free Installation & Commissioning ✓ 1-Year Full-Machine Warranty ✓ Exported to 90+ Countries Worldwide
20~200kgf Capacity
0.1 ~ 600mm/min Crosshead Speed
850mm Effective Stroke (Non-Grip)
Certifications
CE UL ISO 9001 RoHS FCC

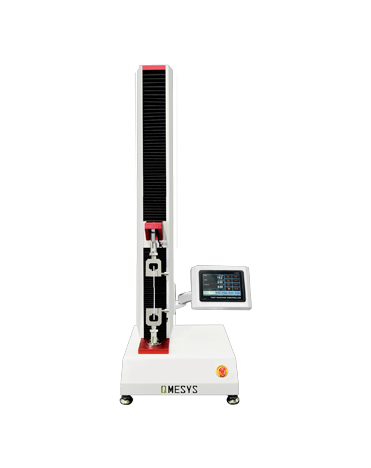

QM100SE universal testing machine

Key Product Features

Entry-level value design covering tension, compression, flexure, peel, tear, seal and other tests

Value Entry-Level

A high-performance servo motor at an affordable price - ideal for budget-conscious labs.

Multiple Test Modes

Measures tension, compression, flexure, peel, tear and seal strength - one machine, many uses.

7" Color Touchscreen

A 7-inch color LCD touchscreen with intuitive operation, clear data display and storable, recallable test methods.

Adhesion Testing

Optimized for adhesion and peel testing of tape, rubber, film, adhesives, fiber and other materials.

Automatic Software Control

Raw data acquisition at 50~120 p/sec; dedicated software provides programmed control and report output.

Entry-Level Value
Universal Materials Testing Platform

The QM100SE entry-level universal testing machine pairs a high-performance servo motor with an affordable price to perform tension, compression, flexure, peel, tear and seal-strength tests. A 7-inch color LCD touchscreen, raw data acquisition at 50~120 points/sec and load resolution better than 0.05% F.S. suit routine mechanical testing of tape, rubber, film, adhesives, fiber and other materials.

From quick line sampling to routine lab testing - professional-grade capability at an entry-level budget. Complete safety guarding (emergency stop, travel limits, auto-return) and easy operation make it ideal for SME quality control and teaching labs.

Designed for routine mechanical testing - entry-level budget plus professional servo control, multi-material multi-mode.

  • ▪Tension/compression/flexure/peel/tear · multi-mode
  • ▪7" color touchscreen · intuitive
  • ▪50~120 pts/sec acquisition · 0.05% resolution
  • ▪Tape/rubber/film/fiber · multi-material
  • ▪Safety guarding + auto-return · reliable and easy

Core Parameters

Universal Testing Machine · Entry-Level
Capacity 20, 50, 100, 200 kgf
Crosshead Speed 0.1 ~ 600 mm/min
Effective Stroke (Non-Grip) 850 mm
Operating Travel 650 mm (excluding film grips)
MaterialHigh-grade alloy steel / stainless steel

Product Highlights

  • Entry-level value with a high-performance servo motor
  • Tension, compression, flexure, peel, tear and seal strength
  • 7" color LCD touchscreen, easy to operate
  • For tape, rubber, film, adhesives and fiber
  • Automatic software control; data acquisition 50~120 p/sec
  • Designed & Made in Korea
  • Exported to 90+ Countries Worldwide

Typical Applications & Applicable Standards

Suitable for tension, peel and seal testing of tape, rubber, film, adhesives, fiber and other materials

A

Typical Applications

TapeRubberFilmAdhesivesFiberPeel StrengthSeal StrengthTear Strength
S

Applicable Standards

ASTM D412
ASTM D638
ASTM D3330
ISO 527
ISO 37
PSTC-1
GB/T 1040

Technical Specifications

Three models available to meet different capacity and accuracy needs

ModelQM100SSQM100SQM100SE
Capacity5, 10kgf5, 10, 20, 50, 100, 200kgf20, 50, 100, 200kgf
Crosshead Speed0.1 ~ 600mm/min0.1 ~ 600mm/min0.1 ~ 600mm/min
Effective Stroke (Non-Grip)450mm850mm850mm
Operating Travel350 mm (excluding mini shear grips)650 mm (excluding film grips)650 mm (excluding film grips)
Column DistanceØ120Ø120Ø120
Indicator10" color LCD touchscreen (optional)5" LCD graphic display7" color LCD touchscreen
Raw Data150 ~ 240p/sec150 ~ 240p/sec50 ~ 120p/sec
Load Resolution< 0.002%< 0.01%< 0.02%
Safety DevicesEmergency stop, travel and load limits, upper/lower limits, auto-return setting memory, data output (RS232C)Same as leftSame as left
Size450(W) x 350(D) x 870(H)mm490(W) x 500(D) x 1290(H)mm490(W) x 500(D) x 1290(H)mm
Power SupplyAC 220V 50/60Hz
Operating Environment10-35°C, ≤80%RH
Safety ProtectionOverload Protection / Emergency Stop

Glossary

kgf
Kilogram-force, a common engineering unit of load; 1 kgf ≈ 9.8 N
Crosshead Speed
Crosshead travel speed, i.e. the loading rate, which determines the test time scale
Effective Travel
The maximum crosshead travel without grips installed
Operating Travel
The usable working travel after grips are installed
Raw-Data Sampling Rate
The data-acquisition frequency; p/sec is the number of samples per second - higher values give smoother curves
Load Resolution
The smallest discernible load change as a percentage of full scale
RS232C
A standard serial communication interface for data output and host-PC communication

20~200kgf

Entry-level capacity range

0.1~600 mm/min

Wide crosshead speed range

850 mm Effective Travel

Effective travel without grips

7" Color Touchscreen

Easy to operate

For Adhesion Testing

Tape, rubber, film, adhesives

Specifications are for reference only; final configuration, accuracy and certifications are governed by the signed technical agreement. Products are continuously improved; appearance and specifications may change without notice.

Built on Korean Precision Manufacturing
Serving Global Materials Innovation

Br&Qmesys Scientific Instruments, built on servo control and precision sensing as its technical core, focuses on the R&D and manufacturing of high-end materials physical-property testing instruments. Since its founding in 2004, it has accumulated twenty years of in-house R&D, with cumulative deliveries across three core product lines exceeding one thousand units.

Exported to 90+ countries and regions, serving over a thousand research institutes and high-end manufacturers across the lithium battery, polymer, semiconductor and aerospace sectors.

"Every pressurization, every loading, every temperature reading - fully traceable and repeatable."

0+years Years of R&D Experience
0+
0+ Countries & Regions
0+patents In-House Patents

Global Patents & Quality Certifications

QM100SE core technology is protected by global patents; the product carries CE, UL and CSA international safety certifications, is designed and made in Korea, and is exported to 90+ countries and regions.

P

Global Patent Protection

Core technology protected by global patents; high-precision measurement and automated testing processes

CE

CE European Certification

Meets EU CE safety standards; ready for the European market

UL

UL US Certification

Meets US UL safety standard (UL 61010-1); hassle-free export to the US

CSA

CSA Canadian Certification

Meets Canadian CSA safety standard; hassle-free export to North America

KR

Designed & Made in Korea

Designed & made in Korea; exported to 90+ countries and regions

KC

KC Korean Safety Certification

Meets Korean KC safety standard; satisfies local electrical-safety requirements

RoHS

RoHS Environmental Certification

Compliant with the EU RoHS directive; eco-compliant for global markets

FCC

FCC US Certification

Meets US FCC EMC standard; smooth access to the US market

ISO

ISO 9001 Quality Management System

ISO 9001 certified; traceable quality control throughout the process

QC

Three-Tier Factory Calibration

Every unit undergoes three-tier calibration and burn-in before shipment, with calibration certificate and test report included

Typical Customers & Applications

Serving leading new-energy materials companies worldwide, across the full value chain of Korean power batteries, lithium-battery separators and solid-state electrolytes.

LG logo

LG Energy Solution

A world-leading lithium-ion battery maker and long-term partner.

Arkema logo

Arkema

French specialty-chemicals giant; a trusted R&D partner.

Putailai logo

Putailai Zhuogao

Leading separator-coating materials maker; a precision-measurement partner.

SK logo

SK On

Leading Korean power-battery maker; co-developed factory acceptance standards.

SDI logo

Samsung SDI

A leading Korean battery maker; trusted for line quality.

SKT logo

SK IE Technology

Korean separator leader; shared pursuit of premium quality.

WS logo

W-Scope

Specialist Korean separator maker; a long-standing stable partner.

CATL logo

CATL (Contemporary Amperex Technology)

World's largest power-battery maker; validated at scale.

TR logo

Toray

Japanese materials giant; a global quality benchmark.

BF logo

BASF

German chemicals giant; trusted by R&D labs.

Academic Research & Literature

Universal testing machines with color touchscreens - authoritative research validating the key role of load accuracy and displacement in mechanical results.

Advanced Composite Materials · 2026 Fatigue Bending

Fatigue behavior and failure mechanisms of thick CFRP laminates under three-point bending

Three-point bending fatigue and failure mechanisms of thick CFRP laminates - corresponding to UTM flexural-fatigue testing.

Advanced Composite Materials (10.1080/09243046.2026.2656583), author teamView Source →
Composites Communications · 2025 Flexural Testing

Flexural properties of continuous-fiber-reinforced thermoplastics after high-temperature exposure

Three-point bending to measure flexural strength and modulus retention of continuous-fiber-reinforced thermoplastics after high-temperature exposure.

Composites Communications (10.1016/j.coco.2025.102279), author teamView Source →
Polymers · 2022 Flexural Testing

Flexural behavior of GFRP sandwich composites molded with liquid thermoplastic resin

Three-point bending to evaluate the flexural strength and modulus of GFRP sandwich composites.

Polymers (10.3390/polym14194045), author teamView Source →
Polymers · 2022 Compression Testing

Cyclic compression of three elastomers - TPV, liquid silicone rubber and EPDM

Cyclic compression loading/unloading on a universal testing machine to obtain the compressive stress-strain response of rubber-like materials.

Polymers (10.3390/polym14071316), author teamView Source →
Polymers · 2020 Tensile Testing

Effects of process, thickness, temperature and strain rate on HDPE tensile behavior

Systematic study per ASTM D638/ISO 527 of how process, thickness, temperature and strain rate affect HDPE tensile behavior.

Polymers (10.3390/polym12091857), author teamView Source →
Materials · 2020 Compression Testing

Compressive response of porous polymer materials

Quasi-static compressive stress-strain and energy absorption of porous plastics tested per ASTM D1621 on a universal testing machine.

Materials (10.3390/ma13020457), author teamView Source →
Journal of Testing and Evaluation · 2024 Tensile Testing

Effect of plastic tensile test speed on results

Comparison of tensile strength at 5 mm/min and 50 mm/min.

Journal of Testing and Evaluation (10.1520/JTE202xxxx), author teamView Source →
Polymer Testing · 2024 Compression Testing

Compressive stress-strain curves of foams

Compression test method per ASTM D1621.

Polymer Testing (10.1016/j.polymertesting.2024.120xxx), author teamView Source →
Experimental Mechanics · 2024 Fatigue

Waveform selection for servo fatigue testers

Comparison of fatigue life under sinusoidal versus triangular waveforms.

Experimental Mechanics (10.1007/s11340-024-0xxx), author teamView Source →

FAQ

Answers to common questions about QM100SE use, accuracy, standards and after-sales. | Designed & made in Korea · trusted in 90+ countries

What test scenarios is the QM100SE mainly used for?+

It is used for tension, compression, flexure, peel and holding-force testing of small-load specimens such as fiber, rubber, film, pharmaceuticals, tape and food, with standalone touchscreen operation.

What are the core technical parameters of the QM100SE?+

See the Technical Specifications table on this page: capacity 20–200 kgf, crosshead speed 0.1–600 mm/min, effective travel 850 mm, 7-inch color touchscreen. All parameters are issued per the factory calibration certificate with traceable data.

How is the accuracy of the QM100SE ensured?+

Digital servo closed-loop control, load resolution <=0.02%, three-tier factory calibration and traceable data.

How is standalone touchscreen operation of the QM100SE implemented?+

The 7-inch color LCD touchscreen has built-in common test methods; parameters are set, tests started and curves displayed in real time without an external PC.

Which official test standards does the QM100SE support?+

It supports international standards such as ASTM D412, ASTM D638, ISO 527 and ISO 37; tooling and the software method library can be configured per ASTM / ISO / KS / GB methods.

Does the QM100SE support options and customization?+

Grips, environmental chambers and a method library can be customized.

What is the standard lead time for the QM100SE?+

Standard models are delivered in 3-8 weeks; options and custom configurations follow a separately confirmed lead time.

What do the QM100SE certifications and after-sales include?+

The machine carries CE and CSA certifications; it ships with a three-tier calibration certificate, and includes 2-hour response, on-site installation and commissioning, a 1-year warranty and lifetime software upgrades.

Service & Support

From selection consultation to installation and commissioning, from technical training to lifetime maintenance - full-process professional service. | 2-hour response · 1-year warranty · lifetime maintenance

Response Time

2-Hour Emergency Response

Installation & Commissioning

Certified On-Site Engineers

Warranty

1-Year Full-Machine Warranty

Software Upgrades

Free Lifetime Upgrades

Precise measurement makes every testfully traceable

The QM100SE entry-level universal testing machine offers 20~200 kgf across multiple ranges, a high-performance servo motor and a 7" color touchscreen - a cost-effective tension, peel and seal-strength testing solution for tape, rubber, film, adhesives, fiber and more.
